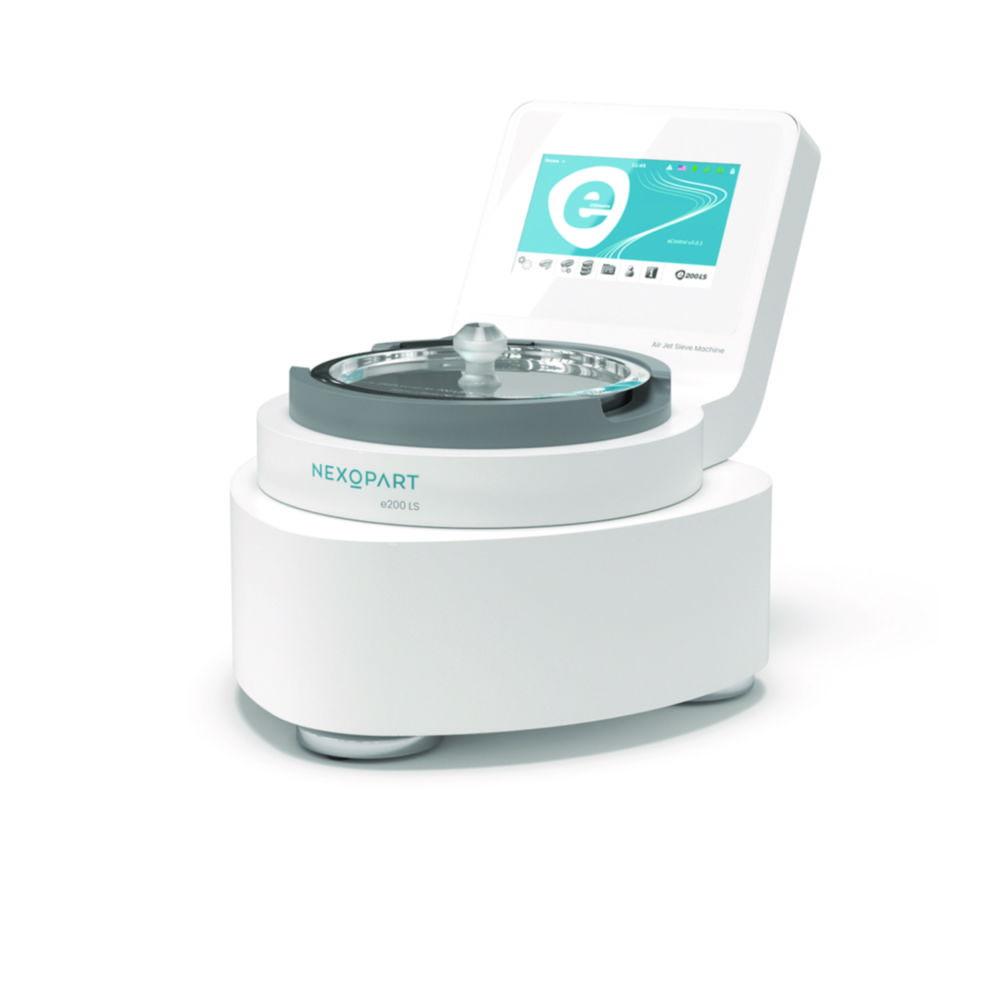

NEXOPART Air Jet Sieve Machine e200 LS eControl Security, with HMI 3.0 Screen, 90–264V, 50/60Hz, 1500–5000 Pa

The NEXOPART Air Jet Sieve Machine e200 LS with eControl Security is designed for high-precision particle size analysis in laboratory environments. Featuring a modern HMI 3.0 touch screen, it allows intuitive operation and advanced control. Operating on 90–264V at 50/60Hz, the machine delivers powerful suction with a negative pressure range of 1500–5000 Pa, ensuring reliable and efficient dry particle separation.

Key Features:

• Brand: NEXOPART
• Model: e200 LS eControl Security
• Automatic Recognition: Automatic sieve detection (RFID)
• Pressure Control: Automatic underpressure control
• Operation Controls: Simple one-touch operation
• Ease Of Use: Fast, simple evaluation of results (tabular form)
• Connectivity: Balance communication via RS-232 interface
• Sieve Management: Central parameter management of all sieves
• Automation: Automatic saving and printing
• Sieve Data Management: Sieve set management (SOP)
• Automatic Operation: Automatic backup
• Compliance: Software validation compliant with ISPE GAMP 5, FDA 21 Part 11, and EC GMP Annex 11
• Interface: HMI 3.0 touch screen
• Voltage: 90–264V; 50/60Hz
• Negative Pressure: 1500–5000 Pa
• Vacuum Cleaner Integration: External vacuum cleaner can be integrated
• Display: Display of underpressure (in Pa), sieving time, date, and time
• Pressure Monitoring: Manual underpressure control
• Application: Suitable for laboratory air jet sieving and dry particle size analysis

Scope of Supply

• Air jet sieve machine
• Software version SECURITY
• Sieve adapter
• Slotted nozzle
• Acrylic glass lid
• Suction silencer
• Hammer and brush
• Connection piece
• Power connection cable
• Operating manual

Note: Please order vacuum cleaner separately.

The NEXOPART e200 LS eControl Security Air Jet Sieve Machine combines advanced automation, precise control, and reliable performance—making it an essential tool for laboratories requiring accurate and efficient particle separation technology.

Frequently Asked Questions

1. What is the NEXOPART Air Jet Sieve Machine e200 LS eControl Security, with HMI 3.0 Screen, 90–264V, 50/60Hz, 1500–5000 Pa used for?

It is designed for high-precision particle size analysis in laboratory environments. Featuring a modern HMI 3.0 touch screen, it allows intuitive operation and advanced control. Operating on 90–264V at 50/60Hz, the machine delivers powerful suction with a negative pressure range of 1500–5000 Pa, ensuring reliable and efficient dry particle separation.

2. Is the NEXOPART Air Jet Sieve Machine e200 LS eControl Security, with HMI 3.0 Screen, 90–264V, 50/60Hz, 1500–5000 Pa suitable for laboratory air jet sieving and dry particle size analysis?

Yes. It is designed for laboratory air jet sieving and dry particle size analysis, and offers a voltage of 90–264V; 50/60Hz and a negative pressure of 1500–5000 Pa to support this kind of work.

3. What voltage and negative pressure does the NEXOPART Air Jet Sieve Machine e200 LS eControl Security, with HMI 3.0 Screen, 90–264V, 50/60Hz, 1500–5000 Pa have?

It has a voltage of 90–264V; 50/60Hz and a negative pressure of 1500–5000 Pa, and is supplied under manufacturer part number 210886500.

4. What additional detail and additional detail does the NEXOPART Air Jet Sieve Machine e200 LS eControl Security, with HMI 3.0 Screen, 90–264V, 50/60Hz, 1500–5000 Pa offer?

It offers automatic sieve detection (RFID), automatic underpressure control, simple one-touch operation and fast, simple evaluation of results (tabular form).

5. How does the NEXOPART Air Jet Sieve Machine e200 LS eControl Security with HMI 3.0 Screen 90-264V 50/60Hz 1500-5000 Pa compare with the Retsch Analysing Sieve Machine as 200 Tap, 230 V / 50 Hz, Including Noise Control Cabinet CE Conform with EasySieve Comfort?

For sieve shaker applications, the NEXOPART Air Jet Sieve Machine e200 LS eControl Security with HMI 3.0 Screen 90-264V 50/60Hz 1500-5000 Pa is differentiated by automatic recognition Automatic sieve detection (RFID) and pressure control Automatic underpressure control. The Retsch Analysing Sieve Machine as 200 Tap, 230 V / 50 Hz, Including Noise Control Cabinet CE Conform with EasySieve Comfort from Retsch is another named option in the same product category. Compare the required specifications, compatibility and workflow requirements before selection.
