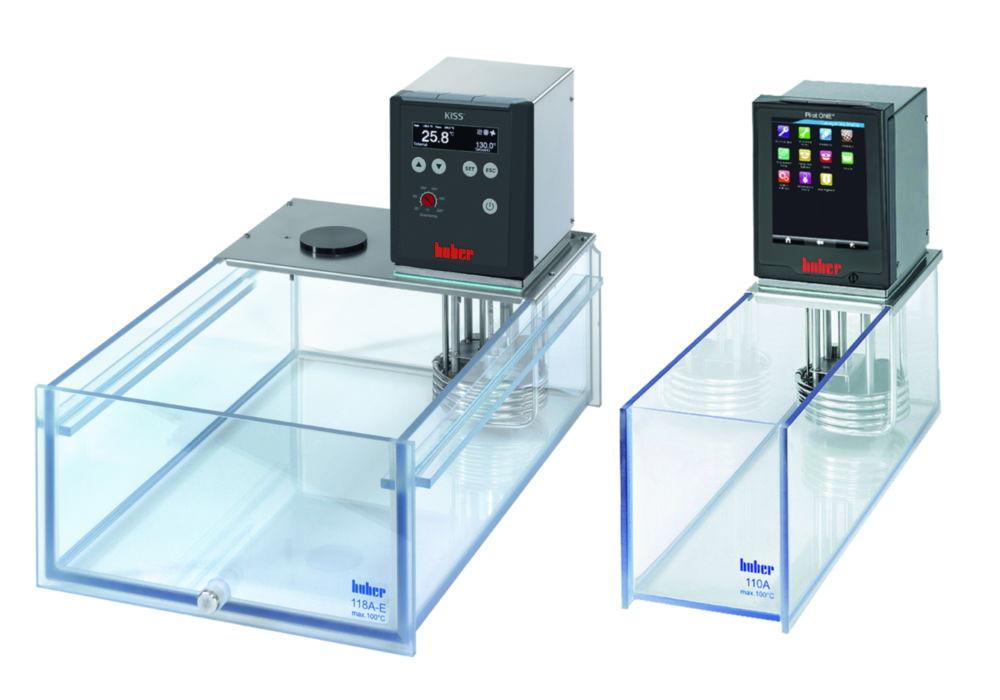

Peter Huber KISS 106A Circulation Thermostat with Polycarbonate Bath, Temperature Range: 25 To 100°C

The Peter Huber KISS 106A is a high-quality circulation thermostat designed for routine laboratory heating tasks where process visibility is essential. This model features a 6-liter transparent polycarbonate bath that is heat-resistant up to 100°C, providing a clear view of samples during temperature-sensitive experiments. Managed by the KISS (Keeping Innovation Safe & Simple) controller, the unit offers a bright OLED display and an easy-to-use 3-button interface. With a robust integrated pressure/suction pump, the KISS 106A is suitable for both internal immersion and the temperature control of external closed systems. This specific unit is designed for a broad 200-240V 1~/2~ 50/60Hz power supply, ensuring stable operation across various international voltage standards.

Key Features:

• Brand: Peter Huber
• Temperature Range: 25 to 100°C (Working range down to 15°C with optional cooling)
• Temperature Stability: High-precision thermal regulation with ±0.05 K stability according to DIN 12876
• Controller: KISS controller with large OLED display, status indicators, and intuitive menu navigation
• Heating Capacity: Variable heating power reaching 2.0 kW at 230V and 2.1 kW at 240V
• Circulation Pump: Integrated pressure and suction pump with max. delivery of 14 l/min (pressure) and 10.5 l/min (suction)
• Power Supply: 200-240V 1~/2~ 50/60Hz with a maximum current consumption of 10 A
• Bath Construction: 6-liter transparent polycarbonate bath with a 130 x 150 mm opening
• Safety Standards: Safety Class III (FL) according to DIN 12876 with adjustable overtemperature and low-level protection
• Digital Interfaces: Standard USB (Device) and RS232 interfaces for digital communication and data logging

The KISS 106A provides a compact, space-saving footprint ideal for crowded laboratory benches. It comes equipped with Huber's practice-oriented features, including M16x1 pump connections (via adapter) for external circulation. Safety is paramount, featuring a low-level sensor to prevent dry-running and an autostart function that ensures the unit resumes operation automatically after a power interruption.

Frequently Asked Questions

1. What is the main advantage of the KISS 106A's transparent bath?
The polycarbonate bath allows for full visual monitoring of your samples or test tubes while they are being heated, which is critical for many biological and chemical analyses.

2. Can I use this circulator for external temperature control?
Yes, with an optional pump adapter and M16x1 connections, the KISS 106A can be used to control the temperature of external, closed-loop applications such as refractometers or small condensers.

3. How does the 200-240V power supply affect the heating performance?
The heating power scales with the input voltage; at 200V, the output is approximately 1.5 kW, while at 240V, the unit reaches its maximum heating capacity of 2.1 kW.

4. Is it possible to reach temperatures lower than 25°C?
While the heating range starts at 25°C, you can reach temperatures as low as 15°C by using the optional cooling coil connected to a laboratory tap water supply.

5. Is this model safe to use with flammable fluids?
Yes, the KISS 106A is rated Safety Class III (FL) according to DIN 12876, meaning it includes an adjustable overtemperature limit and a low-level sensor for the safe use of flammable liquids.
