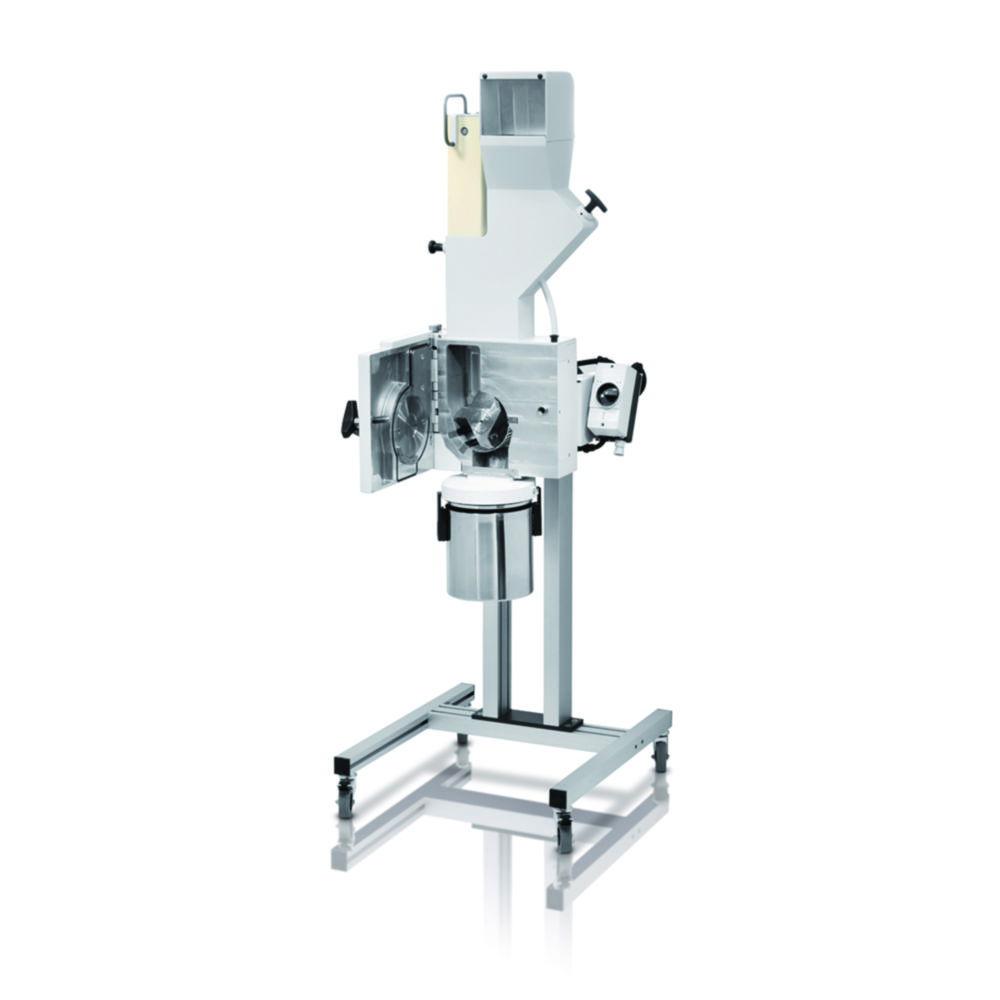

Retsch Cutting Mill SM 200 Stainless Steel, 3/N~400V 50Hz
Representative image only

Retsch Cutting Mill SM 200 Stainless Steel, 3/N~400V 50Hz

Sold by: Bishops Scientific Pvt Ltd
Available Soon
Part #: 9.739 069Manufacturer #: 20.727.0001
Estimated shipping time:Contact us via live chat or via contact us page

₹1,424,934.96

Product overview

The Retsch Cutting Mill SM 200 Stainless Steel is engineered for powerful and efficient size reduction of tough, elastic, and fibrous materials. Designed for continuous operation in laboratories and industrial environments, this cutting mill provides optimal cutting performance through its double-acting cutting bars and robust construction. The stainless steel model ensures corrosion resistance and hygiene for sensitive applications such as food, pharmaceuticals, and environmental analysis.

Key Features:

  • Brand: Retsch
  • Voltage/Frequency: 3N~ 400 V, 50 Hz
  • Material: Stainless steel housing for durability and cleanability
  • Cutting System: Double-acting cutting bars for optimum cutting effects
  • Ease of Cleaning: Quick and easy tool-free cleaning due to fold-back housing with smooth surfaces and push-fit rotor and sieve system
  • Application: Ideal for processing plastics, rubber, roots, textiles, and electronic scrap
  • Design: Built for continuous operation with high throughput

Scope of Supply:

  • Cutting mill
  • 5 L collecting receptacle
  • Base frame

Note: Please order rotor, hopper, bottom sieve and base frame separately.

The Retsch Cutting Mill SM 200 offers excellent performance and user-friendly operation, making it a reliable choice for demanding sample preparation tasks across a wide range of materials.

Product Specifications
  • HS Code #84798200
  • Depth700 mm
  • Ø rotor129.5 mm
  • Dimensions (WxDxH)582 x 700 x 1,675 mm
  • Power supply frequency50 Hz
  • Height1675 mm
  • IP codeIP 54
  • Max. feed particle size80 mm
  • Max. final fineness250 µm
  • Max. speed1500 1/min
  • Max. voltage400 V·3/N/PE
  • Nominal volume collecting vessel5000 ml
  • Power supply400 V·3/N/PE, 50 Hz
  • Rated capacity1500 W
  • Speed1,500 1/min
  • TypeSM 100
  • Type of auxiliary energyMains connection
  • Weight73 kg
  • Width582 mm
