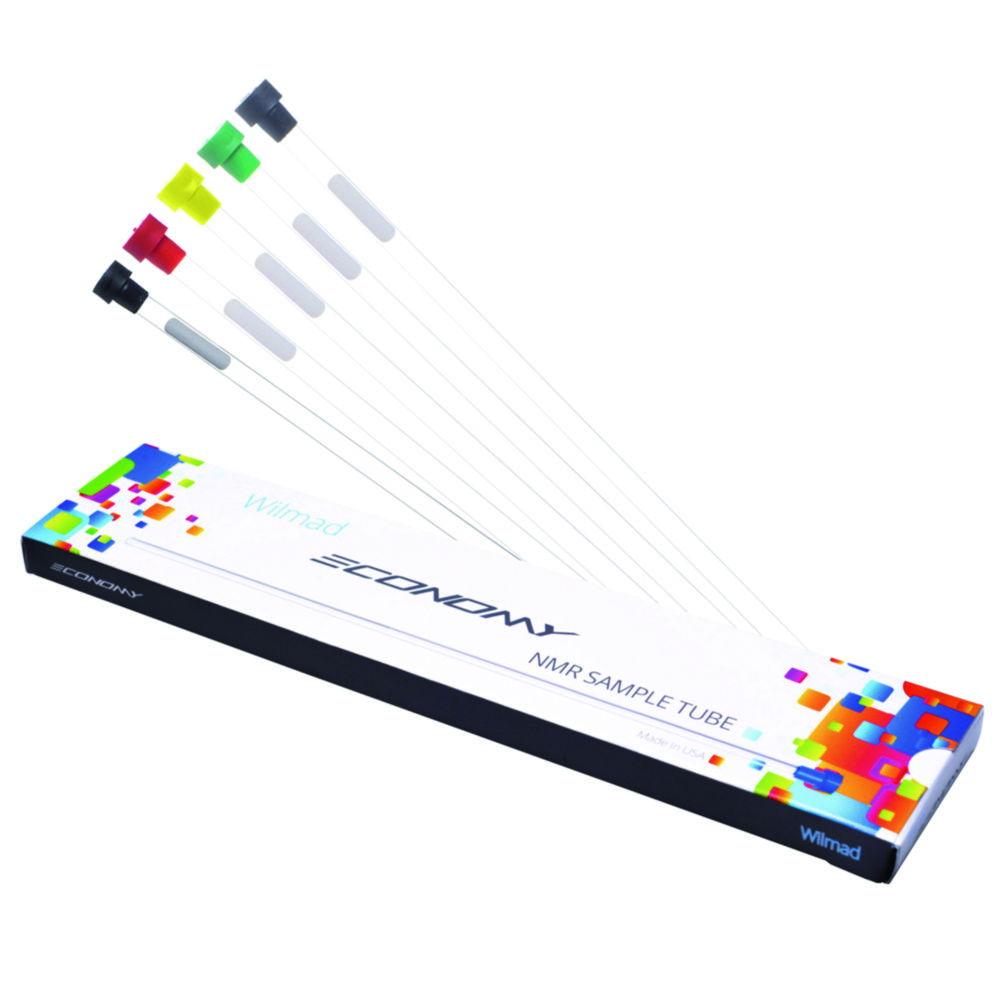

NMR Economy Sample Tube, 7 L 200Mhz, 5mm, pack of 5
Sold by: Bishops Scientific Pvt Ltd
Available Soon
Part #: 4.683 470Manufacturer #: WG-1208-7-5
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The thin walled Wilmad Economy NMR tubes are designed for routine use in all NMR spectrometers. They fit tightly in any spinner turbine and have zero NMR background. For experiments with small organic molecules (Molecular Weight ~500) at ambient temperatures. Cooling/heating of these tubes may lead to breakage.
- Made from borosilicate glass, ASTM E438 Type 1 Class B standard
- Camber and concentricity values listed are the Total Indicator Reading (TIR)
- Includes disposable caps
Product Specifications
- HS Code #70172000
- Camber25 µm
- Concentricity51 µm
- Ext. Ø4.947 mm ± 0.019
- Ext. Ø4.947 mm
- Frequency200 MHz
- Int. Ø4.1 mm
- Int. Ø4.1 mm
- Length178 mm
- MaterialBorosilicate
- Max. frequency200 MHz
- Tolerance ext. Ø0.019 mm
- Wall thickness0,43 mm
Downloads
- SP Scienceware Wildmad LabGlass 2020 NMR CatalogDownload
