2mag Magnetic Stirring System MIXdrive 1XL (+150°C), 60-2000rpm, IP66, External Control, 48 VDC
Product overview

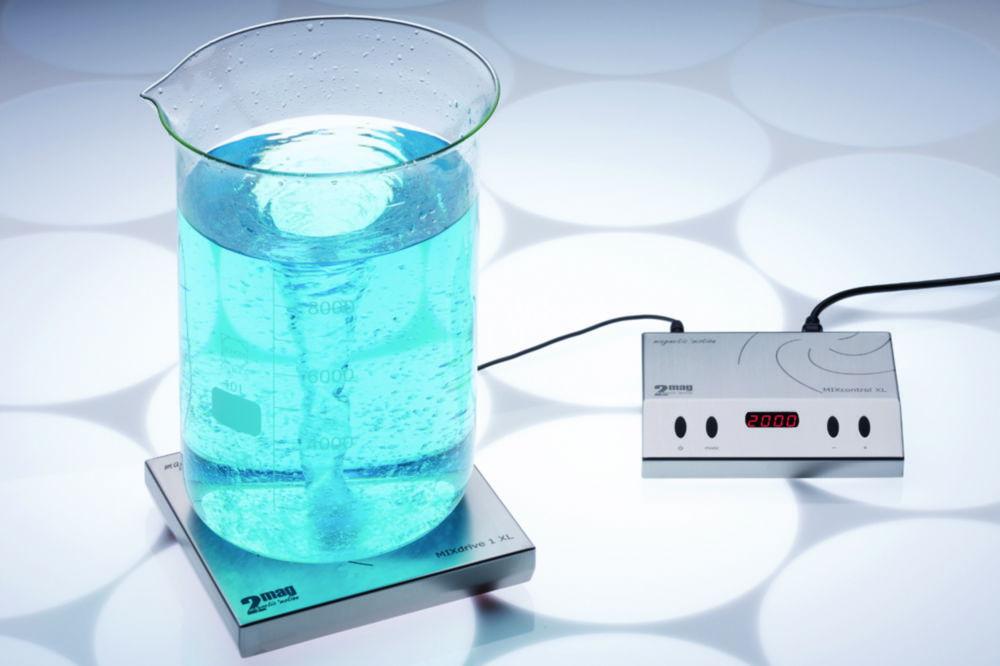

The 2mag Magnetic Stirring System MIXdrive 1XL (+150°C), 60-2000rpm, IP66, External Control, 48 VDC is designed for efficient and reliable magnetic stirring in laboratory settings. With a wide speed range of 60-2000rpm and a maximum temperature of +150°C, this stirring system provides versatility for various applications. Its IP66 rating ensures protection against dust and water, making it suitable for demanding environments. The external control feature allows for easy operation and integration into automated systems.
Key Features:
- Brand: 2mag
- Speed Range: 60-2000rpm for flexible stirring control
- Temperature Range: Up to +150°C for high-temperature applications
- IP Rating: IP66 for protection against dust and water
- External Control: Allows for easy integration into automated systems
- Power Supply: 48 VDC for reliable operation
The 2mag Magnetic Stirring System MIXdrive 1XL is an ideal solution for laboratories requiring high-performance stirring with precise control and rugged durability.
Product Specifications
- HS Code #84798200
- Depth225 mm
- Dimensions (WxDxH)225 x 225 x 38 mm
- Height38 mm
- IP codeIP 66
- Material housingStainless steel
- Max. permitted ambient temp.100 °C
- Max. relative humidity rate95 %
- Max. stirring capacity40 l
- Max. voltage24 V·DC
- Min. permitted ambient temperature5 °C
- No. of stirring positions1
- Permitted ambient temperature5 ... 100 °C
- Power supply24 V·DC
- Rated capacity20 W
- Stirring centre distances38 mm
- TypeMIXdrive 1 XL
- UNSPSC41103806
- Warranty3 years
- Weight3400 g
- Width225 mm
- With timerNo
- Manufacturer Article Number40601
