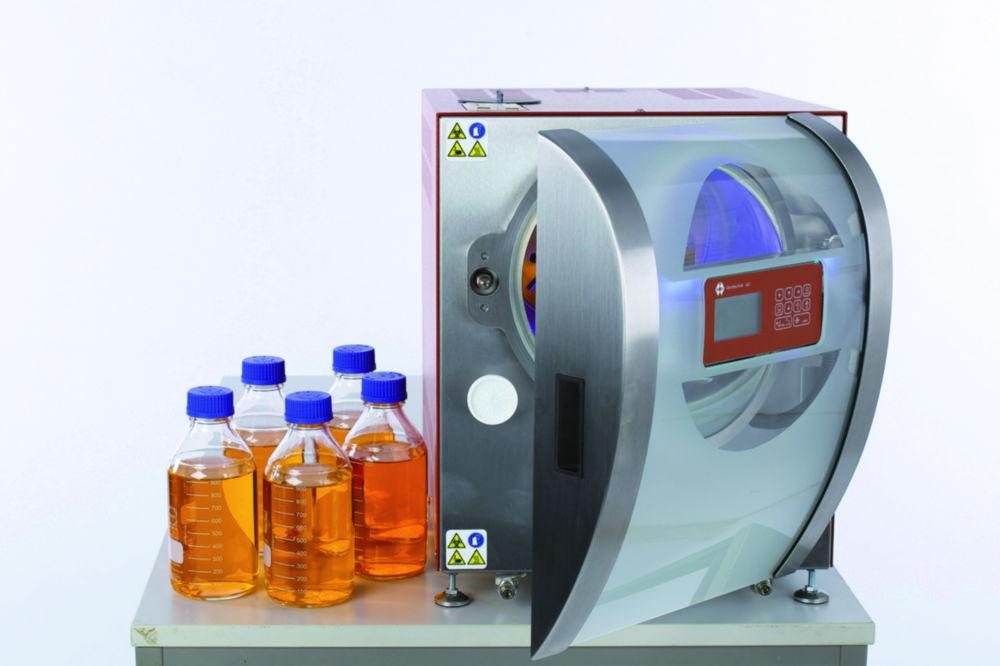

LABOKLAV 25-V Vacuum 25 Liter usable volume, bench top unit with integrated vacuum pump for fractionated
Sold by: Bishops Scientific Pvt Ltd
Available Soon
Part #: 9.842 442Manufacturer #: 21.0025.001.004
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The compact and space saving table top units of the Laboklav 25 series provides you most applications of bigger table top units:
A unique design meets innovative technical solutions:
- sterilisation of liquids in open and lightly closed vessels, also with air re-cooling system
- sterilisation of instruments, also with pre-vacuum and drying vacuum
- waste sterilisation at 134 °C
- optional exhaust air filtration system
- volume of chamber: 25 l
- max. permissible pressure: 2.8 bar
- sterilising temperature: 98 to 138 °C
A unique design meets innovative technical solutions:
- optimal use of chamber volume - sufficient for 5 x 1 l standard bottle incl. cap
- lid made of temperature resistant safety glass and lid cover made of safety glass
- LED front lightning to visualise cycle progress
- motor driven and self-checking closing mechanism
- flexible temperature reference sensor PT100 as serial function
- Thermolocking device according to IEC 61010-2-40
Product Specifications
- HS Code #84192000
- Depth int.450 mm
- Dim. Int. (Ø x H)265 x 450 mm
- Ext. dim. (WxDxH)435 x 680 x 560 mm
- Ext. depth680 mm
- Ext. height560 mm
- Ext. width435 mm
- Power supply frequency50 Hz
- Heating capacity2000 W
- Int. Ø265 mm
- IP codeIP 24
- Max. pressure2.8 bar
- Max. temperature138 °C
- Max. voltage230 V
- Min. temperature98 °C
- Nominal capacity25 l
- Power supply230 V, 50 Hz
- Temperature98 ... 138 °C
- TypeLABOKLAV 25 V
- Type of auxiliary energyMains connection
- Weight65 kg
- With recoolingNo
- With vacuum facilityYes
Variant products
Products related to this item (3)
product | Mfr # | Part # | Product name | Type | Type of
auxiliary energy | Price | Availability | |
21.0025.001.000 | 9.842 440 | LABOKLAV 25-B Basic unit 25 Liter usable volume, bench top unit | LABOKLAV 25 B | Mains connection | ₹1,908,509.58 | |||
21.0025.001.005 | 9.842 443 | LABOKLAV 25-MV Combi Standard 25 Liter usable volume, bench top unit with integrated fast liquid air cooling function | LABOKLAV 25 MV | Mains connection | ₹2,898,063.48 | |||
21.0025.001.001 | 9.842 441 | LABOKLAV 25-M Liquid Standard 25 Liter usable volume, bench top unit with integrated fast liquid air cooling function | LABOKLAV 25 M | Mains connection | ₹2,191,164.42 |
