Heidolph Peristaltic Pump Hei-FLOW Ultimate 120, Speed 4–120 rpm, without Head

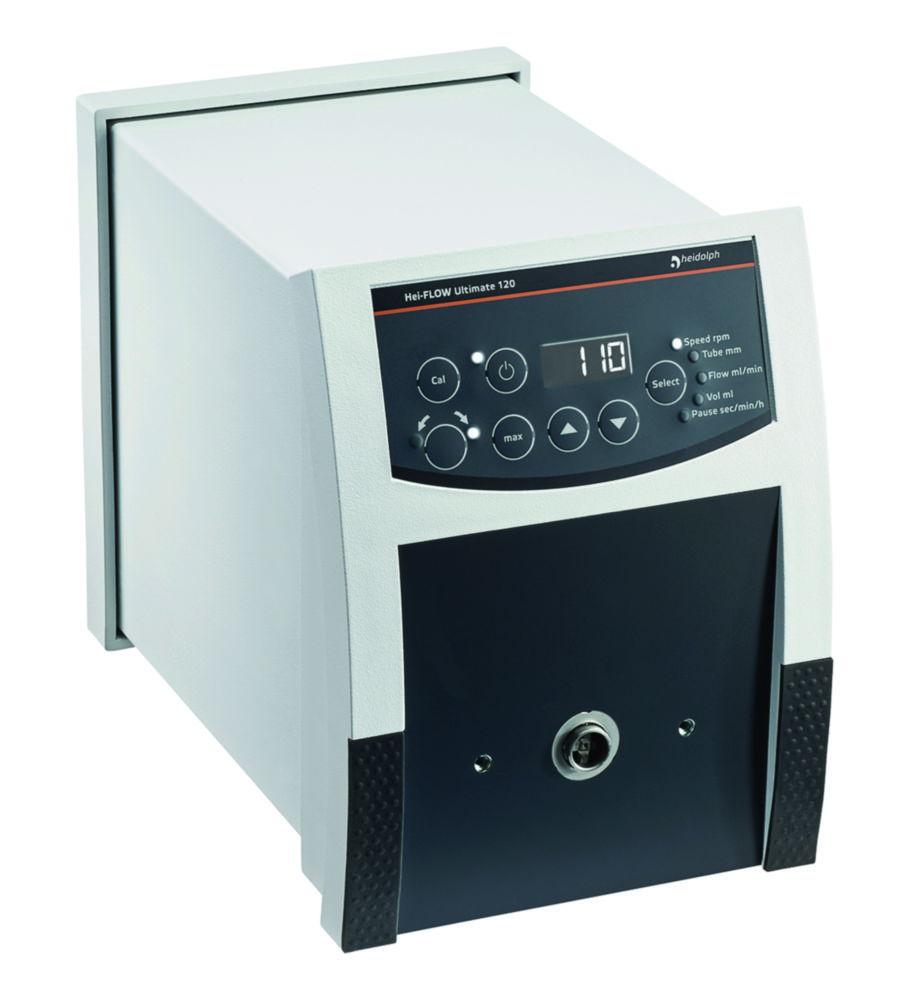

Representative image only

Heidolph Peristaltic Pump Hei-FLOW Ultimate 120, Speed 4–120 rpm, without Head

Sold by: Bishops Scientific Pvt Ltd
Available Soon
Part #: 9.829 244Manufacturer #: 523-52010-00
Estimated shipping time:Contact us via live chat or via contact us page

€5884.66

See the available (2) variant products

Product overview

The Heidolph Hei-FLOW Ultimate 120 is a high-precision peristaltic pump offering speed control from 4 to 120 rpm, designed to meet the rigorous demands of laboratory fluid handling. This version is supplied without the pump head, allowing for flexible head configuration based on your application.

Key Features:

  • Brand: Heidolph
  • Model: Hei-FLOW Ultimate 120
  • Speed Range: 4 – 120 rpm
  • Design: Modular – head sold separately
  • Application: Precise and consistent fluid transfer
  • Interface: Digital control panel for intuitive operation

Ideal for sensitive applications requiring superior dosing accuracy, the Heidolph Ultimate 120 ensures reliability, efficiency, and flexibility in laboratory withoutrkflows.



Frequently Asked Questions

1. What is the Heidolph Peristaltic Pump Hei-FLOW Ultimate 120, Speed 4–120 rpm, without Head used for?

It is a high-precision peristaltic pump offering speed control from 4 to 120 rpm, designed to meet the rigorous demands of laboratory fluid handling. This version is supplied without the pump head, allowing for flexible head configuration based on your application.

2. Is this product suitable for Precise and consistent fluid transfer?

Yes. It is designed for Precise and consistent fluid transfer, and offers a speed range of 4 – 120 rpm to support this kind of work.

3. What speed range does this product have?

It has a speed range of 4 – 120 rpm.

4. What design and interface does this product offer?

It offers modular – head sold separately and digital control panel for intuitive operation.

Product Specifications

  • HS Code #84136080
  • Accuracy speed Number±0.5 %
  • Accuracy speed Number0.5 %
  • Depth256 mm
  • Dimensions (WxDxH)166 x 256 x 225 mm
  • Flow rate0.005 ... 813 ml/min
  • Power supply frequency50/60 Hz
  • Height225 mm
  • IP codeIP 54
  • Max. speed120 1/min
  • Max. voltage240 V
  • Min. speed5 1/min
  • Min. voltage110 V
  • Plug typeEU
  • Power supply110 ... 240 V, 50/60 Hz
  • Rated capacity100 W
  • Speed5 ... 120 1/min
  • TypeHei-FLOW Ultimate 120
  • Type of auxiliary energyMains connection
  • UNSPSC41105102
  • Weight7.7 kg
  • Width166 mm
