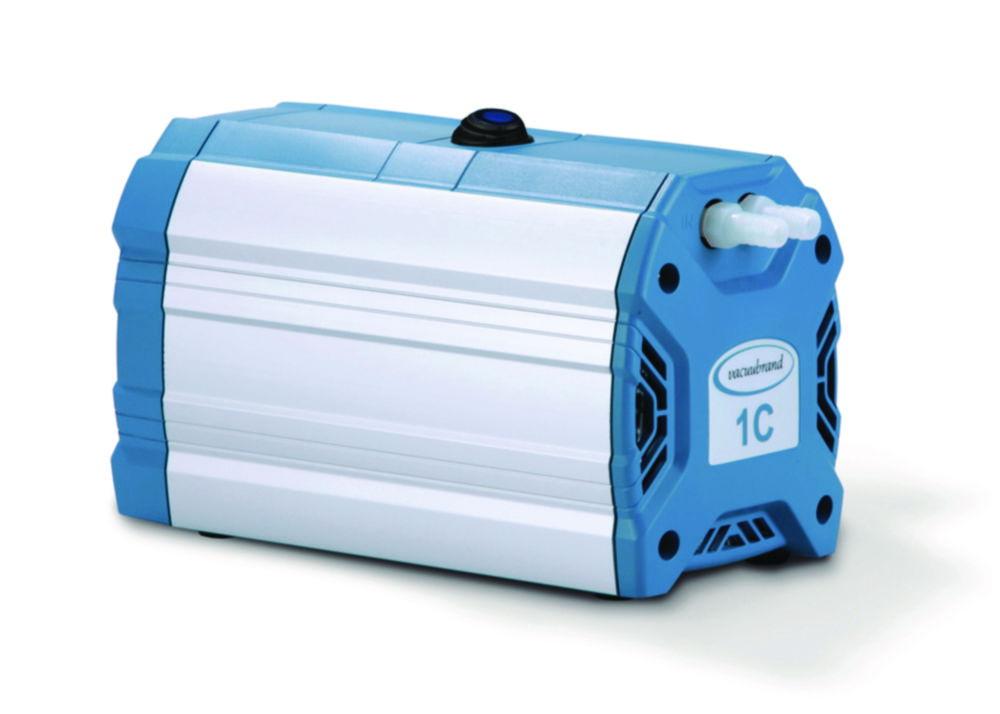

Vacuubrand Chemical Membrane Pump ME 1C, 230 V, 50/60 Hz, UK Mains Cable

The Vacuubrand ME 1C is a compact, oil-free diaphragm pump designed for chemical applications requiring reliable vacuum performance. Operating at 230 V with a UK mains cable, this pump offers a maximum pumping speed of 0.7 m³/h at 50 Hz and achieves an ultimate vacuum of 100 mbar (75 torr). Its chemically resistant construction ensures durability and longevity in laboratory environments.

Key Features:

• Brand: Vacuubrand
• Model: ME 1C
• Voltage/Frequency: 230 V / 50–60 Hz
• Maximum Pumping Speed: 0.7 m³/h (50 Hz), 0.5 cfm (60 Hz)
• Ultimate Vacuum: 100 mbar (75 torr)
• Number of Stages: 1
• Number of Heads: 1
• Inlet/Outlet Connections: Hose nozzle DN 8–10 mm
• Rated Motor Power: 0.04 kW
• Rated Motor Speed: 1500/1800 min⁻¹ (50/60 Hz)
• Protection Class: IP 40 (IEC 60529)
• Dimensions (L x W x H): 270 x 121 x 154 mm
• Weight: 5.4 kg
• Noise Level: 49 dBA
• Ambient Temperature Range (Operation): 10°C to 40°C
• Ambient Temperature Range (Storage): -10°C to 60°C
• Max. Back Pressure (abs.): 1.1 bar
• Certifications: NRTL certified

Ideal for applications such as vacuum filtration and sample preparation in chemical laboratories, the ME 1C offers maintenance-free operation with high chemical resistance.

Frequently Asked Questions

1. What is the Vacuubrand Chemical Membrane Pump ME 1C, 230 V, 50/60 Hz, UK Mains Cable used for?

It is a compact, oil-free diaphragm pump designed for chemical applications requiring reliable vacuum performance. Operating at 230 V with a UK mains cable, this pump offers a maximum pumping speed of 0.7 m³/h at 50 Hz and achieves an ultimate vacuum of 100 mbar (75 torr). Its chemically resistant construction ensures durability and longevity in laboratory environments.

2. Is this product suitable for chemical applications requiring reliable vacuum performance?

Yes. It is designed for chemical applications requiring reliable vacuum performance, and offers a voltage/frequency of 230 V / 50–60 Hz and a maximum pumping speed of 0.7 m³/h (50 Hz), 0.5 cfm (60 Hz) to support this kind of work.

3. What voltage/frequency and maximum pumping speed does this product have?

It has a voltage/frequency of 230 V / 50–60 Hz, a maximum pumping speed of 0.7 m³/h (50 Hz), 0.5 cfm (60 Hz) and an ultimate vacuum of 100 mbar (75 torr).

4. What inlet/outlet connections and protection class does this product offer?

It offers hose nozzle DN 8–10 mm, IP 40 (IEC 60529), -10°C to 60°C and NRTL certified.
