2mag Magnetic Stirring System MIXdrive 96 MTP External Control

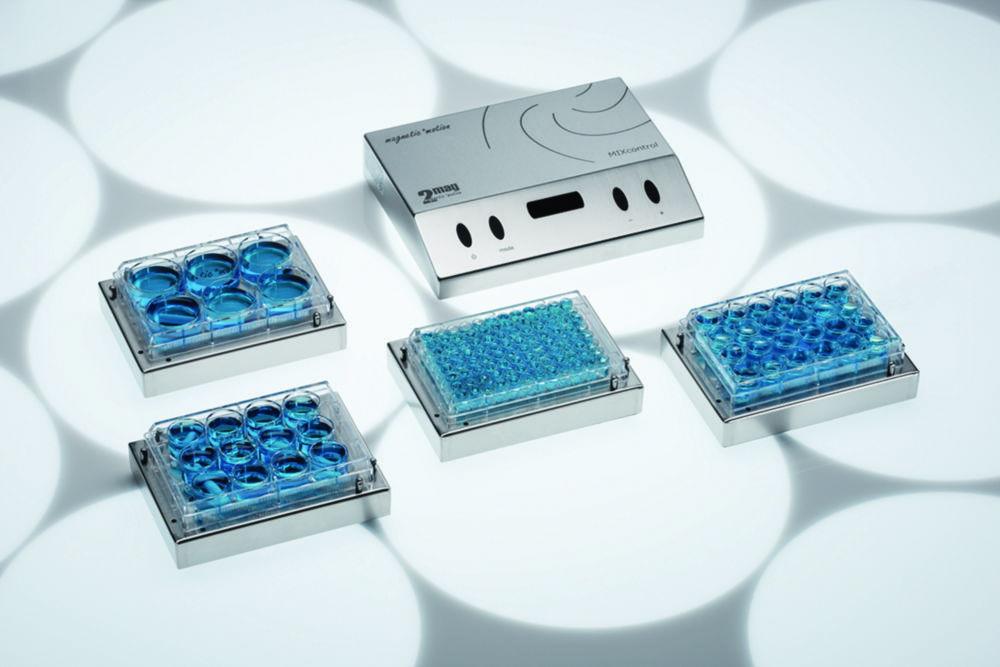

Representative image only

2mag Magnetic Stirring System MIXdrive 96 MTP External Control

Sold by: Bishops Scientific Pvt Ltd
Available Soon
Part #: 6.286 230Manufacturer #: 43096
Estimated shipping time:Contact us via live chat or via contact us page

₹353,022.96

See the available (3) variant products
Product overview

The 2mag Magnetic Stirring System MIXdrive 96 MTP External Control is a high-capacity stirring system engineered for efficient and precise mixing across 96 microtiter plates (MTP). This system is designed for high-throughput laboratory applications and provides external control for optimized performance, ensuring consistent and reliable stirring results in research, diagnostics, and pharmaceutical workflows.

Key Features:

  • Brand: 2mag
  • Model: MIXdrive 96 MTP with external control
  • Capacity: Holds up to 96 microtiter plates (MTP)
  • Design: Ultra-flat, compact, and wear-free magnetic stirring drive
  • Housing: Fully encapsulated stainless steel (IP68) – water-, dust-, and germproof
  • Durability: Robust construction with maximum resistance and easy cleaning
  • Temperature Resistance: Submersible in water or oil baths up to 50 °C (optional high-temperature version up to 200 °C available)
  • Application: Ideal for CO2 incubators, ovens, and robotic integration
  • Ease of Use: Removable centering pins for secure plate alignment

Note: Please order control units separately.

The 2mag MIXdrive 96 MTP Magnetic Stirring System delivers exceptional performance for large-scale laboratory workflows, combining reliability, precision, and flexibility in one robust and space-saving design.

Product Specifications
  • HS Code #84798200
  • Depth102 mm
  • Dimensions (WxDxH)140 x 102 x 26 mm
  • Height26 mm
  • IP codeIP 68
  • Material housingStainless steel
  • Max. permitted ambient temp.50 °C
  • Max. voltage48 V·DC
  • Min. permitted ambient temperature-10 °C
  • No. of stirring positions96
  • Permitted ambient temperature-10 ... 50 °C
  • Power supply48 V·DC
  • Rated capacity10 W
  • Stirring centre distances9 mm
  • TypeMIXdrive 96 MTP
  • UNSPSC41103806
  • Weight1100 g
  • Width140 mm
  • With timerNo
  • Manufacturer Article Number43096
