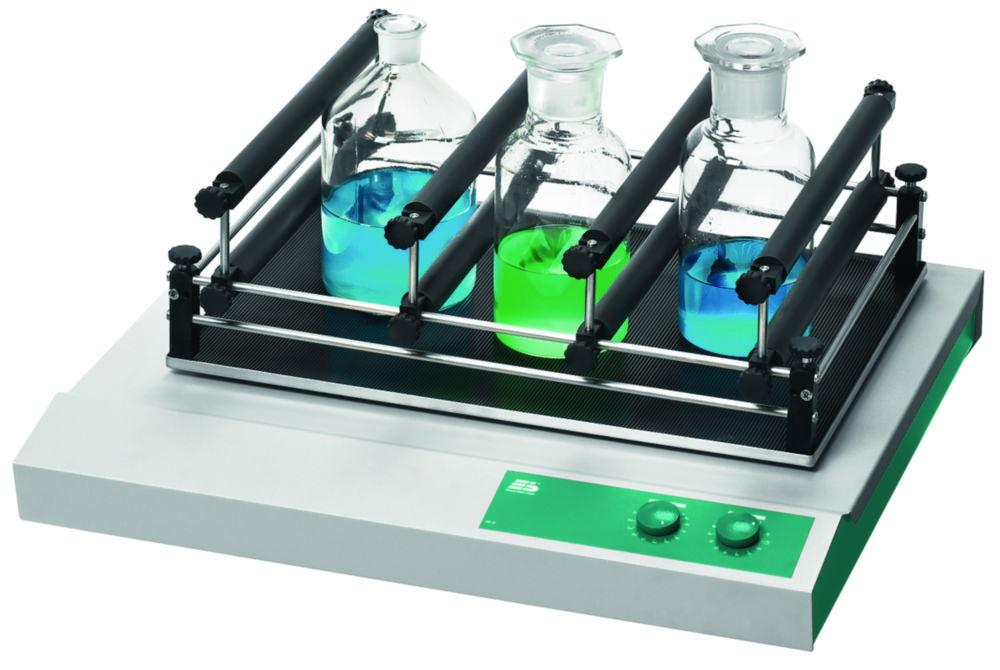

Edmund Bühler Universal Shakers SM 30A, Orbital Motion, Speed: 15-300 rpm, Platform Size: 560x400 mm, Without Accessories
Representative image only

Edmund Bühler Universal Shakers SM 30A, Orbital Motion, Speed: 15-300 rpm, Platform Size: 560x400 mm, Without Accessories

Sold by: Bishops Scientific Pvt Ltd
Available Soon
Part #: 9.838 101Manufacturer #: 6101 000
Estimated shipping time:Contact us via live chat or via contact us page

₹493,209.32

Product overview

The Edmund Bühler Universal Shaker SM 30A is a reliable orbital shaker engineered for continuous, high-performance mixing across laboratory applications. With an adjustable speed range of 15 to 300 rpm and a large 560 × 400 mm platform, it provides stable, uniform shaking for a wide variety of sample vessels. Its robust design and analog control ensure precise operation, making it ideal for biological, chemical, and industrial research.

Key Features:

  • Brand: Edmund Bühler
  • Model: SM 30A
  • Motion Type: Orbital motion for uniform sample mixing
  • Speed Range: 15 – 300 rpm for flexible speed control
  • Platform Size: 560 × 400 mm for multiple vessels and large loads
  • Control: Analog control with 0 – 120 min timer for timed or continuous operation
  • Applications: Ideal for analytical and diagnostic processes in biology, chemistry, pharmacy, and food science (e.g., transport simulations and plant culture)
  • Construction: Durable build for long-term continuous operation

Scope of Supply:

  • Shaker with shaking rack and rubber mat

Note: Attachments are required and must be ordered separately.

The Edmund Bühler SM 30A Universal Shaker delivers dependable performance for routine and demanding mixing tasks, ensuring consistent results and maximum laboratory efficiency.

Product Specifications
  • HS Code #84798200
  • Depth610 mm
  • Depth moving table400 mm
  • Dimensions (WxDxH)680 x 610 x 160 mm
  • DisplayAnalogue
  • Power supply frequency50/60 Hz
  • Height160 mm
  • IP codeIP 21
  • Max. loading capacity30 kg
  • Max. permitted ambient temp.50 °C
  • Max. relative humidity rate85 %
  • Max. speed300 1/min
  • Max. voltage230 V
  • Min. permitted ambient temperature5 °C
  • Min. speed15 1/min
  • Moving table (WxD)560 x 400 mm
  • Permitted ambient temperature5 ... 50 °C
  • Plug typeEU
  • Power supply230 V, 50/60 Hz
  • Shaking stroke26 mm
  • Speed15 ... 300 1/min
  • TypeSM 30 A
  • Type of movementOrbital
  • UNSPSC41103811
  • Weight33 kg
  • Width680 mm
  • Width moving table560 mm
  • With timerYes
