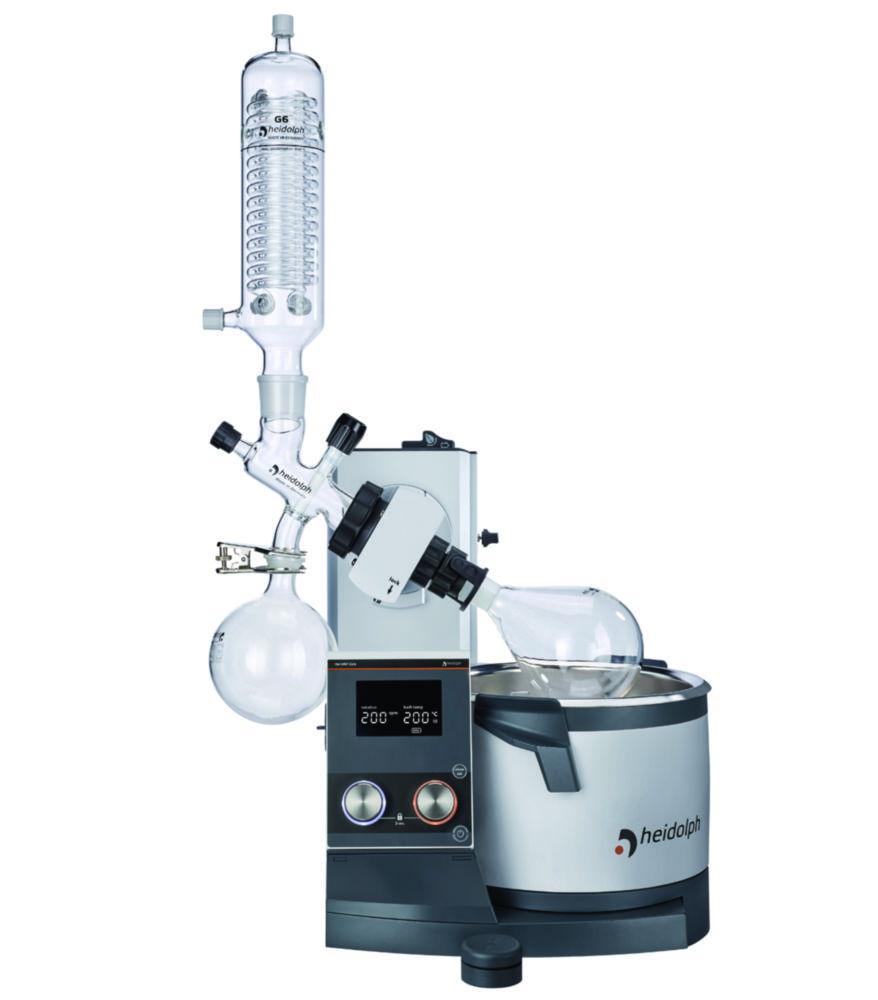

Heidolph Rotary Evaporator Hei-VAP Core HL G6B-CH Hand Lift (CH-Plug)

The Heidolph Rotary Evaporator Hei-VAP Core HL G6B-CH Hand Lift (CH-Plug) is engineered for precise and efficient solvent evaporation in laboratory settings. With a manual hand lift mechanism and CH-Plug compatibility, it offers reliable performance for applications such as distillation, concentration, and solvent recovery. Designed for user-friendly operation and long-lasting durability, it supports laboratories in delivering consistent, high-quality results.

Key Features:

• Brand: Heidolph
• Model: Hei-VAP Core HL G6B-CH with hand lift (CH-Plug)
• Application: Suitable for solvent evaporation, distillation, and concentration in research labs
• Lift Mechanism: Manual hand lift for precise and controlled height adjustment
• Compatibility: CH-Plug configuration for Swiss-compliant power systems
• Display: Clear digital display with separate button for viewing set values
• Controls: Two separate knobs for rotation speed and heating temperature with LED ring activity indicators
• Safety: Activated lock function to prevent unintended changes; residual heat warning for temperatures above 50 °C
• Adjustability: Adjustable immersion depth up to 155 mm; tilt angle from 20° to 80° for flexible operation
• Design: Ergonomic handles on the heating bath for safe and comfortable handling
• Sealing: Grease-free sealing technology for clean and maintenance-friendly operation
• Ventilation Cap: PTFE inlet, free of ground joints; optionally available with replenishment valve
• Optional Accessories: Detachable control panel with cable extension for fume hood integration

Scope of Supply:

• Flask clamp Easy-Clip
• Vapour tube
• Ventilation cap
• Heating bath
• 1-l receiving flask
• 1-l evaporating flask
• Supplied condenser as indicated

This Heidolph Rotary Evaporator provides laboratories with a robust, user-friendly, and precise manual evaporation solution that meets high-performance standards for solvent recovery and distillation tasks.

Frequently Asked Questions

1. What is the Heidolph Rotary Evaporator Hei-VAP Core HL G6B-CH Hand Lift used for?

It is engineered for precise and efficient solvent evaporation in laboratory settings. With a manual hand lift mechanism and CH-Plug compatibility, it offers reliable performance for applications such as distillation, concentration, and solvent recovery. Designed for user-friendly operation and long-lasting durability, it supports laboratories in delivering consistent, high-quality results.

2. Is this product suitable for solvent evaporation, distillation, and concentration in research labs?

Yes. It is designed for solvent evaporation, distillation, and concentration in research labs, and offers 1-l receiving flask and 1-l evaporating flask to support this kind of work.

3. What specifications does this product have?

It has 1-l receiving flask and 1-l evaporating flask.

4. What is this product compatible with?

It is compatible with cH-Plug configuration for Swiss-compliant power systems. It also offers manual hand lift for precise and controlled height adjustment and clear digital display with separate button for viewing set values.
