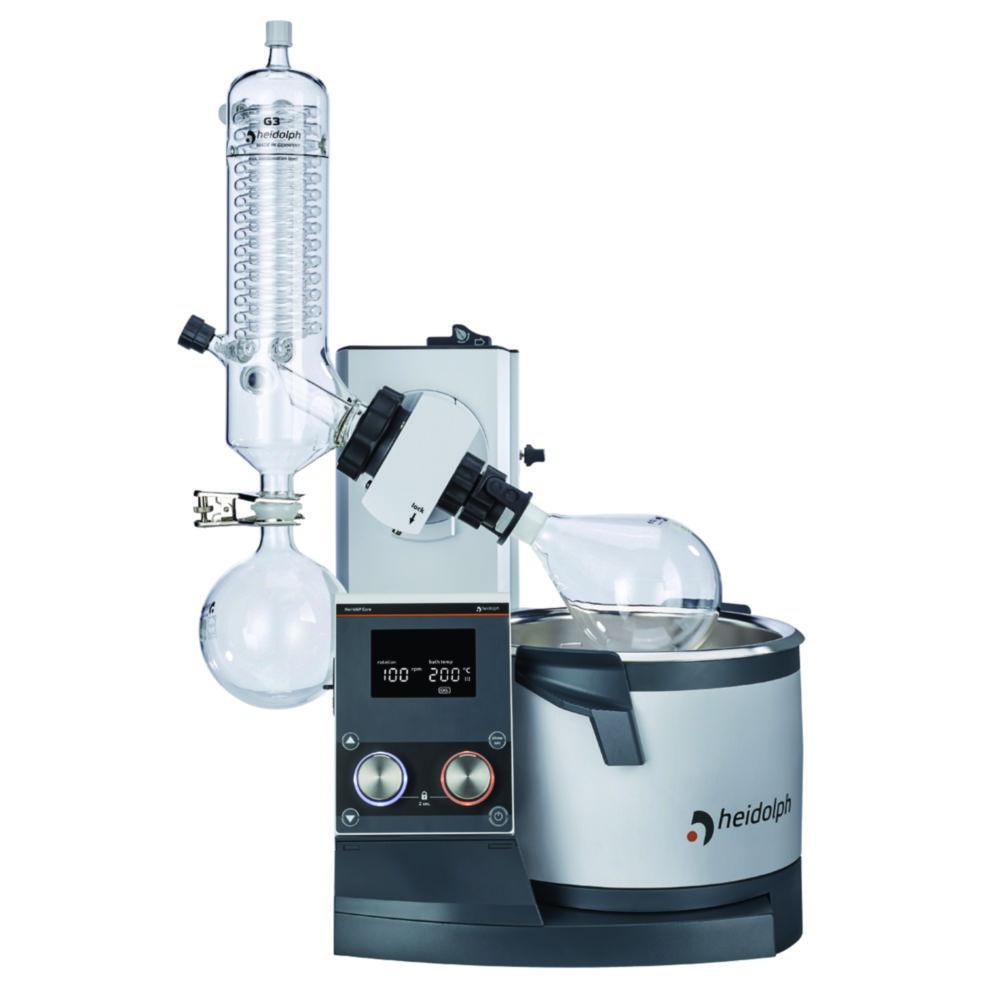

Heidolph Rotary Evaporator Hei-VAP Core ML G3B, Motor Lift (EU-Plug)

Brand:Heidolph

Cooling surface

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Cooling surface
1400 cm²
Depth
432 mm
Dimensions (WxDxH)
739 x 432 x 845 mm
Glassware
Coated
Height
845 mm
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l

₹865,777.80

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G3B with motor lift provides precise and safe evaporation for a wide range of lab applications. Featuring the G3B glassware configuration and a smooth motor lift, it’s ideal for efficient solvent distillation and concentration processes.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G3B
  • Lift Mechanism: Motorized lift for easy and consistent operation
  • Glassware Configuration: G3B vertical condenser with diagonal discharge
  • Plug Type: EU plug
  • Application: Ideal for standard distillation and solvent recovery in chemical and biological labs
  • Display: Clear digital display for monitoring current values; separate button to display set values
  • Controls: Two knobs for adjusting rotation speed and heating temperature with LED ring lights for activity indication
  • Safety: Activated lock feature to prevent inadvertent adjustments; residual heat indicator when temperature exceeds 50 °C
  • Standby Function: Stops all functions and lifts the evaporator flask out of the heating bath (motor lift models only)
  • Ergonomics: Heating bath with ergonomically optimized handles for secure handling
  • Adjustability: Immersion depth adjustable up to 155 mm; flask tilt angle adjustable from 20° to 80°
  • Sealing Technology: Grease-free operation with advanced sealing system
  • Ventilation Cap: PTFE inlet, free of ground joints; optional replenishment valve available
  • Optional Accessories: Cable extension; control panel can be detached for external use, e.g., outside fume hoods

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

The Heidolph Hei-VAP Core ML G3B is designed to ensure durability, reproducibility, and user-friendly operation in day-to-day lab work.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675₹259,471.38
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
3000 ml41104800514-76300-007.047 224₹61,953.54
2000 ml41104800514-75000-007.047 223₹37,591.26
250 ml41104800514-72000-007.047 221₹22,004.64
500 ml41104800514-73000-007.047 222₹23,969.34
5000 ml41104800514-78000-007.626 949₹101,640.48
100 ml41104800514-71000-007.047 220₹20,170.92
50 ml41104800514-70000-006.206 660₹32,221.08
1000 ml41104800514-74000-007.047 172₹28,684.62

Compare similar models

Rotary Evaporator Hei-VAP Core ML G3B motor lift (EU-Plug)

Manufacturer P/N

572-01310-00

Part Number

4.666 101

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL motor lift (EU-Plug)

Manufacturer P/N

572-01305-00

Part Number

4.666 097

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3 motor lift (EU-Plug)

Manufacturer P/N

572-01300-00

Part Number

4.666 096

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL motor lift (EU-Plug)

Manufacturer P/N

572-01315-00

Part Number

4.666 102

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3-UK motor lift (UK-Plug)

Manufacturer P/N

572-01300-03

Part Number

4.666 118

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL-UK motor lift (UK-Plug)
Available soon
Heidolph Hei-VAP Core ML G3 XL-UK Motor Lift (UK-Plug)

₹885,293.82

Inc. GST

Manufacturer P/N

572-01305-03

Part Number

4.666 119

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL-CH motor lift (CH-Plug)

Manufacturer P/N

572-01305-04

Part Number

4.666 139

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3B-UK motor lift (UK-Plug)

Manufacturer P/N

572-01310-03

Part Number

4.666 123

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B-CH motor lift (CH-Plug)

Manufacturer P/N

572-01310-04

Part Number

4.666 143

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3-CH motor lift (CH-Plug)

Manufacturer P/N

572-01300-04

Part Number

4.666 138

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL-CH motor lift (CH-Plug)

Manufacturer P/N

572-01315-04

Part Number

4.666 144

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL-UK motor lift (UK-Plug)

Manufacturer P/N

572-01315-03

Part Number

4.666 124

Manufacturer

Heidolph

Cooling surface

2200 cm²

Frequently asked questions

It provides precise and safe evaporation for a wide range of lab applications. Featuring the G3B glassware configuration and a smooth motor lift, it’s ideal for efficient solvent distillation and concentration processes.
