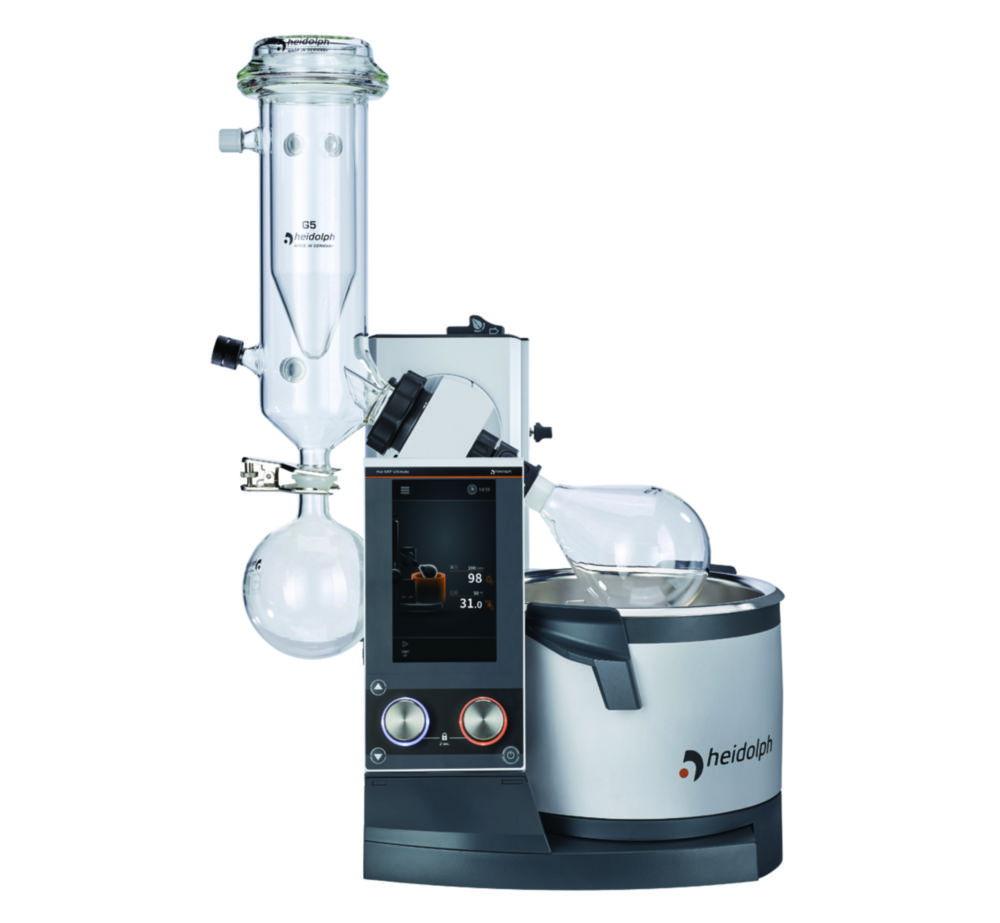

Heidolph Rotary Evaporator Hei-VAP Ultimate ML/G5B with Motor Lift, Plastic-Coated Glass Sets

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
Condenser
Vertical
Cooling surface
1400 cm²
Depth
477 mm
Dimensions (WxDxH)
739 x 477 x 887 mm
Power supply frequency
50/60 Hz
Glassware
Coated
Height
887 mm
Lift
Electrical
Lifting path
155 mm
Max. speed
280 1/min

₹1,187,857.62

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Ultimate ML/G5B with Motor Lift and Plastic-Coated Glass Sets is engineered for high-performance solvent evaporation in laboratory settings. Featuring a motorized lift for effortless flask handling and plastic-coated glassware for enhanced safety, this unit is ideal for demanding applications in chemical, pharmaceutical, and research laboratories.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Ultimate ML/G5B with Motor Lift
  • Glassware: Plastic-coated G5B dry ice condenser for improved durability and safety
  • Lift Type: Motorized lift for smooth and automated flask adjustments
  • Control System: 7" LCD color graphic display for intuitive operation and monitoring
  • Rotation Speed: 10 – 280 rpm
  • Heating Capacity: 1,300 W with a temperature range of 20 – 210 °C
  • Bath Volume: 4.5 liters
  • Max. Flask Size: 5 liters
  • Condensing Surface: 1,400 cm²
  • Safety Features: Overheat protection with cut-off at 5 °C over set temperature via separate PT 1000 sensor
  • Additional Features: Integrated vacuum controller, programmable ramps, and Dynamic AUTOaccurate vacuum program (requires AUTOaccurate sensor)
  • Application: Suitable for chemical, pharmaceutical, and research laboratories

The Heidolph Hei-VAP Ultimate ML/G5B with Motor Lift and Plastic-Coated Glass Sets offers advanced safety, control, and efficiency for solvent evaporation tasks in modern laboratories.

Downloads

Compare similar models

Rotary evaporator Hei-VAP Ultimate ML/G5B with motor lift, plastic-coated glass sets

Manufacturer P/N

576-01510-00

Part Number

4.669 030

Manufacturer

Heidolph

Glassware

Coated

Rotary evaporator Hei-VAP Ultimate ML/G5 with motor lift

Manufacturer P/N

576-01500-00

Part Number

4.669 025

Manufacturer

Heidolph

Glassware

Without coating

Hei-VAP Ultimate ML G5 CH-plug
Available soon
Heidolph Hei-VAP Ultimate ML G5, CH Plug

₹1,110,972.36

Inc. GST

Manufacturer P/N

576-01500-04

Part Number

4.703 462

Manufacturer

Heidolph

Glassware

Without coating

Hei-VAP Ultimate ML G5B UK-plug
Available soon
Heidolph Hei-VAP Ultimate ML G5B, UK Plug

₹1,187,857.62

Inc. GST

Manufacturer P/N

576-01510-03

Part Number

4.703 463

Manufacturer

Heidolph

Glassware

Coated

Hei-VAP Ultimate ML G5 UK-plug
Available soon
Heidolph Hei-VAP Ultimate ML G5, UK Plug

₹1,110,972.36

Inc. GST

Manufacturer P/N

576-01500-03

Part Number

4.703 461

Manufacturer

Heidolph

Glassware

Without coating

Hei-VAP Ultimate ML G5B CH-plug
Available soon
Heidolph Hei-VAP Ultimate ML G5B, CH Plug

₹1,187,857.62

Inc. GST

Manufacturer P/N

576-01510-04

Part Number

4.703 464

Manufacturer

Heidolph

Glassware

Coated

More items to explore

Rotary Evaporators Hei-VAP Expert, with hand lift, cold trap

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUG5B573-01510-004.668 982₹1,126,820.94
EUG5573-01500-004.668 968₹1,049,804.70
USG5573-01500-016.492 699₹1,049,804.70
CHG5B573-01510-044.703 331₹1,126,820.94
UKG5573-01500-034.703 328₹1,049,804.70
UKG5B573-01510-034.703 330₹1,126,820.94
CHG5573-01500-044.703 329₹1,049,804.70

Rotary Evaporators Hei-VAP Expert Control, with hand lift, cold trap

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUG5573-02500-004.668 996₹1,279,543.62
CHG5B573-02510-044.703 351₹1,356,690.84

Frequently asked questions

It is engineered for high-performance solvent evaporation in laboratory settings. Featuring a motorized lift for effortless flask handling and plastic-coated glassware for enhanced safety, this unit is ideal for demanding applications in chemical, pharmaceutical, and research laboratories.
