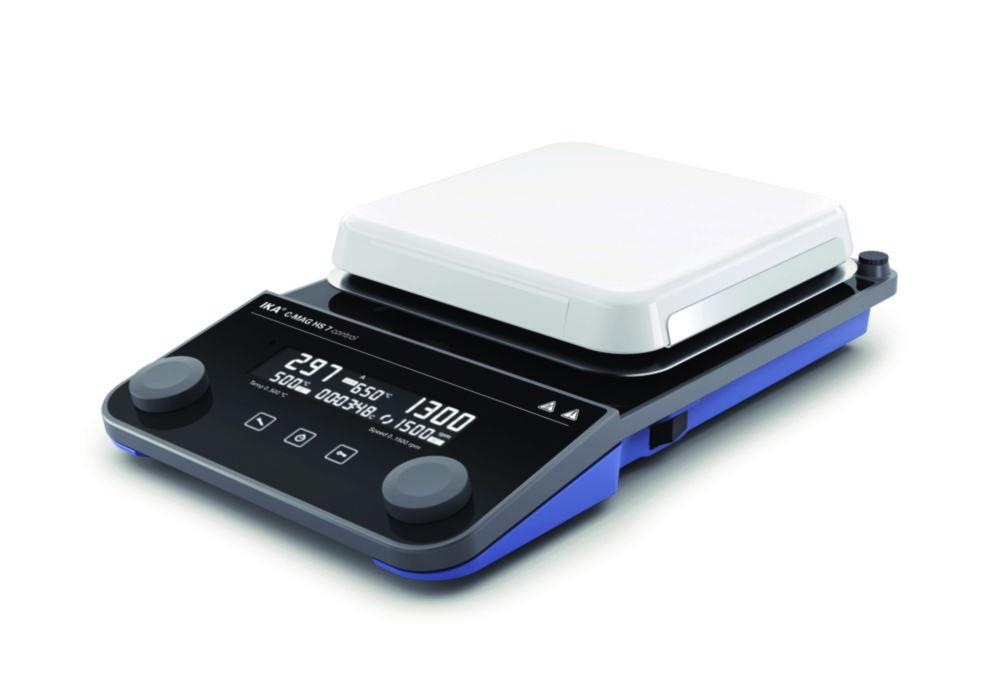

IKA Magnetic Stirrer C-MAG HS 7 Control, Ceramic Plate, with Heating
Product overview
The IKA Magnetic Stirrer C-MAG HS 7 Control, Ceramic Plate, with Heating is a high-performance laboratory stirrer designed for efficient mixing and heating. Featuring a ceramic plate, it offers excellent heat resistance and easy cleaning. The built-in heating function ensures precise temperature control, making it ideal for various laboratory applications requiring both stirring and heating. With adjustable speed control, it provides flexibility for a wide range of sample sizes and mixing tasks.
Key Features:
- Brand: IKA
- Model: C-MAG HS 7 Control
- Plate Material: Ceramic for durability and easy cleaning
- Heating Function: Built-in heating for precise temperature control
- Speed Control: Adjustable speed settings for various mixing tasks
- Application: Ideal for laboratory stirring and heating tasks
Scope of supply: Magnetic stirrer, temperature sensor PT 1000.60, magnetic stirring bar IKAFLON® 30 and IKAFLON® 40, screwdriver, USB A-B cable
The IKA Magnetic Stirrer C-MAG HS 7 Control, Ceramic Plate, with Heating combines stirring and heating in one unit, providing high efficiency and versatility for laboratory work.
Frequently Asked Questions
1. What is the IKA Magnetic Stirrer C-MAG HS 7 Control, Ceramic Plate, with Heating used for?
It is a high-performance laboratory stirrer designed for efficient mixing and heating. Featuring a ceramic plate, it offers excellent heat resistance and easy cleaning. The built-in heating function ensures precise temperature control, making it ideal for various laboratory applications requiring both stirring and heating. With adjustable speed control, it provides flexibility for a wide range of sample sizes and mixing tasks.
2. Is this product suitable for laboratory stirring and heating tasks?
Yes. It is designed for laboratory stirring and heating tasks, and offers 10 years warranty to support this kind of work.
3. What specifications does this product have?
It has 10 years warranty.
4. What plate material and heating function does this product offer?
It offers ceramic for durability and easy cleaning, built-in heating for precise temperature control and adjustable speed settings for various mixing tasks.
Product Specifications
- HS Code #84798200
- Control accuracy heating temperature±5 °C
- Depth354 mm
- Depth working area180 mm
- Dimensions (WxDxH)220 x 354 x 88 mm
- DisplayDigital
- Power supply frequency50/60 Hz
- Heating capacity1000 W
- Heating temperatureRT ... 500 °C
- Height88 mm
- IP codeIP 21
- Material housingGlass
- Material stirring surfaceCeramic
- Max. heating rate5 °C/min
- Max. heating temperature500 °C
- Max. permitted ambient temp.40 °C
- Max. relative humidity rate80 %
- Max. safety temperature650 °C
- Max. speed1500 1/min
- Max. stirring capacity20 l
- Max. voltage230 V
- Min. permitted ambient temperature5 °C
- Min. safety temperature100 °C
- Min. speed50 1/min
- Min. voltage220 V
- No. of stirring positions1
- Permitted ambient temperature5 ... 40 °C
- Plug typeEU
- Power supply220 ... 230 V, 50/60 Hz
- Rated capacity1020 W
- Safety temperature100 ... 650 °C
- Speed50 ... 1,500 1/min
- TypeC-MAG HS7 control
- Type of auxiliary energyMains connection
- UNSPSC41103806
- Warranty10 years
- Weight4 kg
- Width220 mm
- Width working area180 mm
- With connection ext. temperature sensorYes
- With timerYes
- Working area (WxD)180 x 180 mm
Downloads
- LabFriend 6.288 285 20000031429a_EN_C-MAG HS 7 control_042023_web.pdfDownload
- LabFriend 6.288 285 201910_Integrated Safety_6 Page Flyer_EN_web_single_update_final.pdfDownload
- LabFriend 6.288 285 20230808_IWB_Questionnaire_Form_EN_final_edited.pdfDownload
- LabFriend 6.288 285 20240910_Lab Essentials_Paint_A4_Flyer_IWS_websingle.pdfDownload
- LabFriend 6.288 285 Data_Sheet_C-MAG_HS_7_control.pdfDownload
- LabFriend 6.288 285 IKA_CE-Declaration_Magnetic_stirring_C-MAG_HS_7_C_(C).pdfDownload
