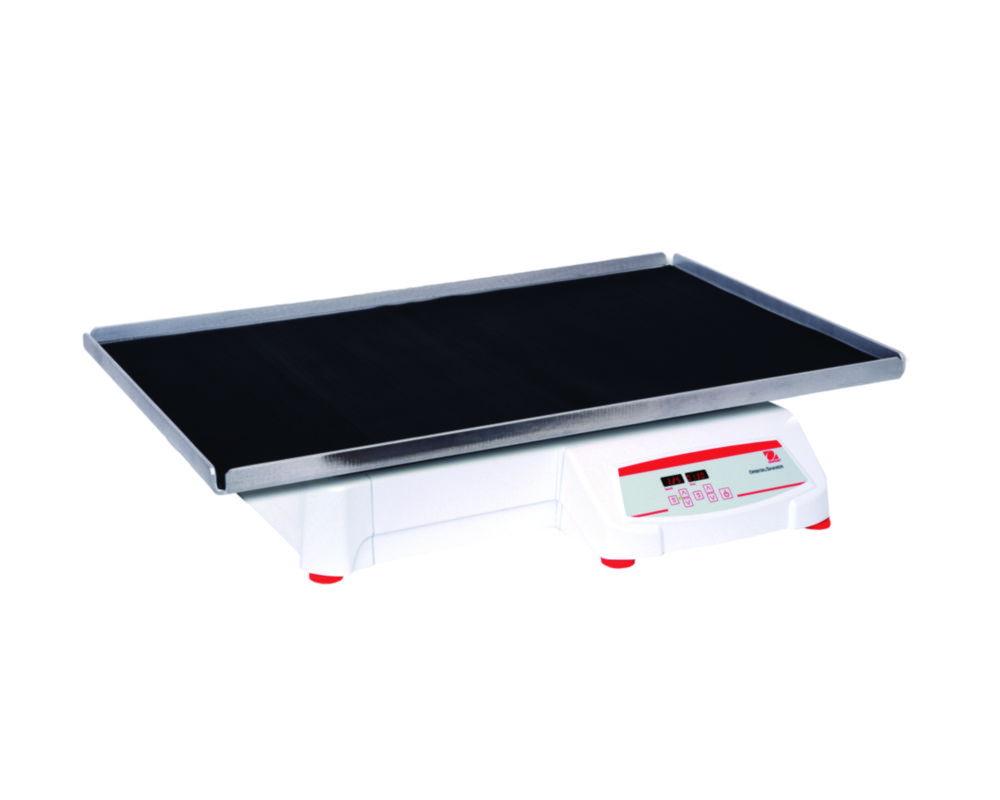

Ohaus Heavy Duty Orbital Shaker SHHD2325DG, Digital, EU and UK Plug
Product overview
The Ohaus Heavy Duty Orbital Shaker SHHD2325DG Digital is engineered for demanding laboratory applications requiring consistent and reliable shaking. With a robust design and advanced features, this shaker ensures optimal performance for a variety of sample preparation tasks.
Key Features:
- Brand: Ohaus
- Model: SHHD2325DG
- Control Type: Digital with touchpad control
- Plug Type: EU and UK
- Speed Range: 20 to 500 rpm
- Shaking Motion: Orbital, 25 mm stroke
- Load Capacity: Up to 22.7 kg (50 lbs)
- Tray Dimensions: 45.7 cm x 61 cm
- Timer: 1 second to 160 hours
- Safety Features: Load sensor, overload protection, audible alarm
- Interface: RS232 for data logging and remote control
- Power Supply: 230V, 50/60Hz, 75W
- Drive System: Patented Accu-Drive Shaking System for reliable performance
- Construction Material: Independent LED displays for speed and time
- Component Material: Speed calibration mode for accuracy
Scope of Supply:
- Shaker including built-in tray and non-slip rubber mat
This shaker is ideal for applications such as protein studies, solubility testing, and general laboratory mixing tasks.
Frequently Asked Questions
1. What is the Ohaus Heavy Duty Orbital Shaker SHHD2325DG, Digital, EU and UK Plug used for?
It is engineered for demanding laboratory applications requiring consistent and reliable shaking. With a robust design and advanced features, this shaker ensures optimal performance for a variety of sample preparation tasks.
2. Is this product suitable for controlled agitation of compatible laboratory vessels and sample loads?
Yes. It is designed for controlled agitation of compatible laboratory vessels and sample loads, and offers a speed range of 20 to 500 rpm and a load capacity of up to 22.7 kg (50 lbs) to support this kind of work.
3. What speed range and load capacity does this product have?
It has a speed range of 20 to 500 rpm, a load capacity of up to 22.7 kg (50 lbs) and tray dimensions of 45.7 cm x 61 cm.
4. What control type and plug type does this product offer?
It offers digital with touchpad control, EU and UK, orbital, 25 mm stroke and load sensor, overload protection, audible alarm.
Product Specifications
- HS Code #84798200
- Depth610 mm
- Depth moving table457 mm
- Dimensions (WxDxH)678 x 610 x 149 mm
- DisplayDigital
- Power supply frequency50/60 Hz
- Height149 mm
- Max. loading capacity22.7 kg
- Max. permitted ambient temp.60 °C
- Max. relative humidity rate80 %
- Max. speed500 1/min
- Max. voltage230 V
- Min. permitted ambient temperature-10 °C
- Min. speed20 1/min
- Moving table (WxD)610 x 457 mm
- Permitted ambient temperature-10 ... 60 °C
- Plug typeEU
- Power supply230 V, 50/60 Hz
- Rated capacity75 W
- Shaking stroke25 mm
- Speed20 ... 500 1/min
- TypeSHHD2325DG
- Type of movementOrbital
- UNSPSC41103811
- Weight49.5 kg
- Width678 mm
- Width moving table610 mm
- With timerYes
Products related to this item (5)
product | Mfr # | Part # | Product name | Plug type | Type | Price | Availability | |
30391811 | 4.659 458 | Ohaus Digital Heavy Duty Orbital Shaker SHHD1619DG (EU & UK Plug) | EU | SHHD1619DG | €3814.94 | |||
30391872 | 4.659 464 | Ohaus Digital Heavy Duty Orbital Shaker SHHD4550DG (EU Plug) | EU | SHHD4550DG | €8280.06 | |||
30391865 | 4.659 463 | Ohaus Heavy Duty Orbital Shaker SHHD4525DG, Digital, EU Plug | EU | SHHD4525DG | €8280.06 | |||
30391879 | 4.659 465 | Ohaus Heavy Duty Orbital Shaker SHHD6825DG, Digital, EU Plug | EU | SHHD6825DG | €9945.04 | |||
30391886 | 4.659 466 | Ohaus Heavy Duty Orbital Shaker SHHD6850DG, Digital, EU and UK Plug | EU | SHHD6850DG | €10415.86 |
