Representative Image

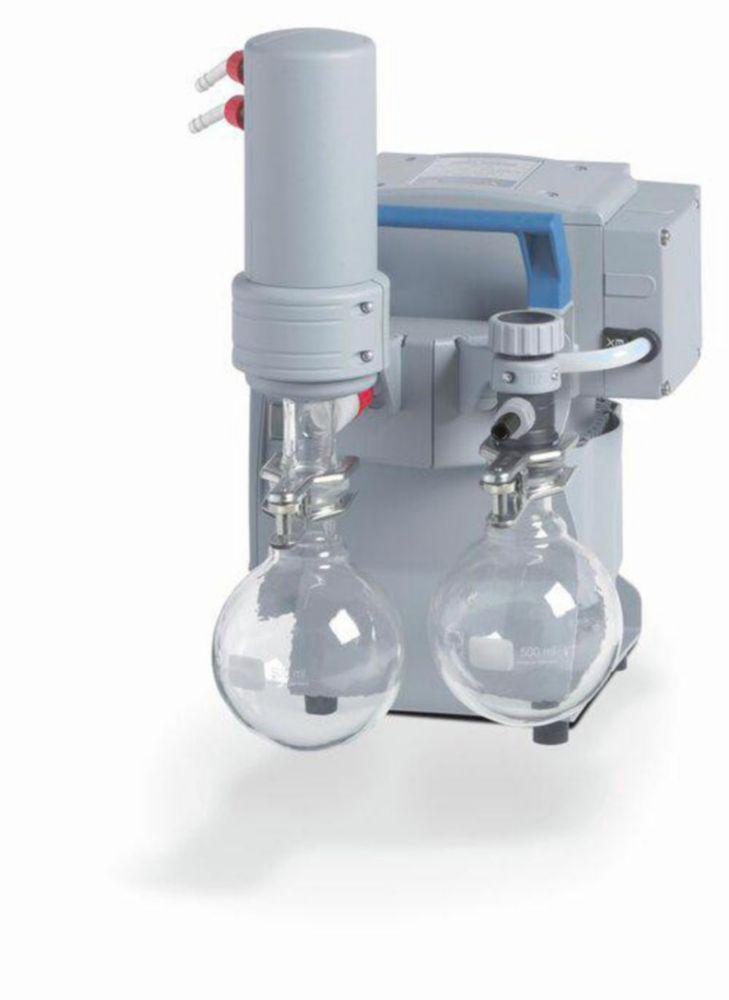

Vacuubrand Chemical-Membrane Pump MZ 2C NT + AK + EK, CH Mains Cable 230 V, 50/60 Hz

Plug type

Specifications

Compare models
HS Code #
84141089
Connection pressure side
DN 8-10 mm
Connection suction side
DN 8-10 mm
Depth
326 mm
Dimensions (WxDxH)
243 x 326 x 402 mm
Flow rate
2.0 m³/h
Height
402 mm
No. of stages
2
Plug type
CH
Type
MZ 2C NT + AK + EK
Ultimate vacuum
7 mbar

Alternative in-stock items

₹673,237.20

Inc. GST

Available soon

Product description

The Vacuubrand Chemical-Membrane Pump MZ 2C NT + AK + EK is a high-performance, oil-free diaphragm pump system designed for demanding laboratory applications. Operating at 230 V/50–60 Hz, this system offers a maximum pumping speed of 2 m³/h at 50 Hz and 1.4 cfm at 60 Hz. It achieves an ultimate vacuum of 7 mbar (5 torr) and 12 mbar (9 torr) with gas ballast, ensuring efficient removal of condensable vapors.

Key Features:

  • Brand: Vacuubrand
  • Model: MZ 2C NT + AK + EK
  • Voltage/Frequency: 230 V / 50–60 Hz
  • Maximum Pumping Speed: 2 m³/h (50 Hz), 1.4 cfm (60 Hz)
  • Ultimate Vacuum: 7 mbar (5 torr), 12 mbar (9 torr) with gas ballast
  • Number of Stages: 2
  • Number of Heads: 2
  • Inlet/Outlet Connections: Hose nozzle DN 8–10 mm
  • Coolant Connections: 2 x hose nozzle DN 6–8 mm
  • Rated Motor Power: 0.18 kW
  • Rated Motor Speed: 1500 rpm (50 Hz), 1800 rpm (60 Hz)
  • Protection Class: IP 40 (IEC 60529)
  • Dimensions (L x B x H): 326 mm x 243 mm x 402 mm
  • Weight: 14.2 kg
  • Noise Level: 45 dBA
  • Ambient Temperature Range (Operation): 10°C to 40°C
  • Ambient Temperature Range (Storage): -10°C to 60°C

This vacuum system is ideal for applications such as rotary evaporation, vacuum concentrators, and filtration in chemical, biological, and pharmaceutical laboratories. The included glass separator (AK) effectively retains particles and liquid droplets, ensuring clean and efficient operation. The EK condenser enables near-100% solvent recovery, promoting environmental sustainability and cost efficiency.

Downloads

Accessories

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081₹16,503.48
PVC34.9 mm206860634.714 084₹45,450.06
PVC38.1 mm206860654.714 085₹53,046.90
PVC15.9 mm206860614.714 082₹19,254.06
PVC22.3 mm206860624.714 083₹23,052.48

Compare similar models

Chemical-membrane pump MZ 2C NT + AK + EK, CH mais cable 230 V, 50/60 Hz

Manufacturer P/N

20732601

Part Number

9.880 923

Manufacturer

VACUUBRAND​

Plug type

CH

Chemical-membrane pump MZ 2C NT + AK + EK, CEE mais cable 230 V, 50/60 Hz

Manufacturer P/N

20732600

Part Number

6.234 067

Manufacturer

VACUUBRAND​

Plug type

EU

Chemistry vacuum system MZ 2C NT +AK+EK, certification (NRTL): C/US, 230 V/50-60 Hz, UK/IN mains cable

Manufacturer P/N

20732602

Part Number

4.670 445

Manufacturer

VACUUBRAND​

Plug type

UK

Chemistry vacuum system MZ 2C NT +AK+EK, two stage, Certification (NRTL): C/US, 100-115 V/50-60 Hz, 120 V/60 Hz, US mains cable

Manufacturer P/N

20732603

Part Number

4.670 446

Manufacturer

VACUUBRAND​

Plug type

US

More items to explore

Chemistry Pumping Unit PC 3001 VARIO® select with condenser Peltronic®

ProductTypeDepthMfr#Part#AvailabilityPrice
PC 3001 VARIO ® select EKP300 mm207002454.669 248₹1,766,396.28

Diaphragm pumps chemistry design, ME 1C

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUME 1C207211009.880 934In stock₹185,467.68
UKME 1C207211029.880 936₹185,467.68
CHME 1C207211019.880 935₹185,467.68
USME 1C207211039.880 937₹185,467.68

Frequently asked questions

It is a high-performance, oil-free diaphragm pump system designed for demanding laboratory applications. Operating at 230 V/50–60 Hz, this system offers a maximum pumping speed of 2 m³/h at 50 Hz and 1.4 cfm at 60 Hz. It achieves an ultimate vacuum of 7 mbar (5 torr) and 12 mbar (9 torr) with gas ballast, ensuring efficient removal of condensable vapors.
