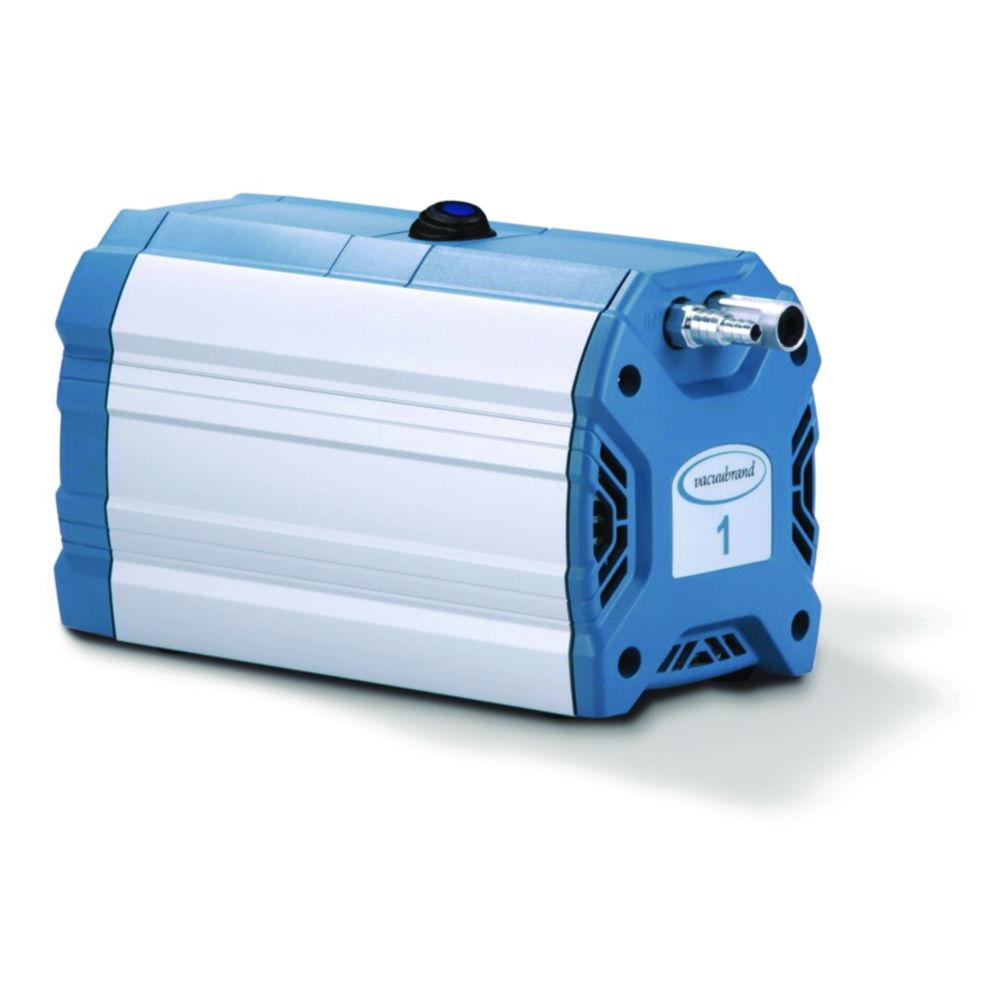

Vacuubrand Membrane Pump ME 1, 230 V, 50/60 Hz, CEE Mains Cable

The Vacuubrand ME 1 is a compact, oil-free diaphragm vacuum pump designed for efficient and reliable laboratory applications. Operating at 230 V with a CEE mains cable, it offers a maximum pumping speed of 0.7 m³/h and achieves an ultimate vacuum of 100 mbar (75 torr). Its chemically resistant PTFE diaphragm and valves ensure durability and longevity in various laboratory environments.

Key Features:

• Brand: Vacuubrand
• Model: ME 1
• Voltage/Frequency: 230 V / 50–60 Hz
• Maximum Pumping Speed: 0.7 m³/h (50 Hz)
• Ultimate Vacuum: 100 mbar (75 torr)
• Number of Stages: 1
• Number of Heads: 1
• Inlet Connection: Hose nozzle DN 6–10 mm
• Outlet Connection: Silencer / G1/8"
• Rated Motor Power: 0.04 kW
• Rated Motor Speed: 1500/1800 min⁻¹ (50/60 Hz)
• Protection Class: IP 40 (IEC 60529)
• Dimensions (L x W x H): 270 x 121 x 155 mm
• Weight: 5.4 kg
• Noise Level: 49 dBA
• Ambient Temperature Range (Operation): 10°C to 40°C
• Ambient Temperature Range (Storage): -10°C to 60°C
• Max. Back Pressure (abs.): 1.1 bar
• Certifications: NRTL certified

This pump is ideal for applications such as vacuum filtration and sample preparation in chemical laboratories, offering maintenance-free operation with high chemical resistance.

Frequently Asked Questions

1. What is the Vacuubrand Membrane Pump ME 1, 230 V, 50/60 Hz, CEE Mains Cable used for?

It is a compact, oil-free diaphragm vacuum pump designed for efficient and reliable laboratory applications. Operating at 230 V with a CEE mains cable, it offers a maximum pumping speed of 0.7 m³/h and achieves an ultimate vacuum of 100 mbar (75 torr). Its chemically resistant PTFE diaphragm and valves ensure durability and longevity in various laboratory environments.

2. Is this product suitable for efficient and reliable laboratory applications?

Yes. It is designed for efficient and reliable laboratory applications, and offers a voltage/frequency of 230 V / 50–60 Hz and a maximum pumping speed of 0.7 m³/h (50 Hz) to support this kind of work.

3. What voltage/frequency and maximum pumping speed does this product have?

It has a voltage/frequency of 230 V / 50–60 Hz, a maximum pumping speed of 0.7 m³/h (50 Hz) and an ultimate vacuum of 100 mbar (75 torr).

4. What inlet connection and outlet connection does this product offer?

It offers hose nozzle DN 6–10 mm, silencer / G1/8", IP 40 (IEC 60529) and -10°C to 60°C.
