Representative Image

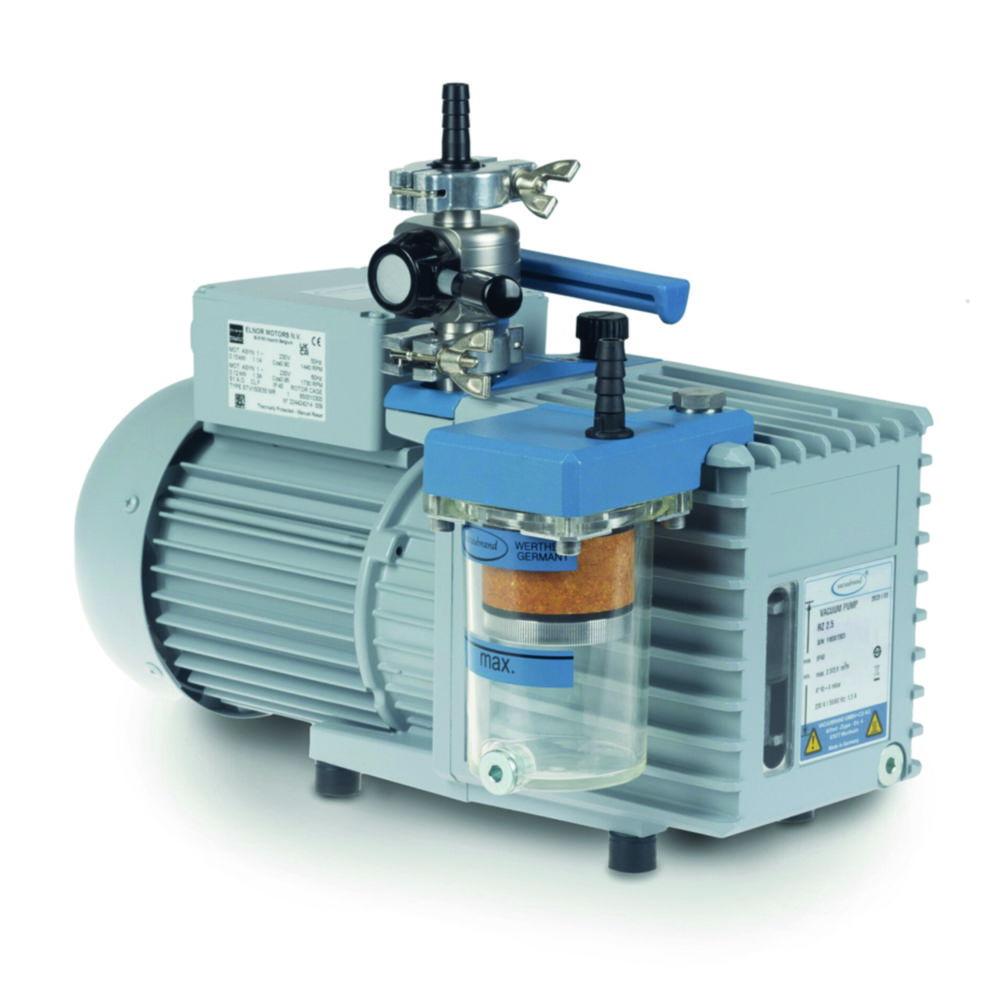

Vacuubrand Rotary Vane Pump Package RZ 2.5 with Oil Mist Filter and Butterfly Valve VS 16, 230 V / 50-60 Hz, CH/CN Mains Cable

Plug type

Specifications

Compare models
HS Code #
84141025
Connection pressure side
DN 8-10 mm
Connection suction side
KF DN 16
Depth
390 mm
Dimensions (WxDxH)
230 x 390 x 240 mm
Flow rate
38.33 l/min
Power supply frequency
50/60 Hz
Height
240 mm
IP code
IP 40
Max. voltage
230 V
No. of stages
2

₹493,401.66

Inc. GST

Available soon

Product description

The Vacuubrand Rotary Vane Pump Package RZ 2.5 is a comprehensive solution for efficient vacuum generation. This two-stage pump is paired with an oil mist filter and a butterfly valve (VS 16) to ensure high-performance operation and enhanced vacuum quality. With a power supply of 230 V / 50-60 Hz and CH/CN mains cable, this package is designed for laboratories and industrial applications requiring superior vacuum strength, precision, and clean performance.

Key Features:

  • Brand: Vacuubrand
  • Model: Rotary Vane Pump RZ 2.5
  • Package Includes: Oil mist filter, butterfly valve (VS 16)
  • Type: Two-stage vacuum pump for high-performance applications
  • Voltage: 230 V / 50-60 Hz
  • Power Cable: CH/CN mains cable for European and Chinese power systems
  • Application: Ideal for laboratories and industrial applications requiring high-performance vacuum and clean operation
  • Packaging: Complete unit with pump, oil mist filter, butterfly valve, and mains cable

Scope of Supply:

  • Rotary vane pump
  • Oil mist filter FO
  • Butterfly valve VS 16
  • Manual

The Vacuubrand Rotary Vane Pump Package RZ 2.5 offers efficient vacuum performance with added filtration and control features, making it a top choice for demanding laboratory and industrial environments.

Accessories

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081₹16,503.48
PVC34.9 mm206860634.714 084₹45,450.06
PVC38.1 mm206860654.714 085₹53,046.90
PVC15.9 mm206860614.714 082₹19,254.06
PVC22.3 mm206860624.714 083₹23,052.48

Compare similar models

Rotary vane pump package RZ 2.5 with oil mist filter and butterfly valve VS 16, 230 V / 50-60 Hz, CH/CN mains cable

Manufacturer P/N

20798024

Part Number

4.691 567

Manufacturer

VACUUBRAND​

Plug type

CH

Rotary vane pump package RZ 2.5 with oil mist filter and butterfly valve VS 16, 230 V / 50-60 Hz, UK mains cable

Manufacturer P/N

20798058

Part Number

4.691 569

Manufacturer

VACUUBRAND​

Plug type

UK

Rotary vane pump package RZ 2.5 with oil mist filter and butterfly valve VS 16, 230 V / 50-60 Hz, CEE mains cable

Manufacturer P/N

20798029

Part Number

4.691 568

Manufacturer

VACUUBRAND​

Plug type

EU

More items to explore

Rotary vane pump RE 2.5, one-stage

ProductPlug typeTypeMfr#Part#AvailabilityPrice
UKRE 2.5207971524.691 576₹315,137.88
CHRE 2.5207971514.691 575₹315,137.88
EURE 2.5207971504.691 574₹315,137.88
USRE 2.5207971564.691 578₹352,074.24

Rotary vane pump RZ 2.5, two-stage

Frequently asked questions

It is a comprehensive solution for efficient vacuum generation. This two-stage pump is paired with an oil mist filter and a butterfly valve (VS 16) to ensure high-performance operation and enhanced vacuum quality. With a power supply of 230 V / 50-60 Hz and CH/CN mains cable, this package is designed for laboratories and industrial applications requiring superior vacuum strength, precision, and clean performance.
