Representative Image

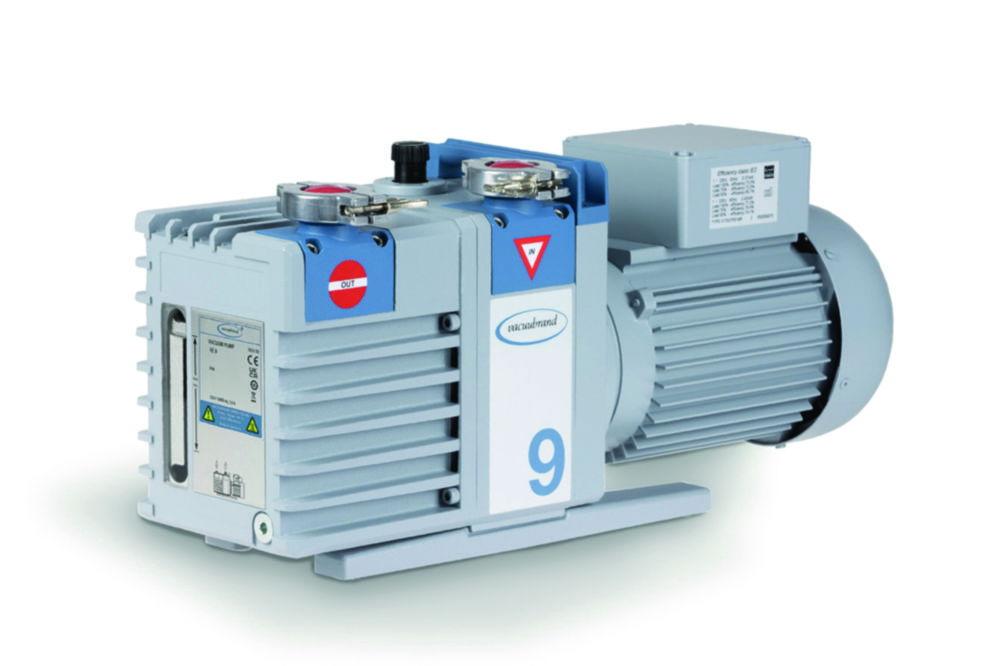

Vacuubrand Rotary Vane Pump RE 9, One-Stage, 230 V/50–60 Hz, CEE Mains Cable

Specifications

Connection pressure side
KF DN 25
Connection suction side
KF DN 25
Depth
503 mm
Dimensions (WxDxH)
156 x 503 x 240 mm
Flow rate
148.33 l/min
Power supply frequency
50/60 Hz
Height
240 mm
IP code
IP 40
Max. voltage
230 V
No. of stages
1

₹597,006.84

Inc. GST

Available soon

Product description

The Vacuubrand Rotary Vane Pump RE 9 is a robust, single-stage vacuum pump designed for efficient evacuation in laboratory and industrial applications. Operating at 230 V/50–60 Hz with a CEE mains cable, it offers high pumping speed and reliable performance.

Key Features:

  • Brand: Vacuubrand
  • Model: RE 9
  • Type: One-stage rotary vane pump
  • Voltage: 230 V/50–60 Hz
  • Power Connection: CEE mains cable
  • Pumping Speed: 8.9 m³/h at 50 Hz
  • Ultimate Vacuum: 1 x 10−1 mbar
  • Water Vapor Tolerance: 40 mbar with gas ballast
  • Applications: Suitable for freeze drying, fine vacuum distillation, and drying ovens

Scope of Supply:

  • Rotary vane pump
  • Manual

This pump is vacuum-tight at switch-off, eliminating the need for an external anti-suckback valve, and features a large oil volume for extended maintenance intervals.

Accessories

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081₹16,503.48
PVC34.9 mm206860634.714 084₹45,450.06
PVC38.1 mm206860654.714 085₹53,046.90
PVC15.9 mm206860614.714 082₹19,254.06
PVC22.3 mm206860624.714 083₹23,052.48
