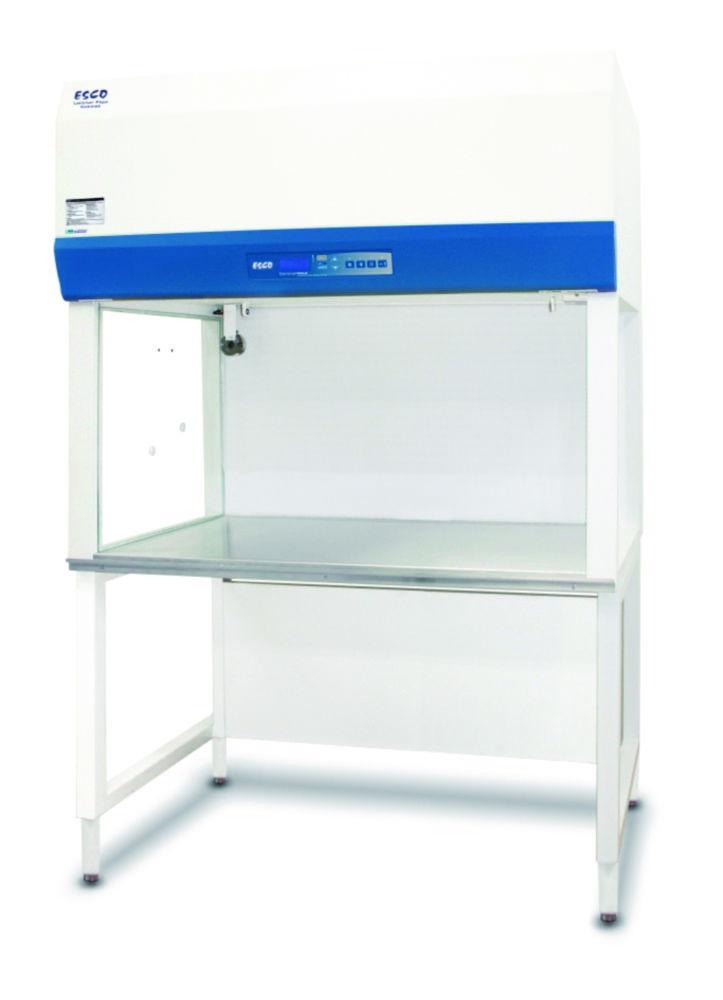

ESCO Bench Airstream LVG-4AG-F8, Vertical, 1.2m, Gen 3 Glass Sides (4ft/1.2m W, 2.25 ft/0.7m H)
Product overview
The ESCO Bench Airstream LVG-4AG-F8 Vertical, 1.2m, Gen 3 Glass Sides is a high-performance laminar flow cabinet designed for use in controlled laboratory environments. Featuring a vertical airflow system, it ensures ISO Class 3 air cleanliness within the work zone as per ISO 14644.1 standards. The cabinet comes with glass side walls for enhanced visibility, making it ideal for applications such as microbiological research, pharmaceutical compounding, and more.
Key Features:
- Brand: ESCO
- Model: LVG-4AG-F8
- Type: Vertical Laminar Flow Cabinet
- Dimensions: External: 1340 x 784 x 1270 mm; Internal: 1270 x 739 x 689 mm
- Airflow: Vertical laminar flow with average velocity of 0.45 m/s (90 fpm) at initial set point
- Filtration: ULPA filter with >99.999% efficiency at 0.1 to 0.3 microns
- Sound Emission: 52.4 dBA per IEST-RP-CC002.2*
- Lighting: Fluorescent lamp intensity of 1000 Lux at zero ambient
- Power Supply: 220-240 VAC, 50/60 Hz, 1 phase
- Power Consumption: 151W
- Weight: 158 kg (cabinet only, excludes optional stand)
This laminar flow cabinet is the ideal solution for laboratories requiring a reliable, high-performance environment to protect samples from contamination.
Frequently Asked Questions
1. What is the ESCO Bench Airstream LVG-4AG-F8, Vertical, 1.2m, Gen 3 Glass Sides used for?
It is a high-performance laminar flow cabinet designed for use in controlled laboratory environments. Featuring a vertical airflow system, it ensures ISO Class 3 air cleanliness within the work zone as per ISO 14644.1 standards. The cabinet comes with glass side walls for enhanced visibility, making it ideal for applications such as microbiological research, pharmaceutical compounding, and more.
2. Is this product suitable for use in controlled laboratory environments?
Yes. It is designed for use in controlled laboratory environments, and offers a sound emission of 52.4 dBA per IEST-RP-CC002.2* and a power supply of 220-240 VAC, 50/60 Hz, 1 phase to support this kind of work.
3. What sound emission and power supply does this product have?
It has a sound emission of 52.4 dBA per IEST-RP-CC002.2*, a power supply of 220-240 VAC, 50/60 Hz, 1 phase and a power consumption of 151W.
4. What type and dimensions does this product offer?
It offers vertical Laminar Flow Cabinet, external: 1340 x 784 x 1270 mm; Internal: 1270 x 739 x 689 mm, vertical laminar flow with average velocity of 0.45 m/s (90 fpm) at initial set point and ULPA filter with >99.999% efficiency at 0.1 to 0.3 microns.
Product Specifications
- HS Code #94032080
- Amperage7.5 A
- Depth int.688 mm
- Ext. dim. (WxDxH)1,340 x 784 x 1,270 mm
- Ext. depth784 mm
- Ext. height1270 mm
- Ext. width1340 mm
- Power supply frequency50/60 Hz
- Height int.689 mm
- Illumination904 Lux
- Int. Dim. (WxDxH)1,222 x 688 x 689 mm
- Int. width1222 mm
- Max. air volume flow1471 m³/h
- Max. voltage240 V·AC
- Min. voltage220 V·AC
- Noise level52.4 db(A)
- Power supply220 ... 240 V·AC, 50/60 Hz , 7.5 A
- Rated capacity151 W
- TypeLVG-4AG-F8
- Type of auxiliary energyMains connection
- UNSPSC41103517
- Weight158 kg
