Representative Image

Heidolph Rotary Evaporator Hei-VAP Core HL G1B, Hand Lift (EU-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Diagonal
Cooling surface
1400 cm²
Glassware
Coated
Lift
Manual
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT

₹790,464.30

Inc. GST

Available soon

Product description

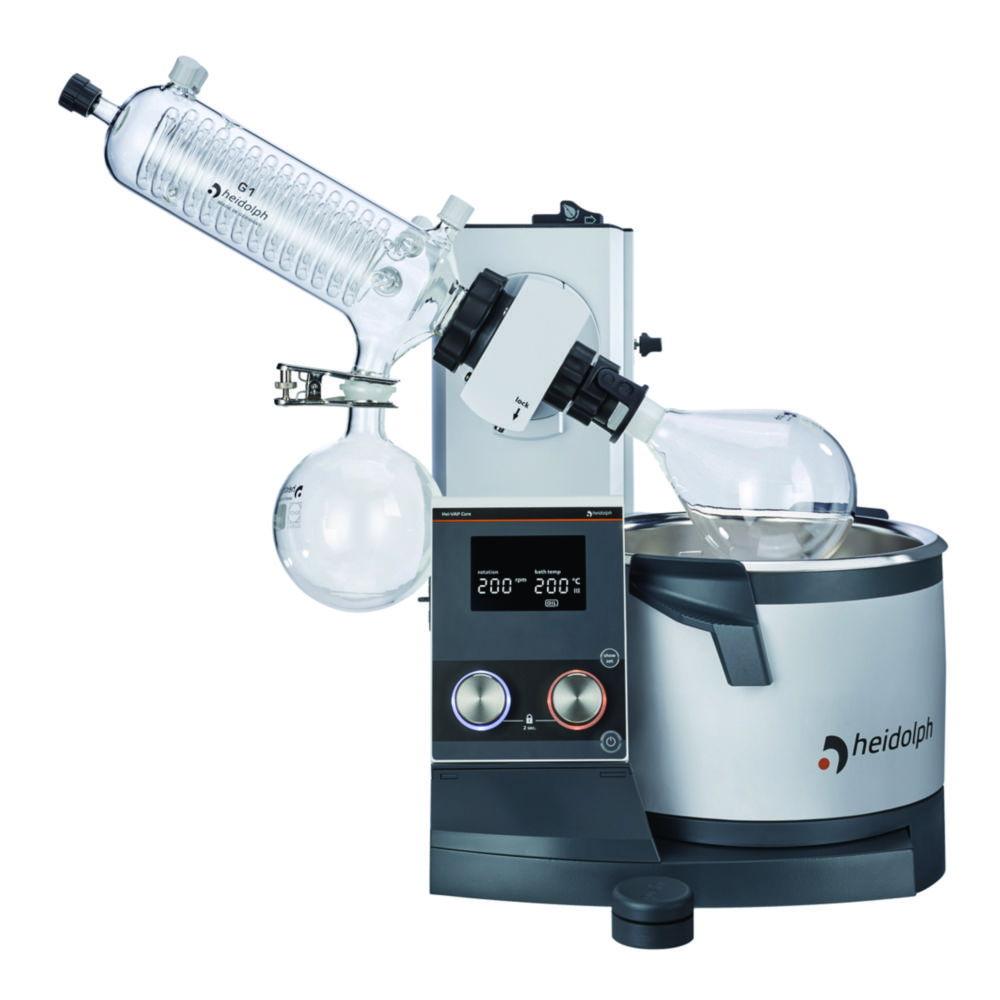

The Heidolph Rotary Evaporator Hei-VAP Core HL G1B with hand lift is a reliable and efficient system for laboratory solvent evaporation. This rotary evaporator is equipped with a hand lift for easy manual adjustment of the flask position. The EU-plug version ensures compatibility with European electrical systems. It is ideal for laboratories looking for a high-performance, user-friendly solution for solvent distillation and evaporation tasks.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core HL G1B
  • Lift Mechanism: Hand lift for precise flask adjustment and operation
  • Plug Type: EU plug for European electrical compatibility
  • Display: Clear digital display for monitoring current values and separate button to show set values
  • Controls: Two dedicated knobs for adjusting rotation speed and heating temperature, with LED ring light indicators
  • Safety: Activated lock feature to prevent inadvertent adjustments; residual heat warning when temperature exceeds 50 °C
  • Ergonomics: Optimized heating bath handles for safe and comfortable handling
  • Adjustability: Immersion depth up to 155 mm; tilt angle adjustable from 20° to 80°
  • Sealing: Grease-free operation using innovative sealing technology
  • Ventilation: Ventilation cap with PTFE inlet, free of ground joints; replenishment valve optionally available
  • Extras: Optional cable extension and detachable operating panel for use outside closed fume hoods

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-l receiving flask
  • 1-l evaporating flask
  • Supplied condenser as indicated

Heidolph’s Hei-VAP Core HL G1B rotary evaporator is designed for optimal performance in solvent distillation and is perfect for high-demand laboratory environments.

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
Heating bath liquid AP 200 (WACKER) 220°C 5 Ltr.
Heidolph Heating Bath Liquid AP 200 (WACKER), 220°C, 5 Ltr
5 l+220 °C569-00600-004.652 675₹259,471.38
Thermal Fluid Kryo30 canister 20 l, for Hei-CHILL Chiller (no dan. goods)
Heidolph Thermal Fluid Kryo30 Canister 20 L, for Hei-CHILL Chiller No DAN Goods
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
Evaporator flask 3000 ml NS 29/32
Heidolph Evaporator Flask, 3000 ml NS 29/32
3000 ml41104800514-76300-007.047 224₹61,953.54
Evaporator Flask 2000 ml NS 29/32
Heidolph Evaporator Flask, 2000 ml NS 29/32
2000 ml41104800514-75000-007.047 223₹37,591.26
Evaporator Flask 250 ml NS 29/32
Heidolph Evaporator Flask, 250 ml NS 29/32
250 ml41104800514-72000-007.047 221₹22,004.64
Evaporator Flask 500 ml NS 29/32
Heidolph Evaporator Flask, 500 ml NS 29/32
500 ml41104800514-73000-007.047 222₹23,969.34
Evaporating flask 5000 ml NS 29/32
Heidolph Evaporating Flask, 5000 ml NS 29/32
5000 ml41104800514-78000-007.626 949₹101,640.48
Evaporator Flask 100 ml NS 29/32
Heidolph Evaporator Flask, 100 ml NS 29/32
100 ml41104800514-71000-007.047 220₹20,170.92
Evaporating flask 50 ml with NS 14/23 incl. transition piece and clamp
Heidolph Evaporating Flask, 50 ml, with NS 14/23 including Transition Piece and Clamp
50 ml41104800514-70000-006.206 660₹32,221.08
Evaporator flask 1000ml NS 29/32 for glass set V1 and V1/B
Heidolph Evaporator Flask, 1000ml NS 29/32 for Glass Set V1 and V1/B
1000 ml41104800514-74000-007.047 172₹28,684.62

Compare similar models

Rotary Evaporator Hei-VAP Core HL G1B hand lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G1B, Hand Lift (EU-Plug)

₹790,464.30

Inc. GST

Manufacturer P/N

571-01110-00

Part Number

4.666 090

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G1 hand lift with G1 diagonal cooler G1 (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G1, Hand Lift, with G1 Diagonal Cooler G1 (EU-Plug)

₹752,742.06

Inc. GST

Manufacturer P/N

571-01100-00

Part Number

4.666 085

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G1-CH hand lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G1-CH Hand Lift (CH-Plug)

₹752,742.06

Inc. GST

Manufacturer P/N

571-01100-04

Part Number

4.666 127

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G1B-UK hand lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G1B-UK Hand Lift (UK-Plug)

₹790,464.30

Inc. GST

Manufacturer P/N

571-01110-03

Part Number

4.666 112

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G1-UK hand lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G1-UK Hand Lift (UK-Plug)

₹752,742.06

Inc. GST

Manufacturer P/N

571-01100-03

Part Number

4.666 107

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G1B-CH hand lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G1B-CH Hand Lift (CH-Plug)

₹790,464.30

Inc. GST

Manufacturer P/N

571-01110-04

Part Number

4.666 132

Manufacturer

Heidolph

Glassware

Coated

Frequently asked questions

It is a reliable and efficient system for laboratory solvent evaporation. This rotary evaporator is equipped with a hand lift for easy manual adjustment of the flask position. The EU-plug version ensures compatibility with European electrical systems. It is ideal for laboratories looking for a high-performance, user-friendly solution for solvent distillation and evaporation tasks.
