Representative Image

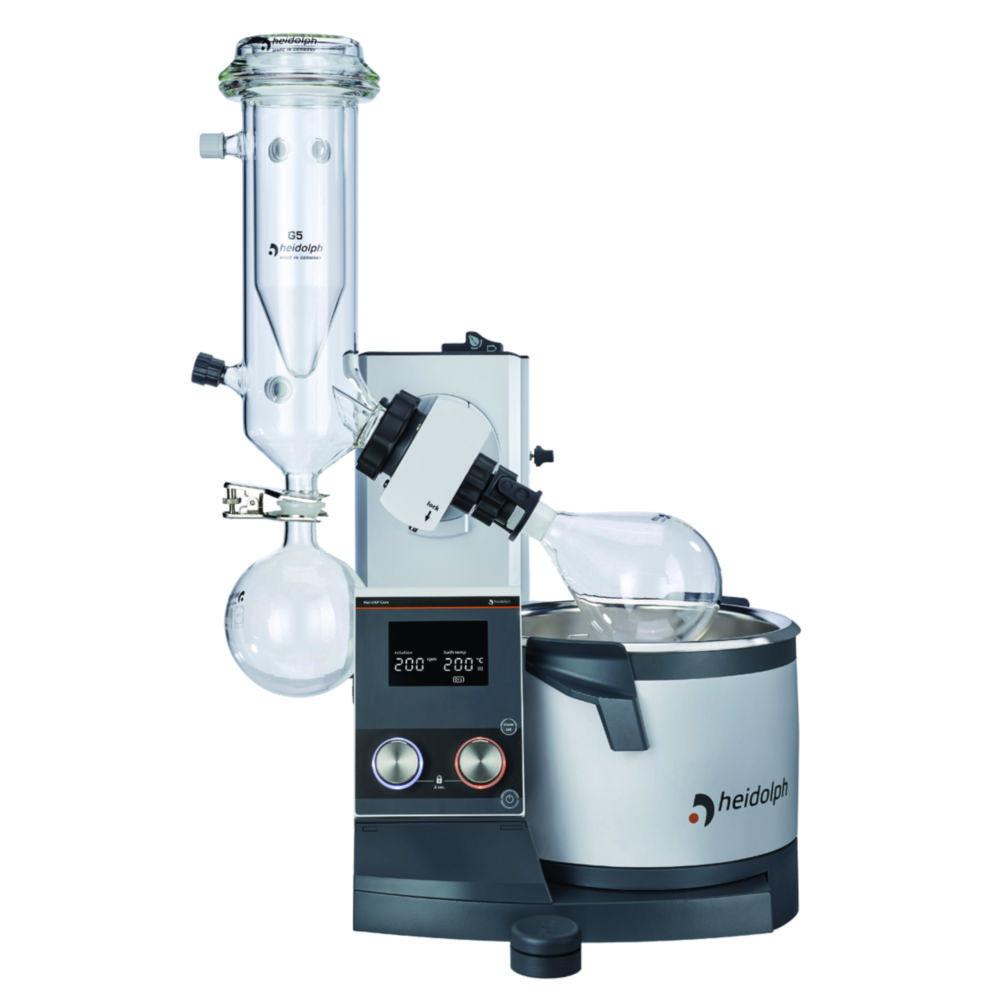

Heidolph Rotary Evaporator Hei-VAP Core HL G5B-CH Hand Lift (CH-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
Condenser
Vertical
Cooling surface
1400 cm²
Glassware
Coated
Lift
Manual
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT

₹986,803.32

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core HL G5B-CH Hand Lift (CH-Plug) is designed to provide manual precision for efficient solvent evaporation in laboratory settings. Equipped with a reliable hand lift and CH-Plug compatibility, this model is ideal for distillation, concentration, and solvent recovery applications. Built with Heidolph's renowned engineering, it is perfect for labs requiring a high-performance, manually operated evaporator.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core HL G5B-CH with hand lift (CH-Plug)
  • Application: Suitable for solvent evaporation, distillation, and concentration tasks
  • Lift Mechanism: Manual hand lift for precise control
  • Compatibility: CH-Plug for Swiss-compliant electrical systems
  • Display: Clear digital display for monitoring current values with separate button to display set values
  • Controls: Two separate knobs for rotation speed and heating temperature with LED ring light system for activity indication
  • Safety: Activated lock feature prevents inadvertent adjustments; residual heat indicator when >50 °C
  • Standby Function: (Motor lift models) Standby button stops all functions and lifts evaporator flask out of heating bath
  • Design: Ergonomically optimized heating bath handles for secure grip; grease-free operation thanks to innovative sealing technology
  • Adjustability: Immersion depth adjustable up to 155 mm; tilt angle adjustable from 20° to 80°
  • Ventilation Cap: PTFE inlet, free of ground joints, optionally available with replenishment valve
  • Optional Accessories: Cable extension; detachable operating panel for use outside closed fume hoods

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-l receiving flask
  • 1-l evaporating flask
  • Supplied condenser as indicated

This Heidolph Rotary Evaporator provides an ideal solution for laboratories seeking a durable, manual evaporator for reliable solvent evaporation tasks.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
Heating bath liquid AP 200 (WACKER) 220°C 5 Ltr.
Heidolph Heating Bath Liquid AP 200 (WACKER), 220°C, 5 Ltr
5 l+220 °C569-00600-004.652 675₹259,471.38
Thermal Fluid Kryo30 canister 20 l, for Hei-CHILL Chiller (no dan. goods)
Heidolph Thermal Fluid Kryo30 Canister 20 L, for Hei-CHILL Chiller No DAN Goods
20 l+90 °C569-00610-009.812 665₹212,580.54

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
Evaporator flask 3000 ml NS 29/32
Heidolph Evaporator Flask, 3000 ml NS 29/32
3000 ml41104800514-76300-007.047 224₹61,953.54
Evaporator Flask 2000 ml NS 29/32
Heidolph Evaporator Flask, 2000 ml NS 29/32
2000 ml41104800514-75000-007.047 223₹37,591.26
Evaporator Flask 250 ml NS 29/32
Heidolph Evaporator Flask, 250 ml NS 29/32
250 ml41104800514-72000-007.047 221₹22,004.64
Evaporator Flask 500 ml NS 29/32
Heidolph Evaporator Flask, 500 ml NS 29/32
500 ml41104800514-73000-007.047 222₹23,969.34
Evaporating flask 5000 ml NS 29/32
Heidolph Evaporating Flask, 5000 ml NS 29/32
5000 ml41104800514-78000-007.626 949₹101,640.48
Evaporator Flask 100 ml NS 29/32
Heidolph Evaporator Flask, 100 ml NS 29/32
100 ml41104800514-71000-007.047 220₹20,170.92
Evaporating flask 50 ml with NS 14/23 incl. transition piece and clamp
Heidolph Evaporating Flask, 50 ml, with NS 14/23 including Transition Piece and Clamp
50 ml41104800514-70000-006.206 660₹32,221.08
Evaporator flask 1000ml NS 29/32 for glass set V1 and V1/B
Heidolph Evaporator Flask, 1000ml NS 29/32 for Glass Set V1 and V1/B
1000 ml41104800514-74000-007.047 172₹28,684.62

Compare similar models

Rotary Evaporator Hei-VAP Core HL G5B-CH hand lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G5B-CH Hand Lift (CH-Plug)

₹986,803.32

Inc. GST

Manufacturer P/N

571-01510-04

Part Number

4.666 135

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G5B hand lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G5B Hand Lift (EU-Plug)

₹986,803.32

Inc. GST

Manufacturer P/N

571-01510-00

Part Number

4.666 093

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G5B-UK hand lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G5B-UK Hand Lift (UK-Plug)

₹986,803.32

Inc. GST

Manufacturer P/N

571-01510-03

Part Number

4.666 115

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G5-UK hand lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G5-UK Hand Lift (UK-Plug)

₹909,918.06

Inc. GST

Manufacturer P/N

571-01500-03

Part Number

4.666 110

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G5-CH hand lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G5-CH Hand Lift (CH-Plug)

₹909,918.06

Inc. GST

Manufacturer P/N

571-01500-04

Part Number

4.666 130

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G5 hand lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G5 Hand Lift (EU-Plug)

₹909,918.06

Inc. GST

Manufacturer P/N

571-01500-00

Part Number

4.666 088

Manufacturer

Heidolph

Glassware

Without coating
