Representative Image

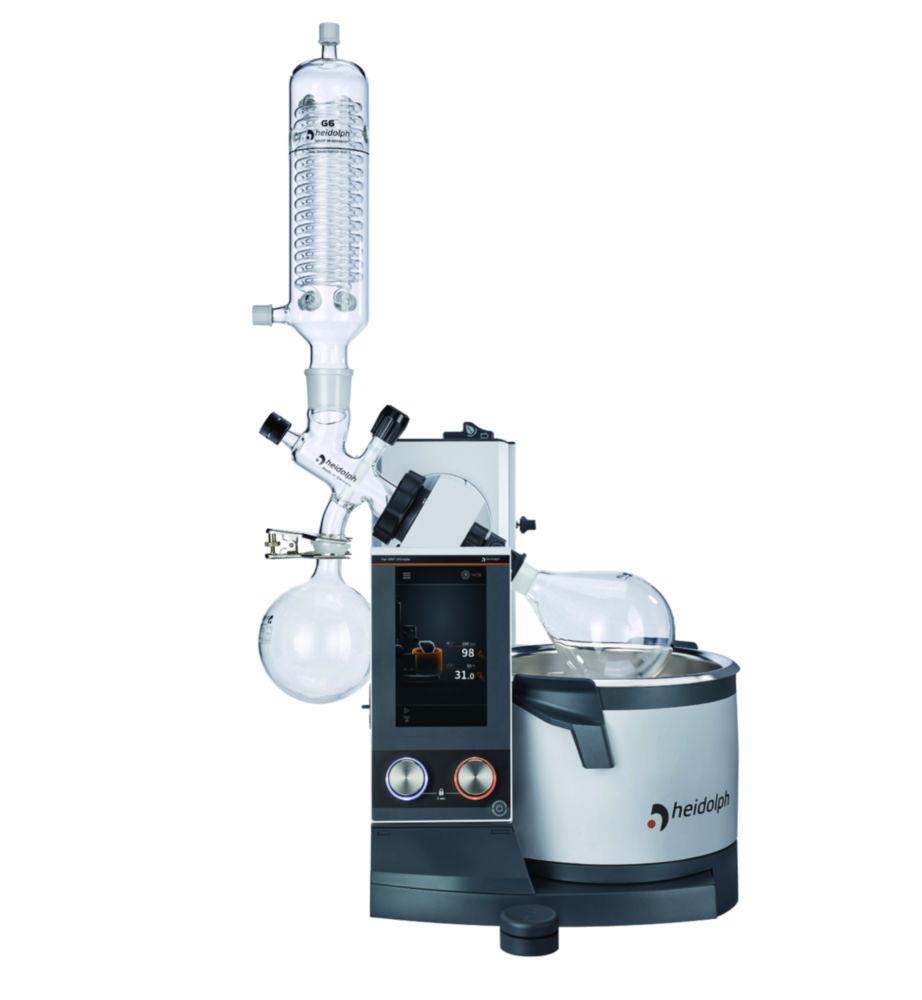

Heidolph Rotary Evaporator Hei-VAP Ultimate HL/G6, with Hand Lift

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
Condenser
Vertical
Cooling surface
1400 cm²
Depth
532 mm
Dimensions (WxDxH)
739 x 532 x 887 mm
Glassware
Without coating
Height
887 mm
Lift
Manual
Lifting path
155 mm
Max. speed
280 1/min
Max. temperature
210 °C

₹1,151,314.20

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Ultimate HL/G6, with Hand Lift is engineered for efficient and precise solvent evaporation in laboratory settings. Featuring a manual hand lift for controlled flask handling and a G6 vertical reflux condenser, this model is ideal for reflux distillation applications. The integrated 7" touch display allows for intuitive operation and monitoring of all parameters, enhancing user experience and process reliability.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Ultimate HL/G6 with Hand Lift
  • Glassware: G6 vertical reflux condenser with 1400 cm² cooling surface
  • Lift Type: Manual hand lift for precise flask positioning
  • Control System: 7" touch display with Basic and Advanced modes
  • Rotation Speed: 10 – 280 rpm
  • Heating Capacity: 1,300 W with a temperature range of ambient to 210 °C
  • Bath Volume: 4.5 liters
  • Max. Flask Size: 5 liters
  • Safety Features: Overheat protection with cut-off at 5 °C over set temperature via separate PT 1000 sensor
  • Interfaces: USB, Micro SD, LAN, and RS 232 for Lab 4.0 integration
  • Additional Features: Integrated solvent library, programmable ramps, and Dynamic AUTOaccurate Program (DAA) for automated evaporation
  • Application: Suitable for chemical, pharmaceutical, and research laboratories

The Heidolph Hei-VAP Ultimate HL/G6 with Hand Lift combines advanced features and user-friendly design to deliver reliable and efficient solvent evaporation for various laboratory applications.

Downloads

Compare similar models

Rotary evaporator Hei-VAP Ultimate HL/G6 with hand lift

Manufacturer P/N

575-01600-00

Part Number

4.669 016

Manufacturer

Heidolph

Glassware

Without coating

Rotary evaporator Hei-VAP Ultimate HL/G6B with hand lift, plastic-coated glass sets

Manufacturer P/N

575-01610-00

Part Number

4.669 021

Manufacturer

Heidolph

Glassware

Coated

Hei-VAP Ultimate HL G6B UK-plug
Available soon
Heidolph Hei-VAP Ultimate HL G6B, UK Plug

₹1,210,386.18

Inc. GST

Manufacturer P/N

575-01610-03

Part Number

4.703 427

Manufacturer

Heidolph

Glassware

Coated

Hei-VAP Ultimate HL G6 CH-plug
Available soon
Heidolph Hei-VAP Ultimate HL G6, CH Plug

₹1,151,314.20

Inc. GST

Manufacturer P/N

575-01600-04

Part Number

4.703 426

Manufacturer

Heidolph

Glassware

Without coating

Hei-VAP Ultimate HL G6 UK-plug
Available soon
Heidolph Hei-VAP Ultimate HL G6, UK Plug

₹1,151,314.20

Inc. GST

Manufacturer P/N

575-01600-03

Part Number

4.703 425

Manufacturer

Heidolph

Glassware

Without coating

Hei-VAP Ultimate HL G6B CH-plug
Available soon
Heidolph Hei-VAP Ultimate HL G6B, CH Plug

₹1,210,386.18

Inc. GST

Manufacturer P/N

575-01610-04

Part Number

4.703 428

Manufacturer

Heidolph

Glassware

Coated

More items to explore

Rotary Evaporators Hei-VAP Expert, with motor lift, cold trap

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUG5B574-01510-004.668 992₹1,172,401.98
EUG5574-01500-004.668 987₹1,095,385.74
CHG5B574-01510-044.703 371₹1,172,401.98
CHG5574-01500-044.703 369₹1,095,385.74
UKG5574-01500-034.703 368₹1,095,385.74
UKG5B574-01510-034.703 370₹1,172,401.98

Rotary Evaporators Hei-VAP Expert Control, with hand lift, cold trap

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUG5B573-02510-004.669 001₹1,356,690.84
EUG5573-02500-004.668 996₹1,279,543.62
UKG5B573-02510-034.703 350₹1,356,690.84
CHG5B573-02510-044.703 351₹1,356,690.84
UKG5573-02500-034.703 348₹1,279,543.62
CHG5573-02500-044.703 349₹1,279,543.62
