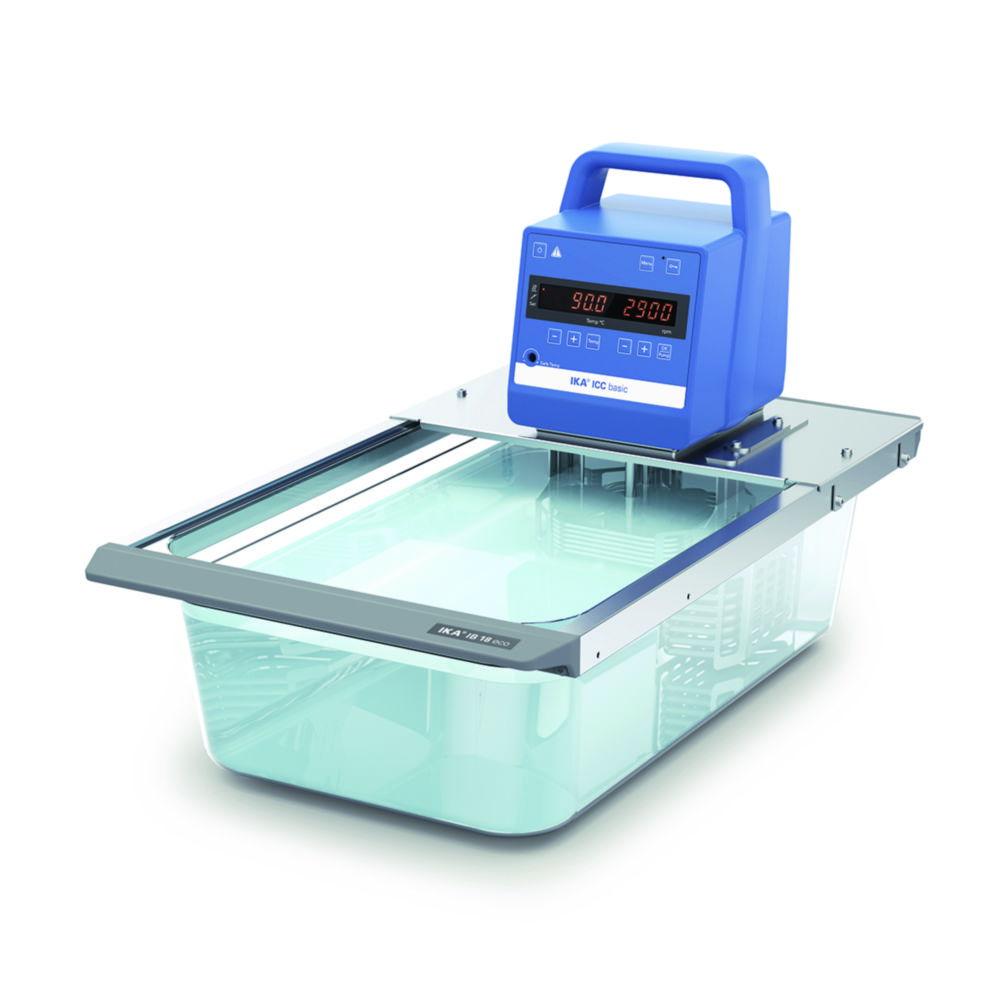

IKA Compact Immersion Circulator ICC basic eco 18 Package Thermostat and Chiller, 18 l eco bath
Representative image only

IKA Compact Immersion Circulator ICC basic eco 18 Package Thermostat and Chiller, 18 l eco bath

Sold by: Bishops Scientific Pvt Ltd
Available Soon
Part #: 4.656 122Manufacturer #: 0008035000
Estimated shipping time:Contact us via live chat or via contact us page

₹395,951.36

See the available (1) variant product
Product overview

The IKA Compact Immersion Circulator ICC basic eco 18 Package includes a reliable thermostat and chiller system with an 18 l eco bath. Designed for precise temperature control in laboratory environments, this system offers efficient heating and cooling capabilities. Suitable for liquid temperature control up to 100 °C, it supports both internal and external applications. Packages with cooling coil are available for temperature control below or near ambient temperature. The system features visual and acoustic warning functions for excess temperature, sub-level, and over-level, as well as LED displays for temperature and pump adjustment. User-friendly menu navigation is provided via push and turn buttons, along with adjustable safety circuits and calibration options.

Key Features:

  • Brand: IKA
  • Model: ICC basic eco 18 Package
  • Components: Thermostat and chiller with 18 l eco bath
  • Application: Ideal for laboratory temperature control processes
  • Design: Compact and user-friendly
  • Safety Features: Visual and acoustic warnings for temperature and liquid levels
  • Controls: LED display and push-turn button navigation
  • Interfaces: USB and RS 232
  • Calibration: Calibration option available

Scope of supply: Compact immersion thermostat, plastic bath, cover, bath bridge, pump connection set, cooling coil

The IKA Compact Immersion Circulator is a versatile solution for labs needing dependable and accurate thermal control.

Product Specifications
  • HS Code #90321020
  • Bath depth150 mm
  • Depth opening305 mm
  • Opening (WxD)245 x 305 mm
  • Ext. dim. (WxDxH)338 x 349 x 584 mm
  • Ext. depth349 mm
  • Ext. height584 mm
  • Ext. width338 mm
  • Power supply frequency50/60 Hz
  • Heating capacity2000 W
  • IP codeIP 21
  • Material bathPlastic
  • Max. delivery pressure0.3 bar
  • Max. suction pressure0.2 bar
  • Max. temperature100 °C
  • Max. voltage230 V
  • Max. volume bath18 l
  • Min. temperature+10 °C
  • Power supply230 V, 50/60 Hz
  • Temperature stability0,02 °C
  • TemperatureRT
  • TemperatureRT+10 ... 100 °C
  • TypeICC basic eco 18
  • Type of auxiliary energyMains connection
  • Type of displayLED
  • Volume bath18 l
  • Weight11.9 kg
  • Width opening245 mm
  • Manufacturer Article Number0008035000
