Representative Image

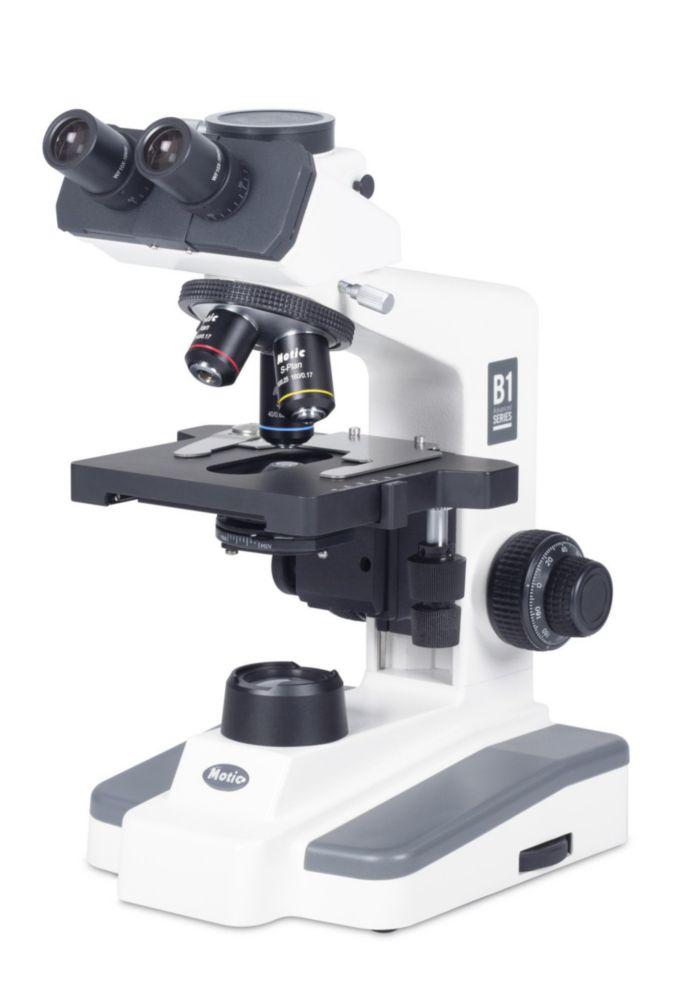

MOTIC Microscope B1-223E-SP Trinocular with 4X, 10X, and 40X Objective Lens

Brand:Motic

Inclination angle tube

Tube

Type

Specifications

Compare models
Condenser
Abbe 1,25
Inclination angle tube
30°
Light type
LED
Magnification objectives
4x, 10x, 40x
Max. voltage
240 V
Min. voltage
110 V
Power supply
110 ... 240 V
Revolving nosepiece
4-fold
Tube
Trinocular
Type
B1-223E-SP

₹137,921.94

Inc. GST

Available soon

Product description

The MOTIC Microscope B1-223E-SP Trinocular is a high-quality optical instrument designed for professional and academic use. Equipped with precision optics, this microscope delivers sharp, high-contrast images suitable for research and laboratory applications.

Key Features:

  • Brand: MOTIC
  • Swivelling Head: Trinocular head 30°, 360° rotating
  • Diopter Adjustment: Widefield eyepieces WF 10X/18mm with diopter adjustment on both eyepiece sockets
  • Nosepiece: Quadruple revolving nosepiece
  • Optical System: Semi-Plan objectives SP 4X, 10X, 40X S
  • Focusing System: Coaxial coarse and fine focusing system with tension adjustment
  • Mechanical Stage: Built-in low position coaxial rackless mechanical stage
  • Condenser: Focusable 1.25 N.A. Abbe condenser with iris diaphragm
  • Optical Control: LED illumination 3 W with intensity control
  • Design: Durable design for demanding laboratory environments
  • Application: Ideal for research, education, and professional microscopy work

Scope of Supply:

  • Microscope
  • Dust cover

The MOTIC B1-223E-SP Trinocular Microscope offers precision, versatility, and durability, making it an essential tool for laboratory professionals and educators.

Accessories

C-Mount camera adapter for B1-223E-SP

ProductDescriptionForMfr#Part#AvailabilityPrice
C-Mount camera adapter 0.5X for 1/3''B1-223E-SP12220202-056.237 216₹19,516.02

Compare similar models

Microscope B1-223E-SP Trinocular with 4X, 10X and 40X objective lens

Manufacturer P/N

1100100501127

Part Number

4.685 487

Manufacturer

Motic

Inclination angle tube

30°

Microscope B1-211E-SP Monocular with 4X, 10X and 40X objective lens

Manufacturer P/N

1100100501146

Part Number

4.685 577

Manufacturer

Motic

Inclination angle tube

45°

Microscope B1-220E-SP Binocular with 4X, 10X and 40X objective lens

Manufacturer P/N

1100100501157

Part Number

4.685 486

Manufacturer

Motic

Inclination angle tube

45°
