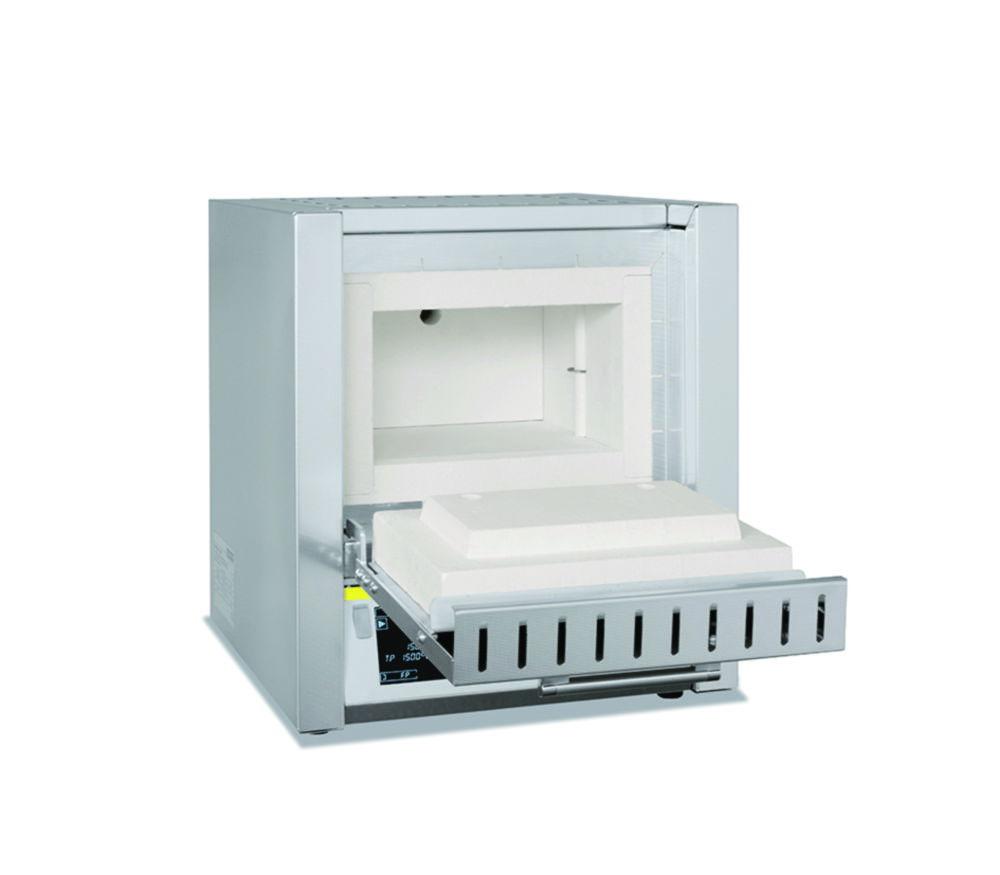

Nabertherm Muffle Furnace L 5/12 B510, 1200°C
Product overview
The Nabertherm Muffle Furnace L 5/12 B510 is a high-performance laboratory furnace designed for precise and efficient heating applications. With a maximum temperature of 1200°C, it is ideal for material testing, heat treatment, and other laboratory processes requiring controlled high temperatures. Built with durable insulation and high-quality heating elements, this muffle furnace ensures uniform temperature distribution and long service life.
Key Features:
- Brand: Nabertherm
- Model: L 5/12 B510
- Maximum Temperature: 1200°C
- Heating Elements: High-quality heating elements for uniform temperature distribution
- Insulation: High-performance insulation for energy efficiency
- Application: Suitable for material testing, heat treatment, and laboratory applications
- Design: Robust construction for durability and long-term use
The Nabertherm Muffle Furnace L 5/12 B510, 1200°C, is a reliable and efficient heating solution for laboratories requiring precise thermal processing.
Frequently Asked Questions
1. What is the Nabertherm Muffle Furnace L 5/12 B510, 1200°C used for?
It is a high-performance laboratory furnace designed for precise and efficient heating applications. With a maximum temperature of 1200°C, it is ideal for material testing, heat treatment, and other laboratory processes requiring controlled high temperatures. Built with durable insulation and high-quality heating elements, this muffle furnace ensures uniform temperature distribution and long service life.
2. Is this product suitable for material testing, heat treatment, and laboratory applications?
Yes. It is designed for material testing, heat treatment, and laboratory applications, and offers a maximum temperature of 1200°C to support this kind of work.
3. What maximum temperature does this product have?
It has a maximum temperature of 1200°C.
4. What heating elements and insulation does this product offer?
It offers high-quality heating elements for uniform temperature distribution, high-performance insulation for energy efficiency, robust construction for durability and long-term use and ceramic heating plates with integrated heating wire, splash and exhaust protected, easy to replace.
Product Specifications
- HS Code #85141980
- Depth int.170 mm
- Type of doorFlap door
- Ext. dim. (WxDxH)385 x 390 x 460 mm
- Ext. depth390 mm
- Ext. height460 mm
- Ext. width385 mm
- Power supply frequency50/60 Hz
- Height int.130 mm
- Int. Dim. (WxDxH)200 x 170 x 130 mm
- Int. width200 mm
- Max. temperature1200 °C
- Max. voltage230 V·1/N/PE
- Nominal capacity5 l
- Plug typeEU
- Power supply230 V·1/N/PE, 50/60 Hz
- Rated capacity2400 W
- TypeL 5/12/B510
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight30 kg
Downloads
- LabFriend 6.223 409 Copy of laboratory_english.pdfDownload
