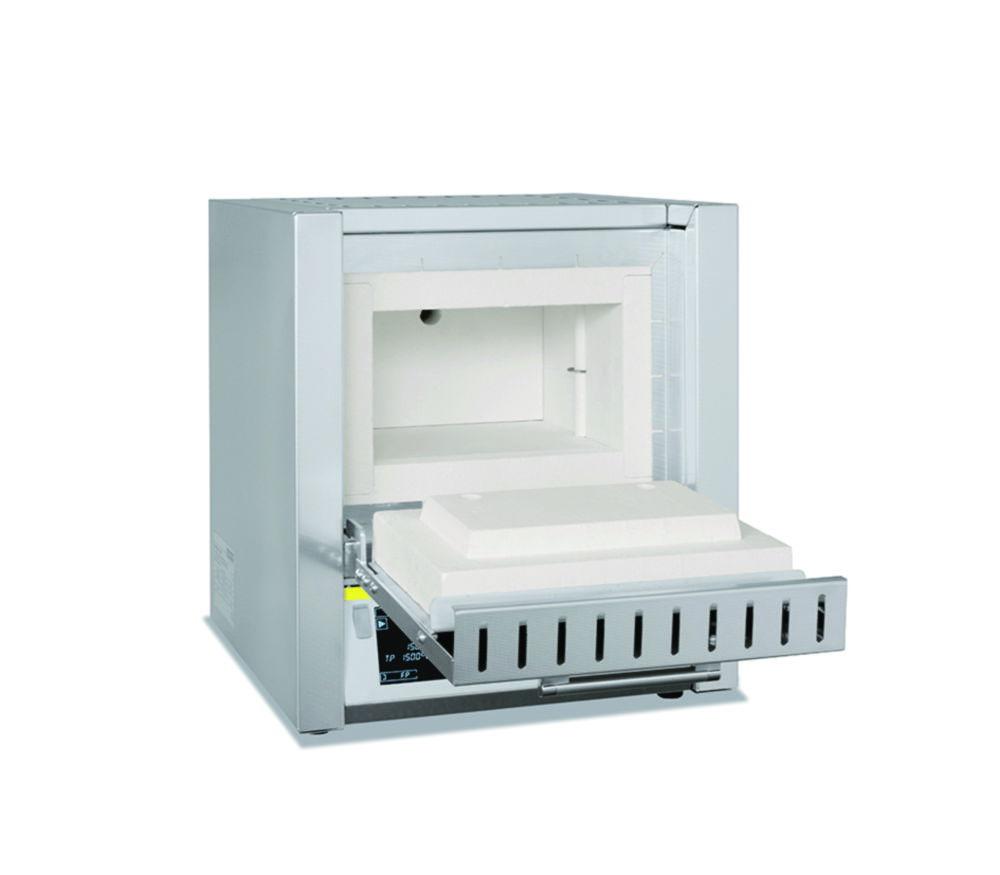

Nabertherm Muffle Furnace L 9/12/C550, Max Temperature 1200°C
Product overview
The Nabertherm Muffle Furnace L 9/12/C550 is a reliable high-temperature furnace designed to meet the needs of laboratory and industrial applications. With a maximum temperature of 1200°C, this furnace is ideal for tasks such as ashing, sintering, and heat treatment. It offers excellent thermal efficiency and is engineered for precise temperature control, making it perfect for demanding applications in various scientific and industrial sectors.
Key Features:
- Brand: Nabertherm
- Model: L 9/12/C550
- Max Temperature: 1200°C, designed for high-performance heat treatment
- Energy Efficiency: Designed to maximize energy retention and minimize heat loss for cost-effective operation
- Applications: Suitable for ashing, sintering, and heat treatment of materials in scientific and industrial settings
- Compact Design: Space-saving and robust, suitable for a wide range of applications
The Nabertherm L 9/12/C550 Muffle Furnace provides efficient and precise heat treatment, making it an essential tool for laboratories, research institutions, and industrial processes.
Frequently Asked Questions
1. What is the Nabertherm Muffle Furnace L 9/12/C550, Max Temperature 1200°C used for?
It is a reliable high-temperature furnace designed to meet the needs of laboratory and industrial applications. With a maximum temperature of 1200°C, this furnace is ideal for tasks such as ashing, sintering, and heat treatment. It offers excellent thermal efficiency and is engineered for precise temperature control, making it perfect for demanding applications in various scientific and industrial sectors.
2. Is this product suitable for ashing, sintering, and heat treatment of materials in scientific and industrial settings?
Yes. It is designed for ashing, sintering, and heat treatment of materials in scientific and industrial settings, and offers a max temperature of 1200°C, designed for high-performance heat treatment to support this kind of work.
3. What max temperature does this product have?
It has a max temperature of 1200°C, designed for high-performance heat treatment.
4. What energy efficiency and compact design does this product offer?
It offers the following key features: designed to maximize energy retention and minimize heat loss for cost-effective operation, space-saving and robust, suitable for a wide range of applications, ceramic heating plates with integrated heating wire, splash and exhaust protected, easy to replace and heating from two sides (three sides for interior volumes of 24 and 40 l).
Product Specifications
- HS Code #85141980
- Depth int.240 mm
- Type of doorFlap door
- Ext. dim. (WxDxH)415 x 455 x 515 mm
- Ext. depth455 mm
- Ext. height515 mm
- Ext. width415 mm
- Power supply frequency50/60 Hz
- Height int.170 mm
- Int. Dim. (WxDxH)230 x 240 x 170 mm
- Int. width230 mm
- Max. temperature1200 °C
- Max. voltage230 V·1/N/PE
- Nominal capacity9 l
- Plug typeEU
- Power supply230 V·1/N/PE, 50/60 Hz
- Rated capacity3000 W
- TypeL 9/12/C550
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight35 kg
