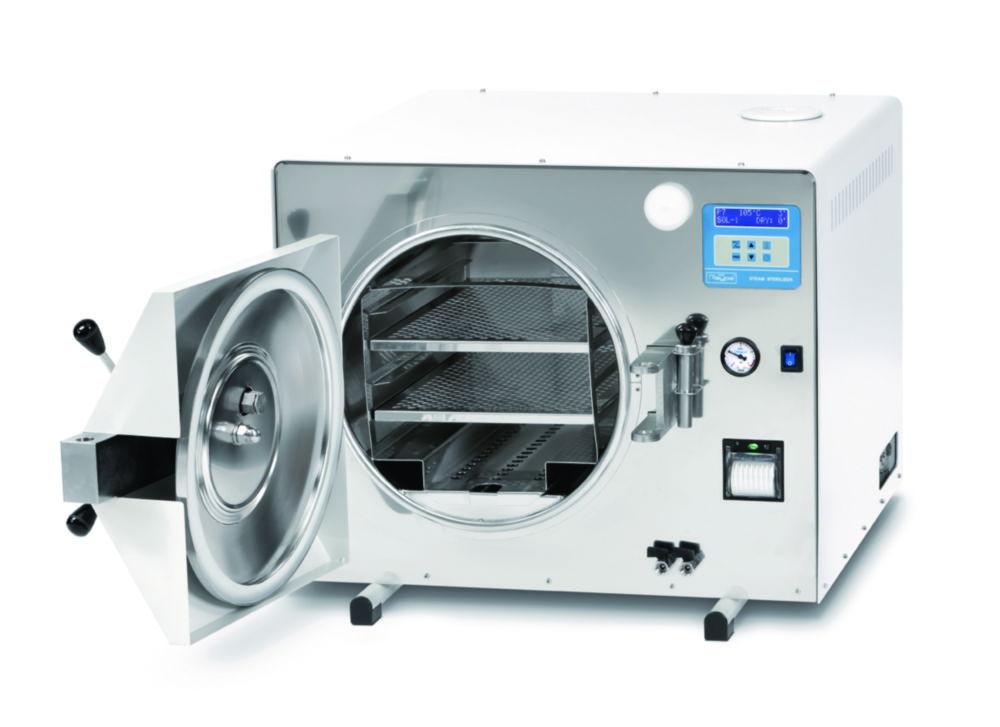

Automatic autoclaves AHS-75-DRY
Representative image only

Automatic autoclaves AHS-75-DRY

Sold by: Bishops Scientific Pvt Ltd
Available Soon
Part #: 9.851 888Manufacturer #: AHS-75-DRY
Estimated shipping time:Contact us via live chat or via contact us page

₹2,117,815.62

See the available (2) variant products

Product overview

This autoclave is microprocessor controlled and monitored with 10 sterilisation programmes of which 4 are fixed and 6 are freely selectable and has bacteriological filters included by default.
  • Operating temperature range 100 °C to 134 °C
  • On request, also available with B Class
  • RS 232 interface
  • Fully automatic functions
  • With water reservoir, pre-vacuum and drying
  • Case and lid shrouding are AISI 304 stainless steel
  • Sterilisation chamber, lid and sealing system are AISI 316 stainless steel
  • Electrical heating with protected heating elements
  • Safety pressure valve
  • Safety thermostat
  • Automatic steam controlled by Touch Screen microprocessor
  • Manual valves for emptying the sterilisation chamber and for draining steam
  • Equipped with mesh stand on the chamber base and trays
  • Supply requirements: 230 V 16 A single phase

Product Specifications

  • HS Code #84192000
  • Depth int.600 mm
  • Dim. Int. (Ø x H)360 x 600 mm
  • Ext. dim. (WxDxH)805 x 1,005 x 650 mm
  • Ext. depth1005 mm
  • Ext. height650 mm
  • Ext. width805 mm
  • Power supply frequency50/60 Hz
  • Heating capacity3200 W
  • Int. Ø360 mm
  • LoadingHorizontal
  • Material housingStainless steel
  • Material interiorStainless steel
  • Max. temperature134 °C
  • Max. voltage230 V
  • Min. temperature100 °C
  • Nominal capacity75 l
  • Power supply230 V, 50/60 Hz
  • Temperature100 ... 134 °C
  • TypeAHS-75 DRY
  • Type of auxiliary energyMains connection
  • Weight126 kg
