Representative Image

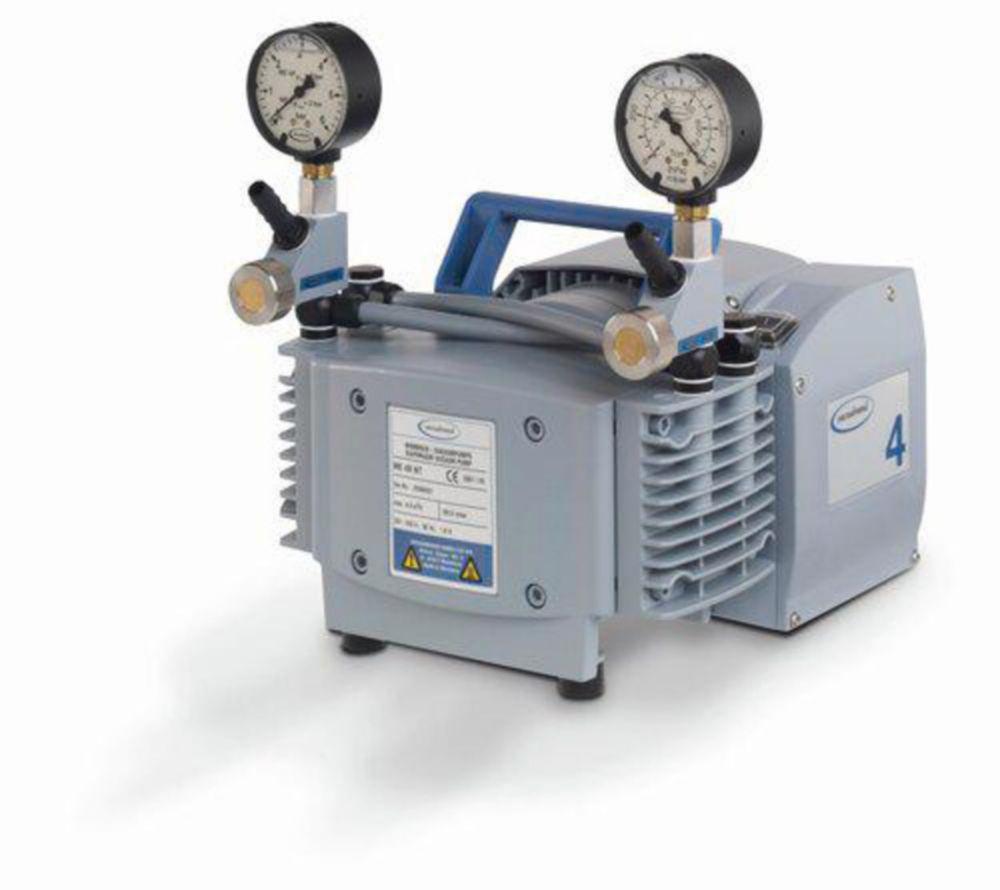

Vacuubrand Diaphragm Pump ME 4R NT, One-Stage, 230 V, 50 Hz with CEE Plug

Plug type

Specifications

Compare models
Connection pressure side
DN 8-10 mm
Connection suction side
DN 8-10 mm
Depth
254 mm
Dimensions (WxDxH)
268 x 254 x 290 mm
Flow rate
3.8 m³/h
Height
290 mm
No. of stages
1
Plug type
EU
Type
ME 4R NT
Type of auxiliary energy
Mains connection

₹386,914.92

Inc. GST

Available soon

Product description

The Vacuubrand Diaphragm Pump ME 4R NT is a high-performance one-stage diaphragm pump designed for laboratory applications requiring continuous, oil-free pumping and evacuation of non-corrosive gases. Operating at 230 V and 50 Hz, this pump delivers a maximum pumping speed of 4 m³/h and an ultimate vacuum of 100 mbar. It is equipped with a CEE plug, making it suitable for European power systems.

Key Features:

  • Brand: Vacuubrand
  • Type: Diaphragm pump
  • Design: One-stage operation for efficient vacuum generation
  • Voltage: 230 V, 50 Hz
  • Cable Type: CEE plug for compatibility with European systems
  • Maximum Pumping Speed: 4 m³/h
  • Ultimate Vacuum: 100 mbar
  • Noise Level: 45 dBA
  • Dimensions: 254 x 268 x 290 mm
  • Weight: 11.5 kg
  • Applications: Vacuum ovens, pressure and vacuum filtrations, generation of compressed, absolutely oil-free air

This diaphragm pump is an excellent choice for laboratories requiring a reliable and efficient solution for non-corrosive gas applications.



Frequently Asked Questions

1. What is the Vacuubrand Diaphragm Pump ME 4R NT, One-Stage, 230 V, 50 Hz with CEE Plug used for?

It is a high-performance one-stage diaphragm pump designed for laboratory applications requiring continuous, oil-free pumping and evacuation of non-corrosive gases. Operating at 230 V and 50 Hz, this pump delivers a maximum pumping speed of 4 m³/h and an ultimate vacuum of 100 mbar. It is equipped with a CEE plug, making it suitable for European power systems.

2. Is this product suitable for Vacuum ovens, pressure and vacuum filtrations, generation of compressed, absolutely oil-free air?

Yes. It is designed for Vacuum ovens, pressure and vacuum filtrations, generation of compressed, absolutely oil-free air, and offers a voltage of 230 V, 50 Hz and a maximum pumping speed of 4 m³/h to support this kind of work.

3. What voltage and maximum pumping speed does this product have?

It has a voltage of 230 V, 50 Hz, a maximum pumping speed of 4 m³/h and an ultimate vacuum of 100 mbar.

4. What type and design does this product offer?

It offers diaphragm pump, one-stage operation for efficient vacuum generation, CEE plug for compatibility with European systems and improved performance, increased pumping speed and better ultimate vacuum Extend applications with non-aggressive gases whether used in the laboratory or for industrial processes.

Downloads

Accessories

Sealing kit NT for chemistry diaphragm pumps NT

ProductForUNSPSCMfr#Part#AvailabilityPrice
MZ 2C NT40151502206968696.241 476₹60,643.74
MD 4C NT40151502206968706.239 489₹115,655.34
ME 4 NT, MZ 2 NT40151502206968609.880 902₹30,518.34
ME 4C NT40151502206968649.880 906₹35,233.62
MZ 2D NT40151502206968639.880 904₹30,518.34
MV 2 NT / MD 4 NT40151502206968619.880 905₹58,548.06
ME 8 NT40151502206968629.880 903₹48,331.62
ME 8C NT40151502206968679.880 907₹68,502.54

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081₹16,503.48
PVC34.9 mm206860634.714 084₹45,450.06
PVC38.1 mm206860654.714 085₹53,046.90
PVC15.9 mm206860614.714 082₹19,254.06
PVC22.3 mm206860624.714 083₹23,052.48

Compare similar models

Diaphragm pump ME 4R NT one-stage, 230 V~ 50 Hz plug CEE

Manufacturer P/N

20731100

Part Number

9.880 884

Manufacturer

VACUUBRAND​

Plug type

EU

Diaphragm pump ME 4R NT, one stage, certification (NRTL): C/US230 V / 50-60 Hz, mains cable UK/IN

Manufacturer P/N

20731102

Part Number

4.670 423

Manufacturer

VACUUBRAND​

Plug type

UK

Diaphragm pump ME 4R NT, one stage, certification (NRTL): C/US100-120 V / 50-60 Hz, US mains cable

Manufacturer P/N

20731103

Part Number

4.670 424

Manufacturer

VACUUBRAND​

Plug type

US
