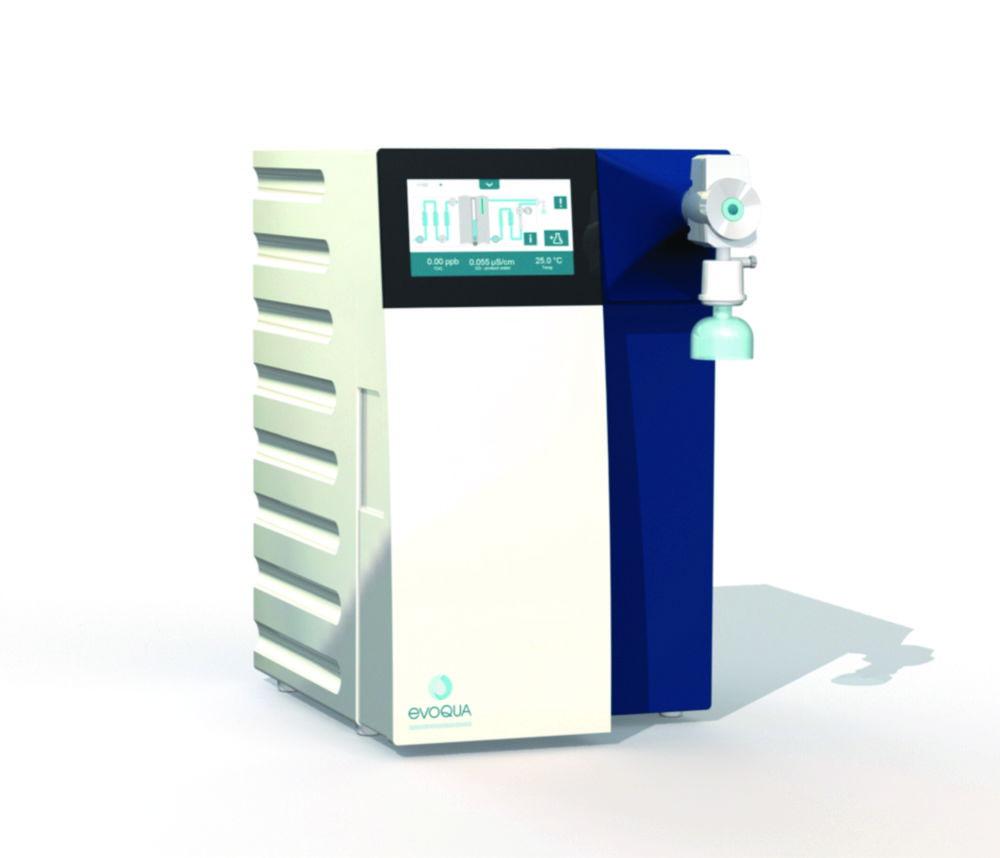

Evoqua Ultra Clear™ TP ED UV TM

The Evoqua Ultra Clear™ TP ED UV TM is an advanced ultrapure water purification system designed for laboratories requiring Type I water directly from deionized water sources. This system integrates ultraviolet (UV) sterilization, Total Organic Carbon (TOC) monitoring, and an electronic dispenser to ensure consistent high-quality water output. It is specifically designed for deionised water feed with conductivity less than 20 µS/cm, delivering up to 2 L/min of ultrapure water. The system features user-guided, integrated disinfection and energy-saving modes, with temperature compensation that can be switched off as needed. Wall mounting capability offers flexible installation options.

Key Features:

• Brand: Evoqua
• Model: Ultra Clear™ TP ED UV TM
• Part Number: W3T276073
• Water Quality: Delivers ASTM Type I water with resistivity of 18.2 MΩ·cm (0.055 µS/cm)
• TOC Level: < 3 ppb
• Flow Rate: Up to 2 L/min for ultrapure water
• Display: 7" multi-color touch screen for intuitive operation
• Connectivity: USB, SD card, printer, and Modbus interface
• Dimensions (W x D x H): 340 x 550 x 535 mm
• Weight: 23 kg
• Power Supply: 100–240 V, 50/60 Hz
• Additional Features: Integrated disinfection mode, energy-saving mode, wall mounting capability
• Temperature Compensation: Can be switched off

Scope of Supply:

• Ultrapure water system
• 1 set of modules and filters

This system is ideal for applications requiring high-purity water, such as molecular biology, analytical chemistry, and microbiology, ensuring reliable and efficient performance.

Frequently Asked Questions

1. What is the Evoqua Ultra Clear™ TP ED UV TM used for?

It is an advanced ultrapure water purification system designed for laboratories requiring Type I water directly from deionized water sources. This system integrates ultraviolet (UV) sterilization, Total Organic Carbon (TOC) monitoring, and an electronic dispenser to ensure consistent high-quality water output. It is specifically designed for deionised water feed with conductivity less than 20 µS/cm, delivering up to 2 L/min of ultrapure water. The system features user-guided, integrated disinfection and energy-saving modes, with temperature compensation that can be switched off as needed. Wall mounting capability offers flexible installation options.

2. Is the Evoqua Ultra Clear™ TP ED UV TM suitable for laboratories requiring Type I water directly from deionized water sources?

Yes. It is designed for laboratories requiring Type I water directly from deionized water sources, and offers a TOC level of < 3 ppb and a flow rate of up to 2 L/min for ultrapure water to support this kind of work.

3. What TOC level and flow rate does the Evoqua Ultra Clear™ TP ED UV TM have?

It has a TOC level of < 3 ppb, a flow rate of up to 2 L/min for ultrapure water and a display of 7" multi-color touch screen for intuitive operation, and is supplied under manufacturer part number W3T276073.

4. What water quality and connectivity does the Evoqua Ultra Clear™ TP ED UV TM offer?

It offers ASTM Type I water with resistivity of 18.2 MΩ·cm (0.055 µS/cm), USB, SD card, printer, and Modbus interface, integrated disinfection mode, energy-saving mode, wall mounting capability and can be switched off.

5. How does the Evoqua Ultra Clear™ TP ED UV TM compare with the Stakpure Ultra Pure Water System OmniaPure-W xs touch UV-TOC/UF?

For optical imaging applications, the Evoqua Ultra Clear™ TP ED UV TM is differentiated by water quality Delivers ASTM Type I water with resistivity of 18.2 MΩ·cm (0.055 µS/cm) and toc level < 3 ppb. The Stakpure Ultra Pure Water System OmniaPure-W xs touch UV-TOC/UF from Stakpure is a broader alternative in the same application area rather than a direct equivalent. Compare the required specifications, compatibility and workflow requirements before selection.
