Representative Image

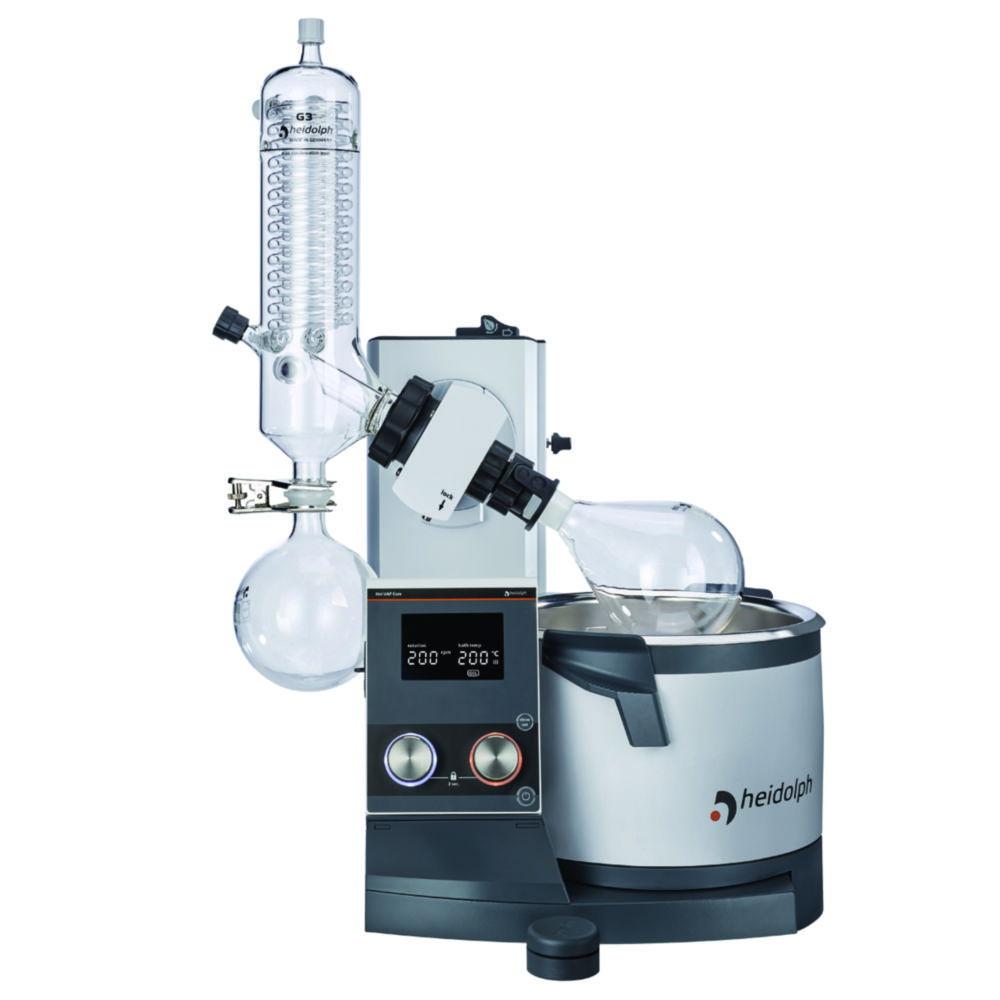

Heidolph Rotary Evaporator Hei-VAP Core HL G3-CH Hand Lift (CH-Plug)

Brand:Heidolph

Cooling surface

Dimensions (WxDxH)

Glassware

Height

Max. voltage

Plug type

Power supply

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Vertical
Cooling surface
1400 cm²
Depth
477 mm
Dimensions (WxDxH)
739 x 477 x 845 mm
Glassware
Without coating
Height
845 mm
Lift
Manual
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V

₹785,356.08

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core HL G3-CH Hand Lift (CH-Plug) is engineered for precise and efficient solvent evaporation in laboratory settings. Featuring intuitive manual operation and robust Heidolph construction, this model is well-suited for distillation, concentration, and solvent recovery. The unit includes a CH-compliant plug and offers superior adjustability and control for routine lab workflows.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core HL G3-CH with hand lift (CH-Plug)
  • Lift Mechanism: Manual hand lift for precise flask positioning
  • Display: Clear digital display for monitoring current and set values
  • Controls: Two separate knobs for rotation speed and heating temperature with LED ring indicators
  • Safety: Activated lock feature to prevent inadvertent changes; residual heat warning above 50 °C
  • Design: Ergonomic heating bath handles; grease-free sealing technology for low-maintenance operation
  • Adjustability: Immersion depth adjustable up to 155 mm; tilt angle adjustable from 20° to 80°
  • Optional Features: Ventilation cap with PTFE inlet and no ground joints; optional replenishment valve and detachable control panel with cable extension
  • Plug Type: CH plug for Swiss electrical standards

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

The Hei-VAP Core HL G3-CH combines performance, safety, and ergonomic design—making it an essential tool for Swiss laboratories performing solvent evaporation and distillation with precision and reliability.

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675₹259,471.38
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
3000 ml41104800514-76300-007.047 224₹61,953.54
2000 ml41104800514-75000-007.047 223₹37,591.26
250 ml41104800514-72000-007.047 221₹22,004.64
500 ml41104800514-73000-007.047 222₹23,969.34
5000 ml41104800514-78000-007.626 949₹101,640.48
100 ml41104800514-71000-007.047 220₹20,170.92
50 ml41104800514-70000-006.206 660₹32,221.08
1000 ml41104800514-74000-007.047 172₹28,684.62
