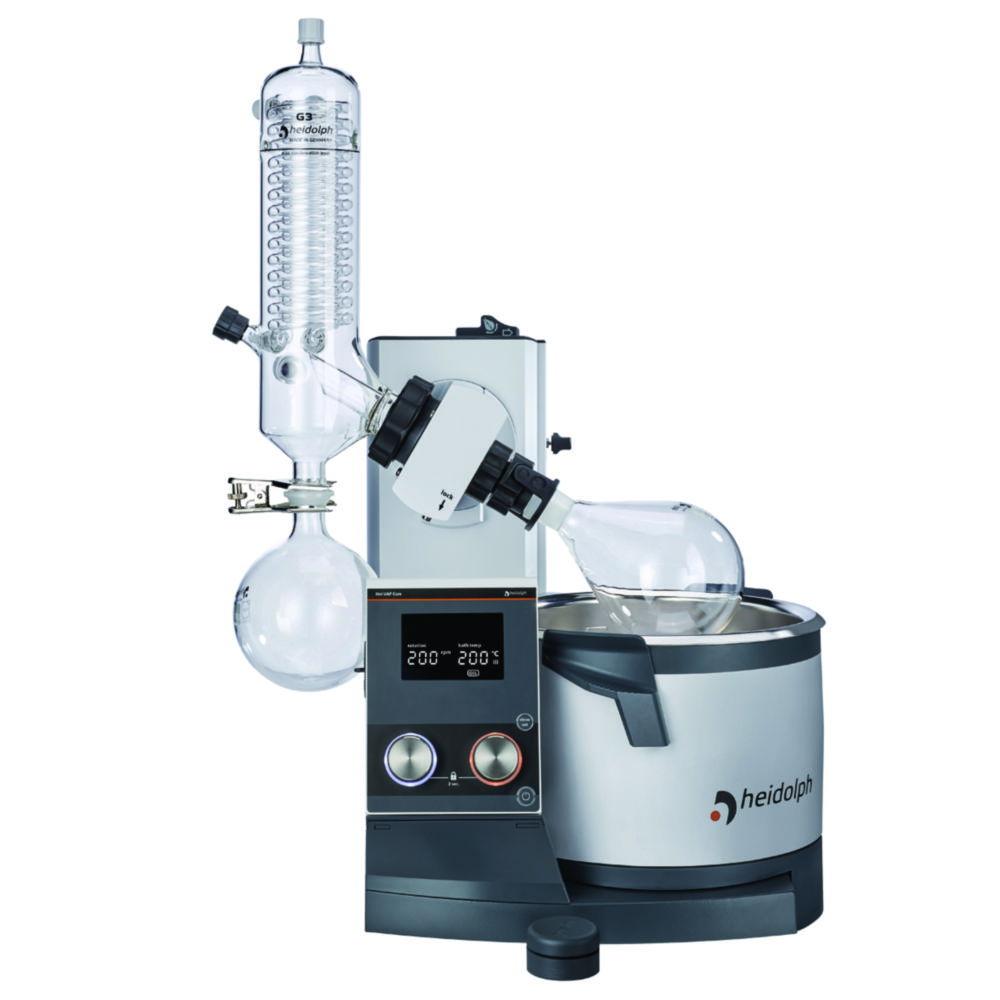

Heidolph Rotary Evaporator Hei-VAP Core HL G3-UK Hand Lift (UK-Plug)

Brand:Heidolph

Cooling surface

Dimensions (WxDxH)

Glassware

Height

Max. voltage

Plug type

Power supply

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Vertical
Cooling surface
1400 cm²
Depth
477 mm
Dimensions (WxDxH)
739 x 477 x 845 mm
Glassware
Without coating
Height
845 mm
Lift
Manual
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V

₹785,356.08

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core HL G3-UK Hand Lift (UK-Plug) is built for efficient and precise solvent evaporation in laboratory environments. Designed with a clear digital display, intuitive manual controls, and Heidolph’s renowned engineering, this model is ideal for distillation, concentration, and solvent recovery processes. The UK plug ensures full compatibility with UK electrical systems.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core HL G3-UK with hand lift (UK-Plug)
  • Display: Digital screen for monitoring current and set values
  • Controls: Two separate knobs for rotation speed and heating temperature with LED ring indicators
  • Safety Features: Lock function to prevent unintended changes; residual heat warning when temperature exceeds 50 °C
  • Lift Mechanism: Manual hand lift for smooth and precise adjustment
  • Adjustability: Immersion depth up to 155 mm; flask tilt angle adjustable from 20° to 80°
  • Design Benefits: Ergonomic heating bath handles; grease-free sealing for low maintenance; robust fire-resistant aluminum housing
  • Optional Compatibility: PTFE inlet ventilation cap with optional replenishment valve; detachable operating panel available with optional cable extension

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

The Hei-VAP Core HL G3-UK rotary evaporator delivers reliability, safety, and precision—making it an essential instrument for laboratories across the UK performing routine and demanding solvent evaporation tasks.

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675₹259,471.38
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
3000 ml41104800514-76300-007.047 224₹61,953.54
2000 ml41104800514-75000-007.047 223₹37,591.26
250 ml41104800514-72000-007.047 221₹22,004.64
500 ml41104800514-73000-007.047 222₹23,969.34
5000 ml41104800514-78000-007.626 949₹101,640.48
100 ml41104800514-71000-007.047 220₹20,170.92
50 ml41104800514-70000-006.206 660₹32,221.08
1000 ml41104800514-74000-007.047 172₹28,684.62
