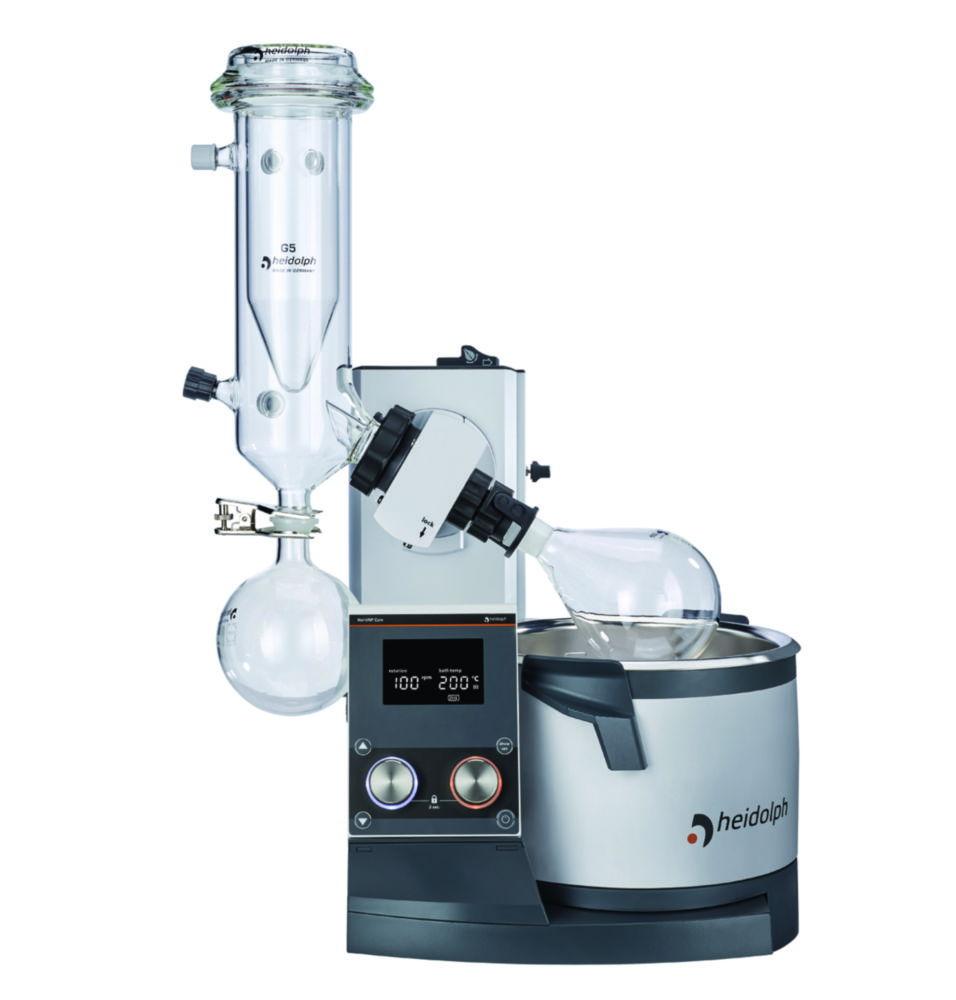

Heidolph Rotary Evaporator Hei-VAP Core ML G5B, Motor Lift (EU-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
Cooling surface
1400 cm²
Glassware
Coated
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT
Plug type
EU

₹1,032,384.36

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G5B with motor lift is engineered for efficient and safe distillation processes. Equipped with a G5B glassware set and a smooth-operating motorized lift, it is ideal for routine applications in chemical, biological, and pharmaceutical labs.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G5B
  • Lift Mechanism: Motor lift for user convenience and consistent positioning
  • Glassware Configuration: G5B set designed for high-efficiency condensation
  • Plug Type: EU plug
  • Usage: Suitable for solvent recovery and concentration in laboratory workflows
  • Display: Clear digital display for monitoring current values, with separate button to display set values
  • Controls: Two separate operating knobs for adjusting rotation speed and heating temperature with LED ring light system for activity indication
  • Safety: Activated lock feature prevents inadvertent adjustments; residual heat indicator when >50 °C
  • Standby Function: Button to stop all functions and lift the evaporator flask out of the heating bath (motor lift models only)
  • Ergonomics: Heating bath with ergonomically optimized handles for secure grip
  • Adjustability: Immersion depth adjustable up to 155 mm; tilt angle adjustable from 20° to 80°
  • Sealing Technology: Grease-free operation enabled by innovative sealing technology
  • Ventilation Cap: PTFE inlet, free of ground joints; optionally available with replenishment valve
  • Optional Accessories: Detachable operating panel for use outside closed fume hoods; optional cable extension

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

Built to Heidolph’s high-quality standards, the Hei-VAP Core ML G5B ensures reliability, user safety, and precise evaporation performance.

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675₹259,471.38
20 l+90 °C569-00610-009.812 665₹212,580.54

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
3000 ml41104800514-76300-007.047 224₹61,953.54
2000 ml41104800514-75000-007.047 223₹37,591.26
250 ml41104800514-72000-007.047 221₹22,004.64
500 ml41104800514-73000-007.047 222₹23,969.34
5000 ml41104800514-78000-007.626 949₹101,640.48
100 ml41104800514-71000-007.047 220₹20,170.92
50 ml41104800514-70000-006.206 660₹32,221.08
1000 ml41104800514-74000-007.047 172₹28,684.62
