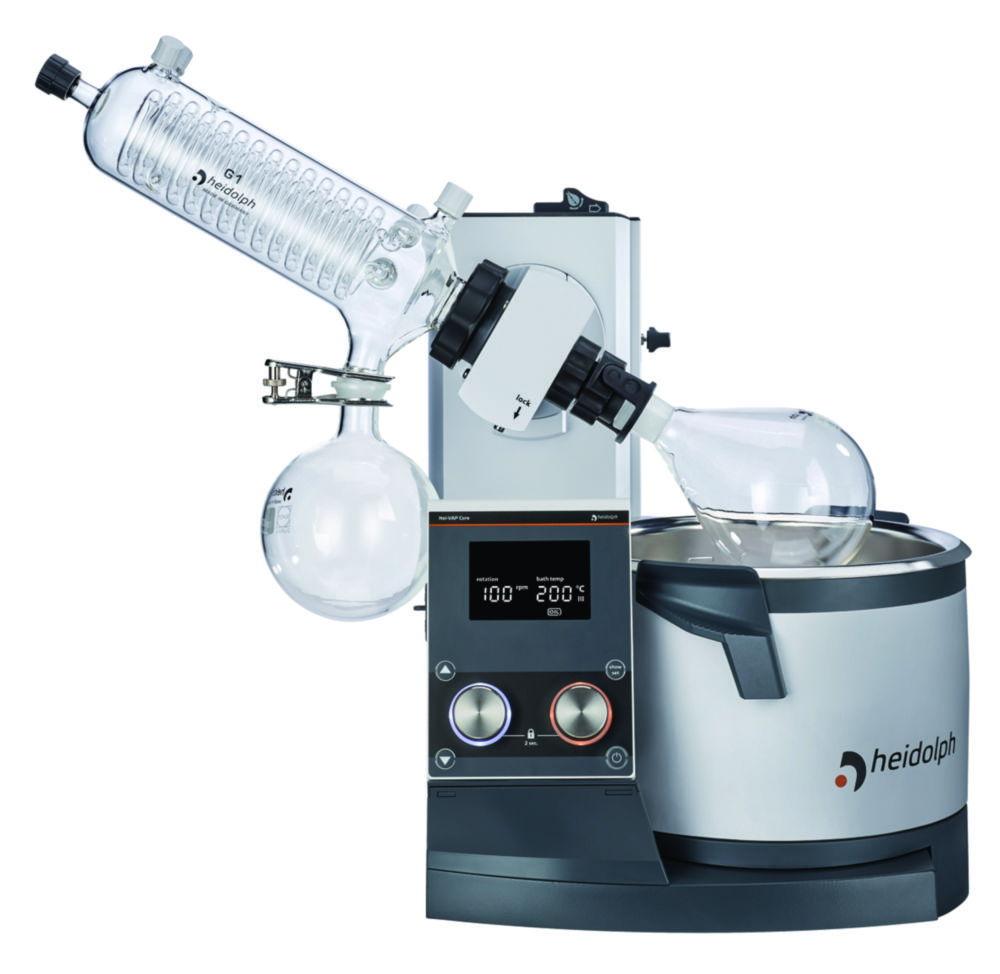

Heidolph Rotary Evaporator Hei-VAP Core ML G1B-CH Motor Lift (CH-Plug)

The Heidolph Rotary Evaporator Hei-VAP Core ML G1B-CH Motor Lift (CH-Plug) is engineered for efficient and reliable solvent evaporation in laboratory settings. Featuring a clear digital display, separate knobs for rotation speed and heating temperature, and an LED ring light system for activity indication, this unit ensures precise control and user-friendly operation. The motor lift mechanism allows for easy adjustment of immersion depth up to 155 mm and tilt angle from 20° to 80°, accommodating various experimental needs.

Key Features:

• Brand: Heidolph
• Display: Clear digital display for monitoring current and set values
• Controls: Separate knobs for rotation speed and heating temperature with LED indicators
• Safety: Activated lock feature to prevent inadvertent adjustments; residual heat indicator when >50 °C
• Standby Function: Stops all functions and lifts the evaporator flask out of the heating bath
• Design: Ergonomically optimized heating bath handles for secure handling; grease-free operation with innovative sealing technology
• Adjustability: Immersion depth up to 155 mm; tilt angle from 20° to 80°
• Ventilation Cap: PTFE inlet, free of ground joints; optionally available with replenishment valve
• Optional Accessories: Cable extension and detachable control panel for use outside closed fume hoods

Scope of Supply:

• Flask clamp Easy-Clip
• Vapour tube
• Ventilation cap
• Heating bath
• 1-l receiving flask
• 1-l evaporating flask
• Supplied condenser as indicated

This rotary evaporator is an indispensable tool for laboratories requiring precise, safe, and efficient solvent evaporation solutions with the convenience of motorized lift operation.

Frequently Asked Questions

1. What is the Heidolph Rotary Evaporator Hei-VAP Core ML G1B-CH Motor Lift used for?

It is engineered for efficient and reliable solvent evaporation in laboratory settings. Featuring a clear digital display, separate knobs for rotation speed and heating temperature, and an LED ring light system for activity indication, this unit ensures precise control and user-friendly operation. The motor lift mechanism allows for easy adjustment of immersion depth up to 155 mm and tilt angle from 20° to 80°, accommodating various experimental needs.

2. Is this product suitable for the laboratory application described by the manufacturer?

Yes. It is designed for the laboratory application described by the manufacturer, and offers 1-l receiving flask and 1-l evaporating flask to support this kind of work.

3. What specifications does this product have?

It has 1-l receiving flask and 1-l evaporating flask.

4. What display and controls does this product offer?

It offers clear digital display for monitoring current and set values, separate knobs for rotation speed and heating temperature with LED indicators, activated lock feature to prevent inadvertent adjustments; residual heat indicator when >50 °C and stops all functions and lifts the evaporator flask out of the heating bath.
