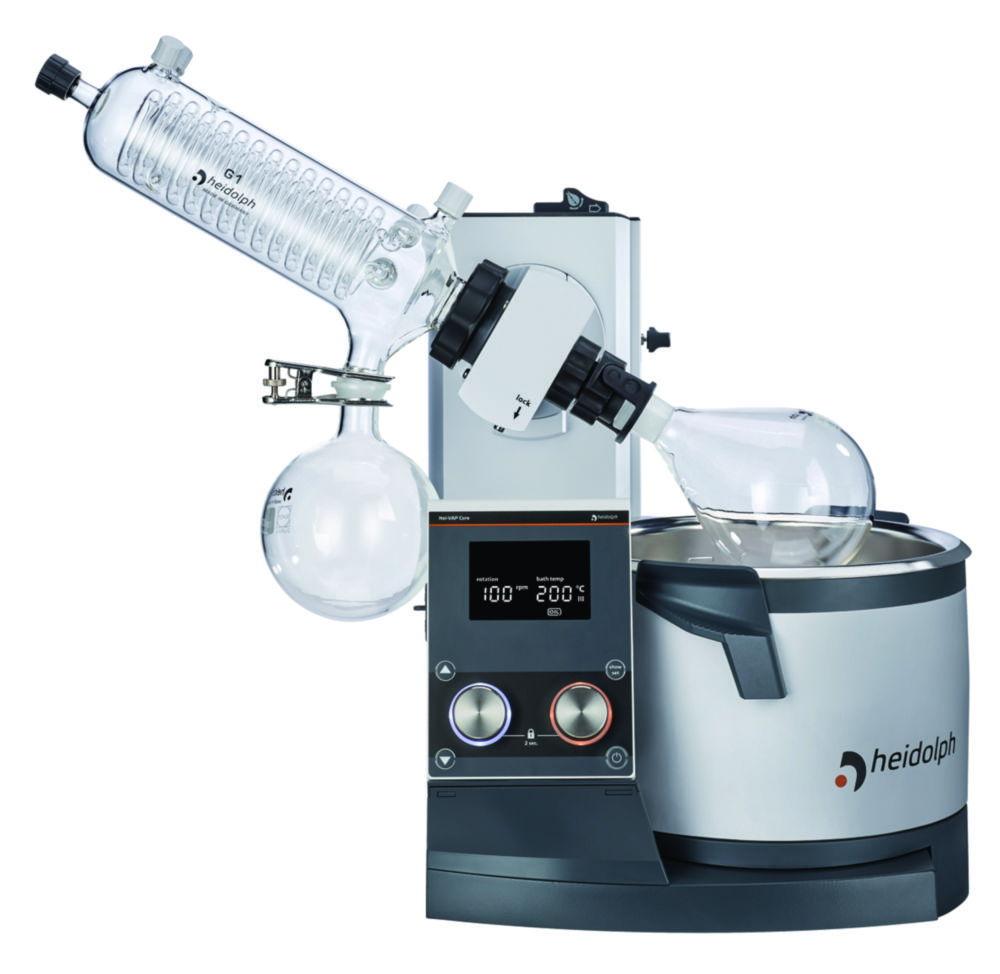

Heidolph Rotary Evaporator Hei-VAP Core ML G1B-UK Motor Lift (UK-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
Condenser
Diagonal
Cooling surface
1400 cm²
Glassware
Coated
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT

₹835,914.36

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G1B-UK Motor Lift (UK-Plug) is a high-performance evaporator designed for precision solvent evaporation in laboratory settings. Featuring a motorized lift mechanism and UK-Plug compatibility, this model allows for easy height adjustment and consistent, hands-free operation. It is ideal for distillation, concentration, and solvent recovery tasks, providing reliable performance for routine laboratory workflows.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G1B-UK with motor lift (UK-Plug)
  • Application: Suitable for solvent evaporation, distillation, and concentration
  • Lift Mechanism: Motorized lift for automated and precise height control
  • Display: Clear digital display for monitoring current and set values
  • Controls: Separate knobs for rotation speed and heating temperature with LED ring light indicators
  • Safety Features: Activated lock feature to prevent inadvertent adjustments; residual heat indicator when >50 °C
  • Standby Function: Stops all functions and lifts evaporator flask out of the heating bath
  • Design: Ergonomically optimized heating bath handles; grease-free operation with innovative sealing technology
  • Adjustability: Immersion depth up to 155 mm; tilt angle from 20° to 80°
  • Ventilation Cap: PTFE inlet, free of ground joints; optionally available with replenishment valve
  • Optional Accessories: Cable extension and detachable control panel for use outside closed fume hoods
  • Compatibility: UK-Plug for UK electrical systems

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-l receiving flask
  • 1-l evaporating flask
  • Supplied condenser as indicated

This Heidolph Rotary Evaporator is an essential tool for laboratories seeking a reliable, automated solution for high-efficiency evaporation and distillation processes.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675₹259,471.38
20 l+90 °C569-00610-009.812 665₹212,580.54

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
3000 ml41104800514-76300-007.047 224₹61,953.54
2000 ml41104800514-75000-007.047 223₹37,591.26
250 ml41104800514-72000-007.047 221₹22,004.64
500 ml41104800514-73000-007.047 222₹23,969.34
5000 ml41104800514-78000-007.626 949₹101,640.48
100 ml41104800514-71000-007.047 220₹20,170.92
50 ml41104800514-70000-006.206 660₹32,221.08
1000 ml41104800514-74000-007.047 172₹28,684.62

Compare similar models

Rotary Evaporator Hei-VAP Core ML G1B-UK motor lift (UK-Plug)

Manufacturer P/N

572-01110-03

Part Number

4.666 122

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G1-UK motor lift (UK-Plug)

Manufacturer P/N

572-01100-03

Part Number

4.666 117

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G1B motor lift (EU-Plug)

Manufacturer P/N

572-01110-00

Part Number

4.666 100

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G1-CH motor lift (CH-Plug)

Manufacturer P/N

572-01100-04

Part Number

4.666 137

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G1B-CH motor lift (CH-Plug)

Manufacturer P/N

572-01110-04

Part Number

4.666 142

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G1 hand lift (EU-Plug)

Manufacturer P/N

572-01100-00

Part Number

4.666 095

Manufacturer

Heidolph

Glassware

Without coating
