Representative Image

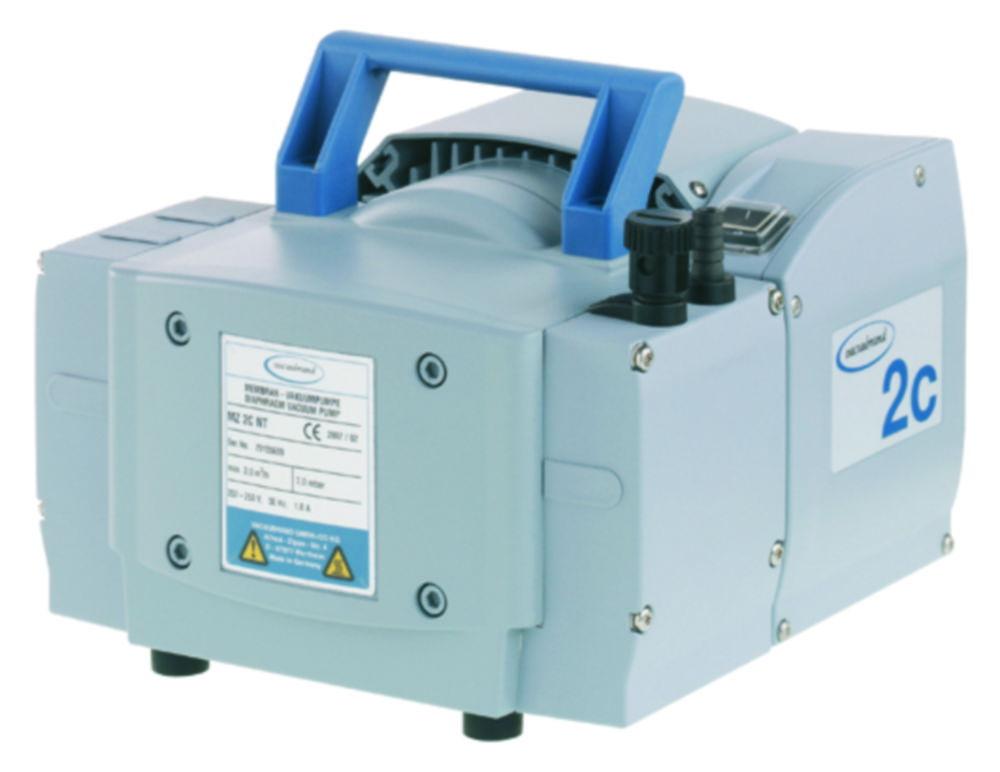

Vacuubrand Chemistry Diaphragm Pump MZ 2C NT, Two-Stage, 230 V, 50 Hz, CEE Plug

Plug type

Specifications

Compare models
Depth
243 mm
Dimensions (WxDxH)
243 x 243 x 198 mm
Flow rate
2.0 m³/h
Height
198 mm
No. of stages
2
Plug type
EU
Type
MZ 2C NT
Ultimate vacuum
7 mbar
Ultimate vacuum with gas ballast
12 mbar
UNSPSC
40151502

Alternative in-stock items

₹433,412.82

Inc. GST

Available soon

Product description

The Vacuubrand MZ 2C NT is a robust, oil-free, two-stage diaphragm vacuum pump designed for efficient and reliable laboratory applications involving corrosive gases and vapors. Operating at 230 V with a CEE plug, it offers a maximum pumping speed of 2.0 m³/h and achieves an ultimate vacuum of 7 mbar (5 torr). Its chemically resistant construction ensures durability and longevity in various laboratory environments.

Key Features:

  • Brand: Vacuubrand
  • Model: MZ 2C NT
  • Voltage/Frequency: 230 V / 50 Hz
  • Maximum Pumping Speed: 2.0 m³/h
  • Ultimate Vacuum: 7 mbar (5 torr)
  • Ultimate Vacuum with Gas Ballast: 12 mbar (9 torr)
  • Number of Stages: 2
  • Number of Heads: 2
  • Inlet/Outlet Connection: Hose nozzle DN 8–10 mm
  • Rated Motor Power: 0.18 kW
  • Rated Motor Speed: 1500 min⁻¹ (50 Hz)
  • Protection Class: IP 40 (IEC 60529)
  • Dimensions (L x W x H): 243 x 243 x 198 mm
  • Weight: 11.1 kg
  • Noise Level: 45 dBA
  • Ambient Temperature Range (Operation): 10°C to 40°C
  • Ambient Temperature Range (Storage): -10°C to 60°C
  • Max. Back Pressure (abs.): 1.1 bar
  • Certifications: NRTL certified
  • ATEX Conformity: II 3G IIC T3 X Internal Atm. only

This pump is ideal for applications such as vacuum filtration, rotary evaporation, and degassing in chemical laboratories, offering maintenance-free operation with high chemical resistance.

Downloads

Accessories

Sealing kit NT for chemistry diaphragm pumps NT

ProductForUNSPSCMfr#Part#AvailabilityPrice
MZ 2C NT40151502206968696.241 476₹60,643.74
MD 4C NT40151502206968706.239 489₹115,655.34
ME 4 NT, MZ 2 NT40151502206968609.880 902₹30,518.34
ME 4C NT40151502206968649.880 906₹35,233.62
MZ 2D NT40151502206968639.880 904₹30,518.34
MV 2 NT / MD 4 NT40151502206968619.880 905₹58,548.06
ME 8 NT40151502206968629.880 903₹48,331.62
ME 8C NT40151502206968679.880 907₹68,502.54

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081₹16,503.48
PVC34.9 mm206860634.714 084₹45,450.06
PVC38.1 mm206860654.714 085₹53,046.90
PVC15.9 mm206860614.714 082₹19,254.06
PVC22.3 mm206860624.714 083₹23,052.48

Compare similar models

Chemistry diaphragm pump MZ 2C NT two-stage, 230 V~ 50 Hz plug CEE

Manufacturer P/N

20732300

Part Number

9.880 898

Manufacturer

VACUUBRAND​

Plug type

EU

Chemistry diaphragm pump MZ 2C NT two-stage, 230 V~ 50 Hz plug CH

Manufacturer P/N

20732301

Part Number

9.880 899

Manufacturer

VACUUBRAND​

Plug type

CH

Chemistry membrane pump MZ 2C NT two-step, 230 V~ 50 Hz plug UK

Manufacturer P/N

20732302

Part Number

6.267 265

Manufacturer

VACUUBRAND​

Plug type

UK

Chemistry diaphragm pump MZ 2C NT two stage, certification (NRTL): C/US, 100-115 V / 50-60 Hz, 120 V/60 Hz, US mains cable

Manufacturer P/N

20732303

Part Number

4.670 434

Manufacturer

VACUUBRAND​

Plug type

US

More items to explore

Diaphragm pumps chemistry design, ME 1C

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUME 1C207211009.880 934In stock₹185,467.68
UKME 1C207211029.880 936₹185,467.68
CHME 1C207211019.880 935₹185,467.68
USME 1C207211039.880 937₹185,467.68

Diaphragm vacuum pumps, chemistry design, MZ 2C VARIO select

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUMZ 2C VARIO select207324504.670 437₹1,066,046.22
CHMZ 2C VARIO select207324514.670 438₹1,066,046.22
USMZ 2C VARIO select207324534.670 439₹1,066,046.22

Frequently asked questions

It is a robust, oil-free, two-stage diaphragm vacuum pump designed for efficient and reliable laboratory applications involving corrosive gases and vapors. Operating at 230 V with a CEE plug, it offers a maximum pumping speed of 2.0 m³/h and achieves an ultimate vacuum of 7 mbar (5 torr). Its chemically resistant construction ensures durability and longevity in various laboratory environments.
