Representative Image

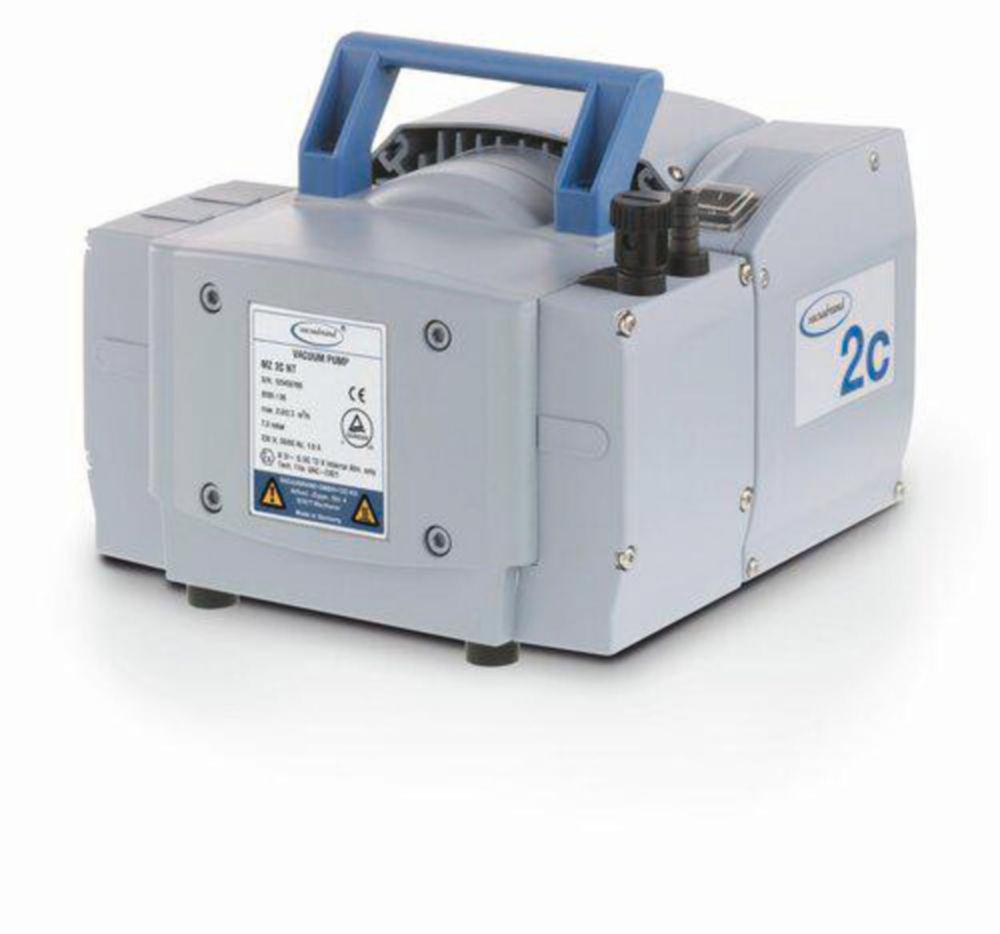

Vacuubrand Chemistry Membrane Pump MZ 2C NT, Two-Stage, 230 V, 50 Hz with UK Plug

Plug type

Specifications

Compare models
Depth
243 mm
Dimensions (WxDxH)
243 x 243 x 198 mm
Flow rate
2.0 m³/h
Height
198 mm
No. of stages
2
Plug type
UK
Type
MZ 2C NT
Ultimate vacuum
7 mbar
Ultimate vacuum with gas ballast
12 mbar
UNSPSC
40151502

Alternative in-stock items

₹433,412.82

Inc. GST

Available soon

Product description

The Vacuubrand MZ 2C NT is a robust, oil-free, two-stage diaphragm pump designed for the continuous evacuation and pumping of corrosive gases and vapors. Operating at 230 V and 50 Hz, this pump delivers a maximum pumping speed of 2.0 m³/h and achieves an ultimate vacuum of 7 mbar. Equipped with a UK plug, it ensures compatibility with UK power systems.

Key Features:

  • Brand: Vacuubrand
  • Type: Chemistry membrane pump
  • Design: Two-stage, two-head diaphragm pump for efficient vacuum generation
  • Voltage: 230 V, 50 Hz
  • Plug Type: UK plug for compatibility with UK systems
  • Maximum Pumping Speed: 2.0 m³/h at 50 Hz
  • Ultimate Vacuum: 7 mbar
  • Ultimate Vacuum with Gas Ballast: 12 mbar
  • Noise Level: Approximately 45 dBA
  • Weight: 11.1 kg
  • Applications: Rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar applications

The MZ 2C NT features chemically resistant fluoroplastics for all internal parts in contact with pumped media, ensuring durability and longevity. Its well-proven PTFE sandwich diaphragms provide increased reliability and extended operating life. The pump operates quietly with low vibration, making it an excellent choice for various laboratory applications.

Downloads

Accessories

Sealing kit NT for chemistry diaphragm pumps NT

ProductForUNSPSCMfr#Part#AvailabilityPrice
MZ 2C NT40151502206968696.241 476₹60,643.74
MD 4C NT40151502206968706.239 489₹115,655.34
ME 4 NT, MZ 2 NT40151502206968609.880 902₹30,518.34
ME 4C NT40151502206968649.880 906₹35,233.62
MZ 2D NT40151502206968639.880 904₹30,518.34
MV 2 NT / MD 4 NT40151502206968619.880 905₹58,548.06
ME 8 NT40151502206968629.880 903₹48,331.62
ME 8C NT40151502206968679.880 907₹68,502.54

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081₹16,503.48
PVC34.9 mm206860634.714 084₹45,450.06
PVC38.1 mm206860654.714 085₹53,046.90
PVC15.9 mm206860614.714 082₹19,254.06
PVC22.3 mm206860624.714 083₹23,052.48

Compare similar models

Chemistry membrane pump MZ 2C NT two-step, 230 V~ 50 Hz plug UK

Manufacturer P/N

20732302

Part Number

6.267 265

Manufacturer

VACUUBRAND​

Plug type

UK

Chemistry diaphragm pump MZ 2C NT two-stage, 230 V~ 50 Hz plug CEE

Manufacturer P/N

20732300

Part Number

9.880 898

Manufacturer

VACUUBRAND​

Plug type

EU

Chemistry diaphragm pump MZ 2C NT two-stage, 230 V~ 50 Hz plug CH

Manufacturer P/N

20732301

Part Number

9.880 899

Manufacturer

VACUUBRAND​

Plug type

CH

Chemistry diaphragm pump MZ 2C NT two stage, certification (NRTL): C/US, 100-115 V / 50-60 Hz, 120 V/60 Hz, US mains cable

Manufacturer P/N

20732303

Part Number

4.670 434

Manufacturer

VACUUBRAND​

Plug type

US

More items to explore

Diaphragm pumps chemistry design, ME 1C

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUME 1C207211009.880 934In stock₹185,467.68
UKME 1C207211029.880 936₹185,467.68
CHME 1C207211019.880 935₹185,467.68
USME 1C207211039.880 937₹185,467.68

Diaphragm vacuum pumps, chemistry design, MZ 2C VARIO select

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUMZ 2C VARIO select207324504.670 437₹1,066,046.22
CHMZ 2C VARIO select207324514.670 438₹1,066,046.22
USMZ 2C VARIO select207324534.670 439₹1,066,046.22

Frequently asked questions

It is a robust, oil-free, two-stage diaphragm pump designed for the continuous evacuation and pumping of corrosive gases and vapors. Operating at 230 V and 50 Hz, this pump delivers a maximum pumping speed of 2.0 m³/h and achieves an ultimate vacuum of 7 mbar. Equipped with a UK plug, it ensures compatibility with UK power systems.
